Unitron PrisMET Brightfield / Darkfield Metallurgical Microscope

Name: Unitron PrisMET Brightfield / Darkfield Metallurgical Microscope
Brand: Unitron
SKU: 14500
Price: 9895.0 USD
Availability: InStock

|

SKU: 14500

$9,895.00

~~$10,995.00~~ $9,895.00

Sale Sold out

Add A Camera

Qty

Reflected & Transmitted Illumination
Plan S-APO 5x 10x, 20x, 50x Objectives
Optional 100x Objective
Optional DIC
5 Year Mechanical & Electrical Warranty

Add A Camera

Product variants

Unitron PrisMET Brightfield / Darkfield Metallurgical Microscope

Got Questions? Why Choose Us? View full details

Choose Your C-Mount

Which C-Mount Should You Choose?

Please Select The Options Where Applicable

Camera & Video Adapers for Unitron Exa...

$110.00 $123.00

Title

1x C-Mount
0.65x C-Mount
0.50x C-Mount
0.35x C-Mount
Photo Tube

Choose Your Camera

Select

Accu-Scope Excelis EC50 5.0 M.P. Microscop...

$342.00 $381.00

5.0 Mega Pixels
USB Output
Sony STARVIS IMX335 Sensor
Advanced PC Software Features

Select

Accu-Scope Excelis Lite HDMI / USB Microsc...

$663.00 $737.00

5.0 M.P.
USB & HDMI Output
Up To 30FPS - HDMI Mode
Up To 15FPS - USB Mode
Optimal With 0.35x C-Mount

Select

VIEW4K High Definition 4K HDMI, WiFi, USB ...

$1,600.00 $2,000.00

4K High Resolution Camera
Up To 60FPS - HDMI Mode
Up to 30FPS - USB Mode
Measurements, Stitching, Time-Lapse, Extended Depth Of Focus
Add To Any Microscope

Description

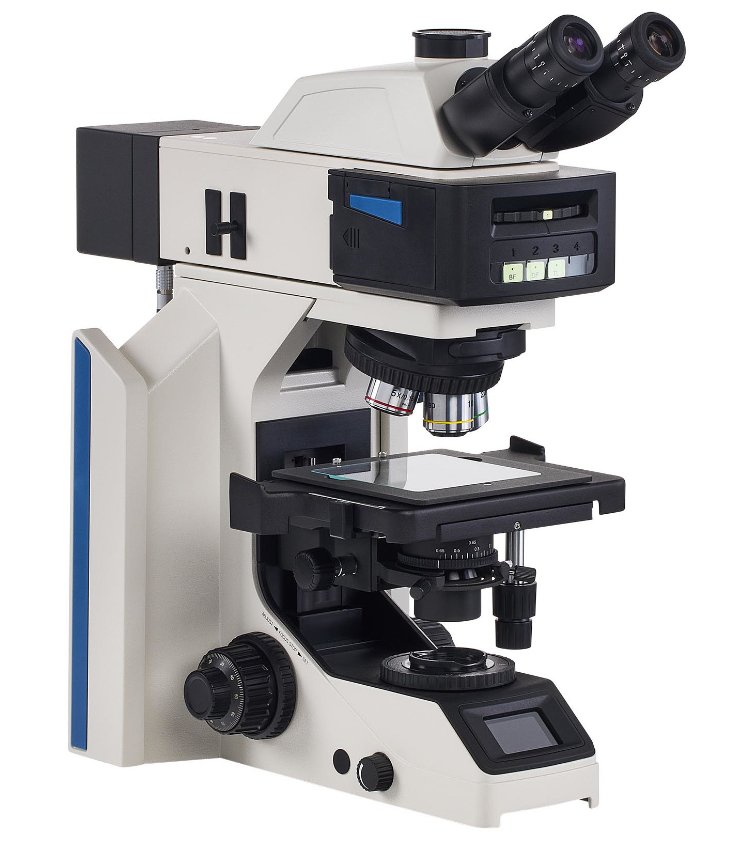

The new Unitron PrisMET upright metallurgical microscope is designed for demanding materials science and metallurgical applications. It is ideal to examine metals, alloys, coatings, engineered surfaces, wafers, and more. The microscope comes with brightfield / darkfiled illumination, with the ability to upgrade to DIC. The microscope comes standard with a trinocular viewing head allowing you to add a camera at anytime. The 10x eyepieces provide a 22mm field of view. The reflected light illuminator allows for brightfield, darkfield, oblique illumination and wth additional parts you can observe in polarized light as well as DIC. The quintupile coded nosepiece allows comes standard with Infinity semi-APO 5x, 10x, 20x, and 50x objectives. If higher magnification is required a 100x objective can be added. The XY mechanical stage has a galss insert and has a 74mm X and a 50mm Y travel range. The abbe condenser for transmitted light has an N.A. of 0.65. The microscope has a front LCD display which displays the objective that is in polace as well as the light intensity and color temperature. A 3-watt variabe S-LED illuminator powers both the transmitted, and reflected light illuminators.

Specifications
Head:	Trinocular viewing head, inclined 30°; 2-position light path selection 100/0 or 0/100
Eyepieces:	Widefield 10x eyepieces with a 22mm FOV
Nosepiece:	Coded 5 position
Objectives:	Infinity semi-APO 5x, 10x, 20x, 50x BF / DF
Stage:	Double-layer rackless mechanical stage with glass insert. 74mm X Travel, 50mm Y Travel
Condenser:	Abbe 0.65
Illumination:	3-watt variable S-LED reflected illuminator with field and aperture diaphragm and adjustable color temperature and Light Intensity Managemen 3-watt variable S-LED transmitted illumination with adjustable color temperature and Light Intensity Management
Accessories:	Dust Cover, Power Cord
Warranty:	5 Year Mechanical & 1 Year Electrical

Accessories

C-Mounts

Eyepieces

Reticles

Objectives

Please Contact Us for all additional parts and accessories
