Unitron microFOCUS 4K Autofocus Digital Inspection System On Ball-Bearing Boom Stand

Name: Unitron microFOCUS 4K Autofocus Digital Inspection System On Ball-Bearing Boom Stand
Brand: Unitron
SKU: 21006
Price: 2345.0 USD
Availability: InStock

|

SKU: 21006

$2,345.00

~~$2,606.00~~ $2,345.00

Sale Sold out

Qty

Full 4K live images with 1x - 18x optical zoom
Built-In Software Image Software In HDMI Mode
Capture, Calibration, Measurement, & More
Live Measurements & Annotations
30 FPS Video Rate

Product variants

Unitron microFOCUS 4K Autofocus Digital Inspection System On Ball-Bearing Boom Stand

Got Questions? Why Choose Us? View full details

Description

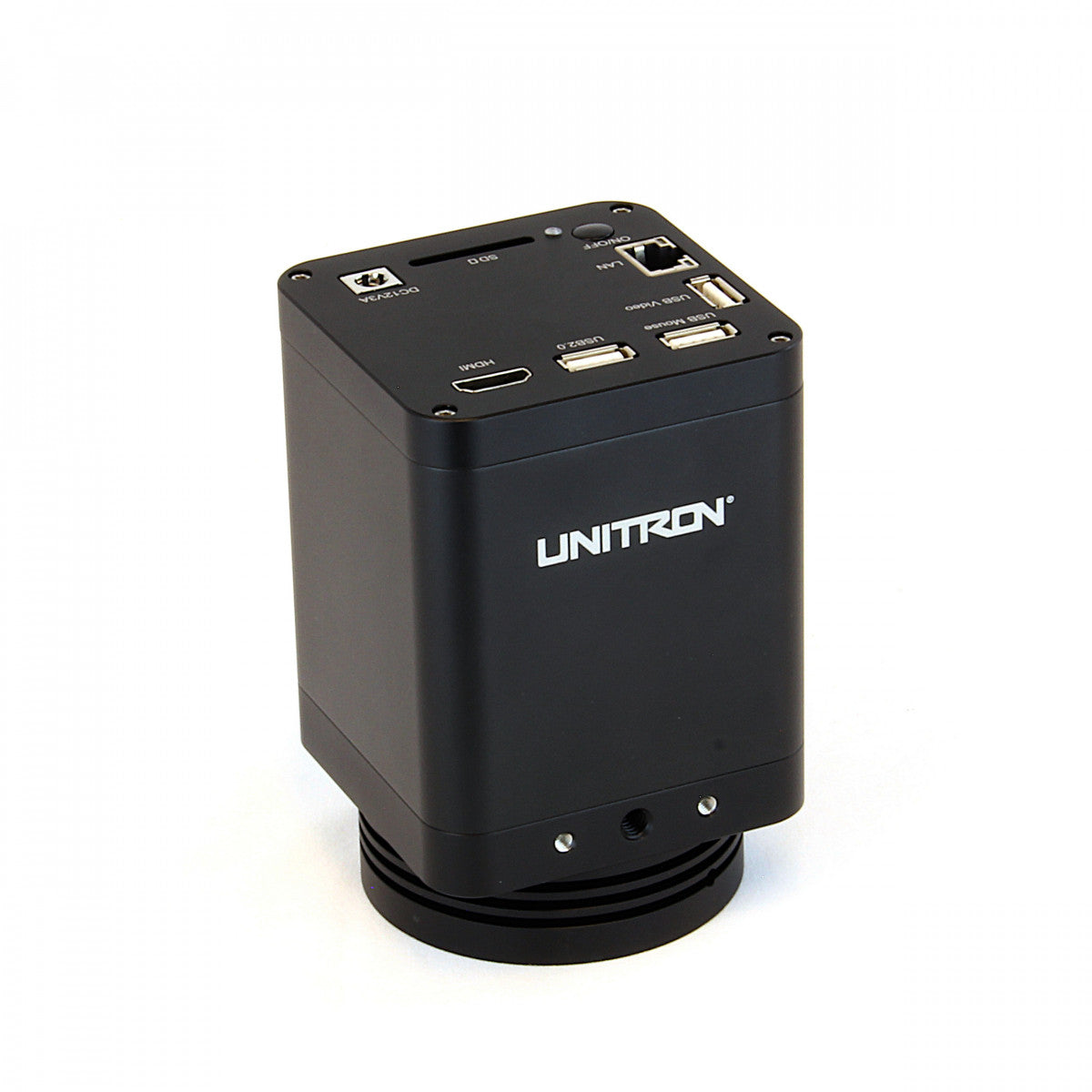

The NEW microFOCUS 4K autofocus digital inspection microscope from UNITRON features built-in software for operation without the need for a PC, and includes robust features for image capture and processing, calibration, measurement, and illumination control of the included LED ring light.

Actual magnification is displayed right on the monitor. Experience outstanding full 4K image quality with no image lag. The microFOCUS 4K is the perfect solution for streamlining your inspection process.

Full 4K live images with 1x - 18x optical zoom

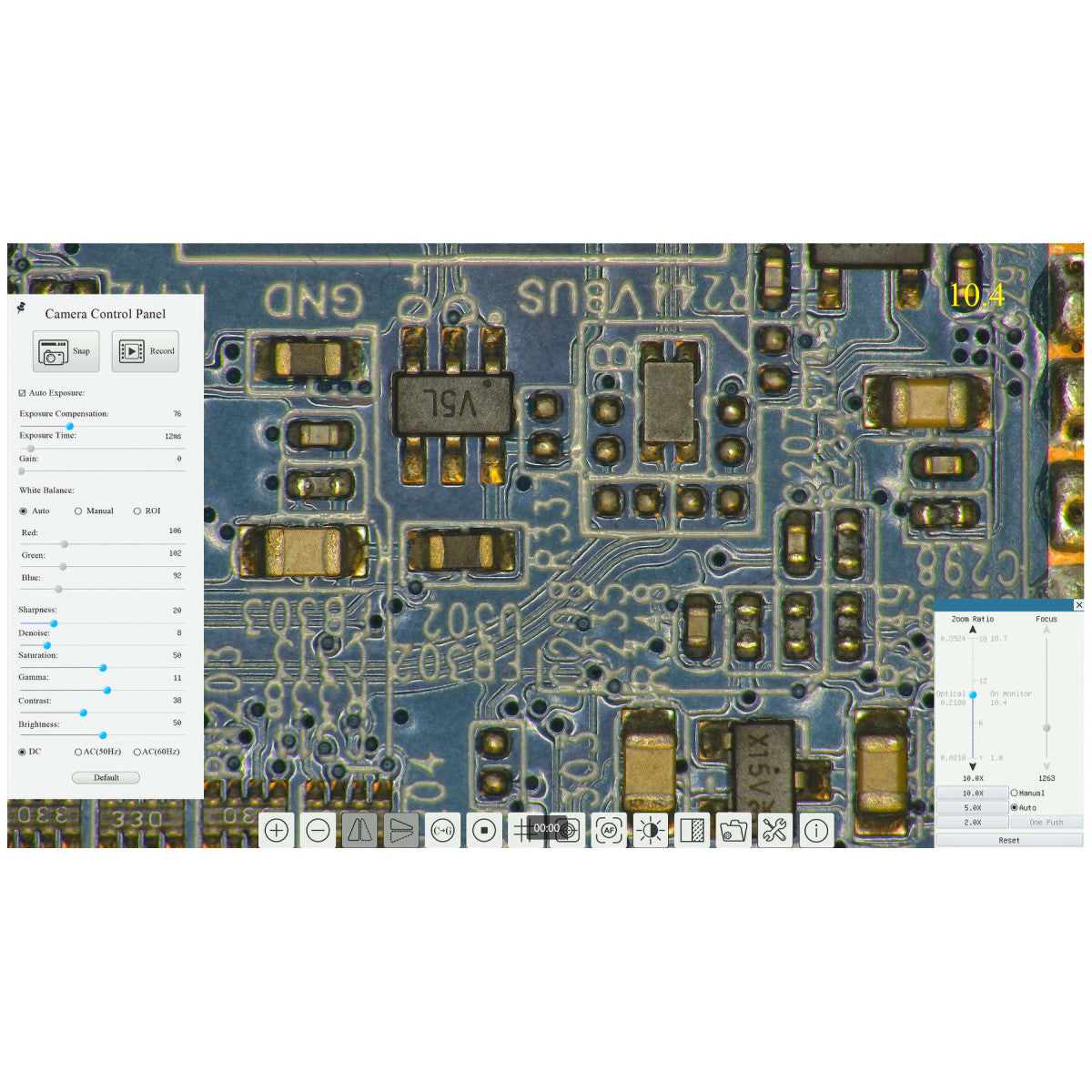

Built-in software for image capture, processing, calibration, measurement and more!

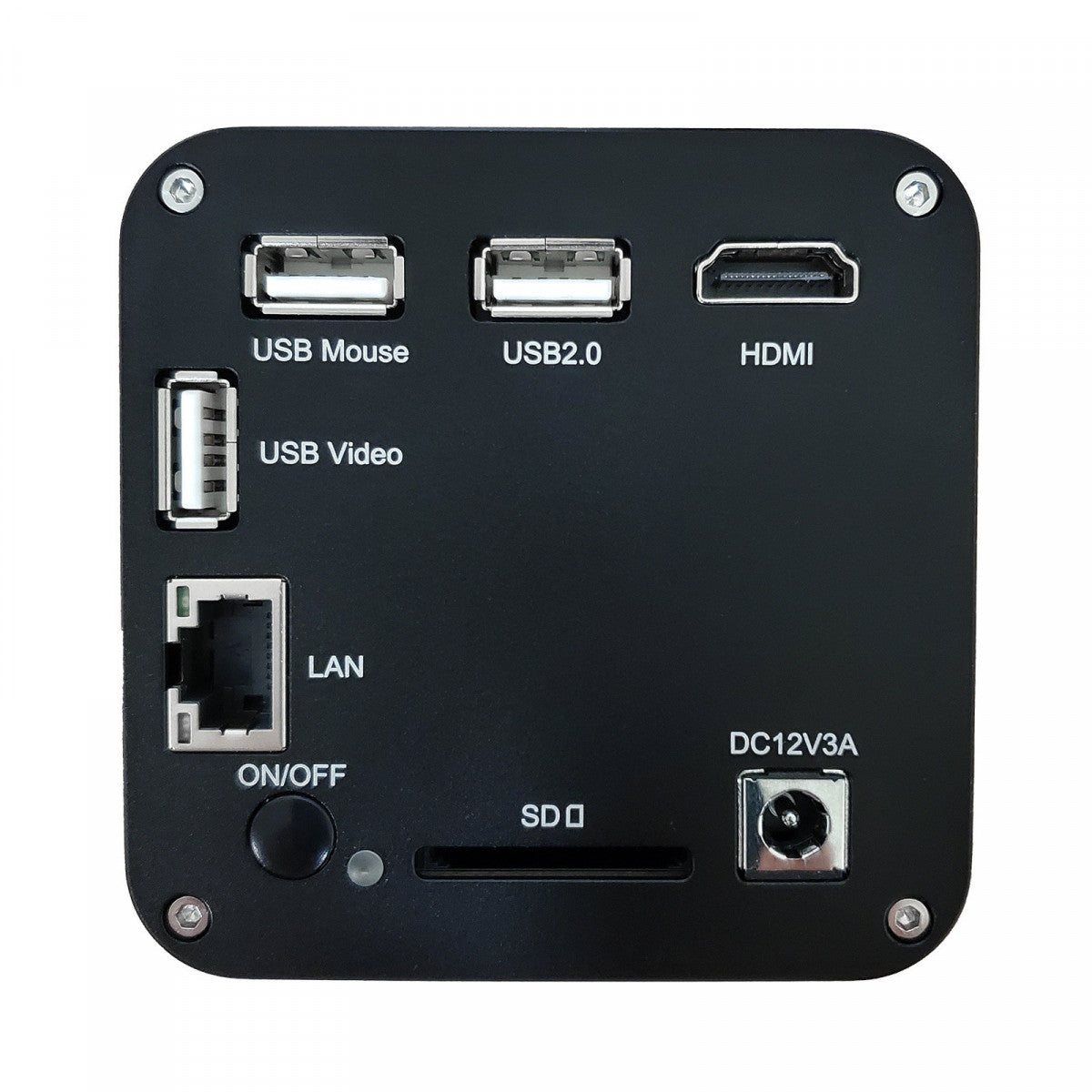

Ports for wireless USB mouse (controls built-in software), HDMI for live video streaming, save images to SD card or USB flash drive, data transfer via USB Video port or LAN Ethernet connection.
Live measurement and annotation tools
Flexibility to save images, video and measurements to a USB flash drive or SD card
Compare live with saved images using the split screen function
Review saved images and video in the gallery
Eliminate bench clutter with the wireless mouse and integrated LED ring light
4K/1080p auto-switching to accommodate monitor resolution

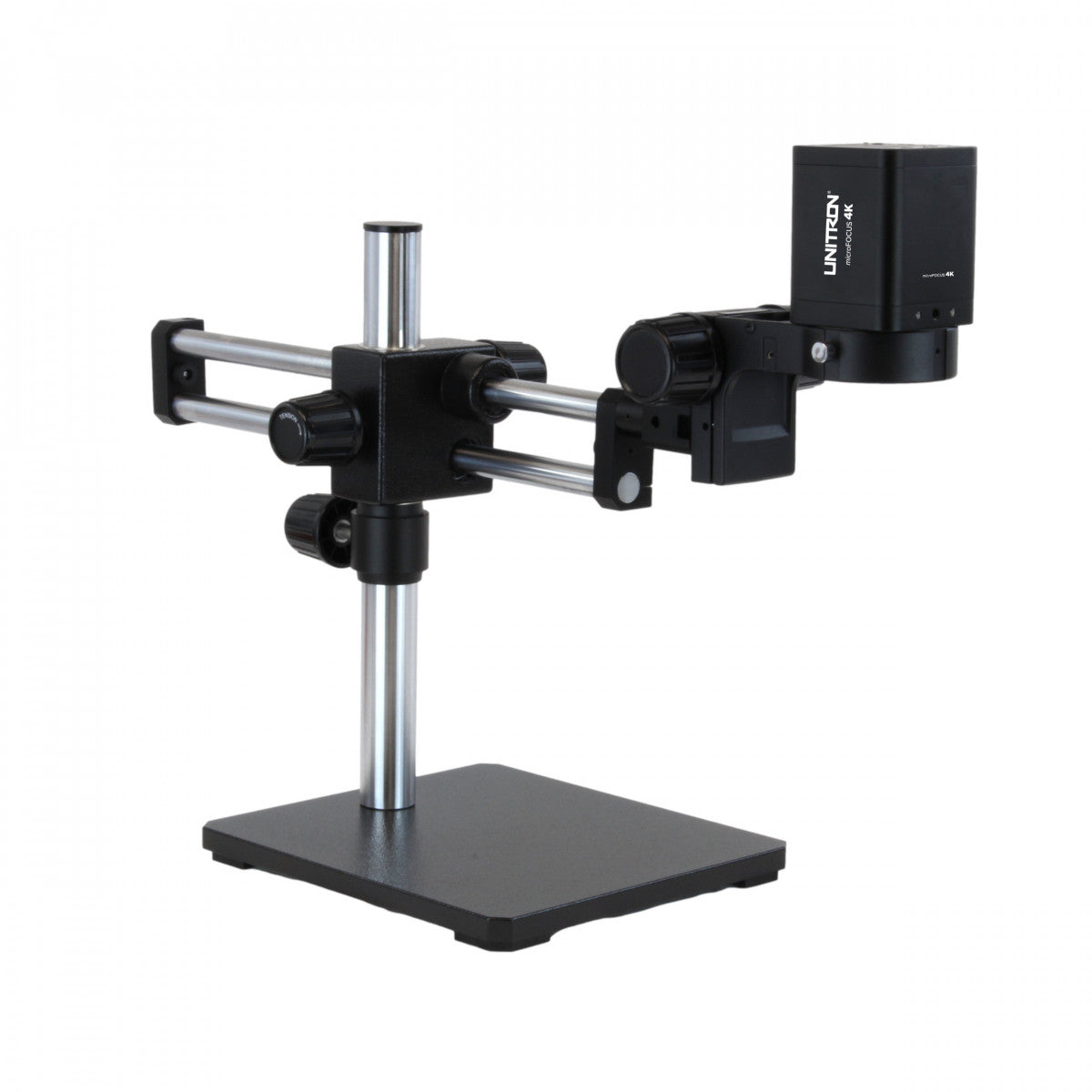

Ball-bearing boom stand with bonder arm included
Ø76mm mounting ring (OD of LED ring light) allows easy mounting to boom, pole or flex arm stands with standard focus mounts. Other mounting options are available via 2 x M4 holes or single ¼-20 threaded hole for mounting to a copy stand, tripod, and more!
Use our AccuView or AccuView Lite PC software for expanded control and enhanced image processing and analysis (MacOS supports only AccuView Lite)

MICROSCOPE
Sensor	Sony IMX415 STARVIS CMOS, color
Sensor Size	1/2.8” (5.57mm x 3.13mm)
Pixel Size	1.45μm
Resolution	8MP (3840px x 2160px)
Frame Rate	30fps @ 3840x2160 (HDMI, Ethernet, USB)
Operating Environment	USB mouse: control built-in software USB 2.0: Image storage (USB flash drive) or data transfer to PC (requires AccuView/AccuView Lite) HDMI: Image streaming to monitor LAN: Data transfer via Ethernet connection (requires AccuView/AccuView Lite) SD Card: Image storage (not included)
Stand	Bal-bearing boom stand, bonder arm, Vertical post 15.5", Horizontal arm 23", Safety collar
Monitor	User-supplied 4K or HD monitor; Optional 13.3” attachable 4K monitor, or user-supplied HDMI monitor
Power	DC12V3A (power adapter included; UL/CE/FCC)

OPTICAL
Working Distance	250mm
Depth of Field	205mm - 255mm
Zoom Range	1x – 18x
Field of View (FOV)	1x: 255mm x 145mm 18x: 14.2mm x 8mm
Resolution	160 lp/mm

BUILT-IN SOFTWARE
User Interface	Control with USB mouse (included)
Image Capture	8MP (3840x2160), JPG or TIF, save to SD card or USB flash drive
Video Record	8MP (3840x2160), 30fps, H264/H265 encoded MP4, save to SD card or USB flash drive
Camera Control Menu	Includes: Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness
Measurement Tools	Includes: Calibration, Measurement, Measurement Parameter Export
Synthesis Controls	Includes: Zoom, Flip, Freeze, Crosshair, LED Control, Autofocus, Comparison, Browser, Setting, Version info
Autofocus Controls	Includes: Zoom, Autofocus, One Push, Manual Focus, Reset

AccuView PC SOFTWARE ENVIRONMENT (LAN/WLAN/USB Video output)
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control	Windows: AccuView macOS: AccuView Lite
Data Recording	Still image or video
Operating System	Windows 7/8/8.1/10 (32bit & 64bit) (AccuView) macOS X (AccuView Lite only)
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or higher Memory: 4GB or more Ethernet Port: RJ45 (for LAN connection) Display: 19" or larger

Brochure

Unitron microFOCUS Brochure
