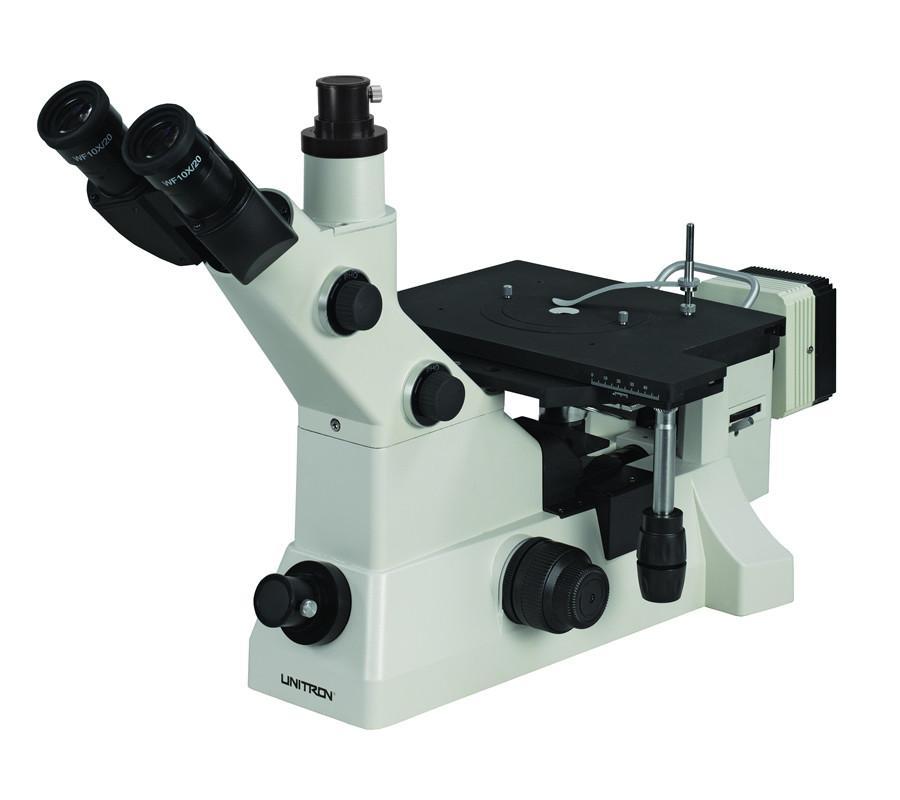

Unitron MEC3 Inverted Metallurgical Microscope
Unitron MEC3 Inverted Metallurgical Microscope

Unitron MEC3 Inverted Metallurgical Microscope

Available: In Stock
Wishlist
  • Product SKU: 14701
$3,800.00 $4,347.00
Request Quote

The new Unitron MEC3 Inverted Metallurgical Microscope replaces the popular Unitron MEC2. The MEC3 maintains the same quality optically and mechanically while providing a new modern design. The Unitron MEC3 comes standard with trincocualr head as well as a photo port for ultimate flexibility. The new compact design makes this scope easy to use while saving space in the lab or out on the floor. The LWD plan achromat objectives provide crisp and clear images.

Specifications
Head: Trinocular 45° inclined viewing head with 48-75mm interpupillary adjustment; 180° rotatable eyepoint adjustment
Eyepieces: WF10x/20mm focusing eyepieces with rubber eyeguards
Pol/Analyzer Simple polarizer/analyzer w/ integrated blue, yellow, and ground glass filters
Objectives:

NIS LWD M infinity plan achromat 5x, 10x, 20x and 50x objectives

***Optional 100x dry objective available***

Nosepiece: Quintuple revolving nosepiece
Stage: Integrated double layer mechanical stage: 226 x 178mm; travel range: 40mm (X) 40mm (Y) with Ø20mm and Ø30mm aperture teardrop stage insert plates
Focusing: Vertical action movement revolving nosepiece (fixed stage); coaxial coarse and fine adjustment
Photo Port:

Dual imaging ports - Bottom Port: 100% Binoc or 80% Binoc / 20% Camera port. Top Port: 0% Binoc. / 100% Camera port

Illuminator: 10 watt variable LED illuminator with lamp centering mechanism, built-in lever type condenser and aperture diaphragm with rotatable filter slot for blue, yellow, green and frosted filters
Accessories: Dust Cover, Power Cord, Manual, Universal Power Supply
Warranty: 5 Year Mechanical 1 Year Electrical
