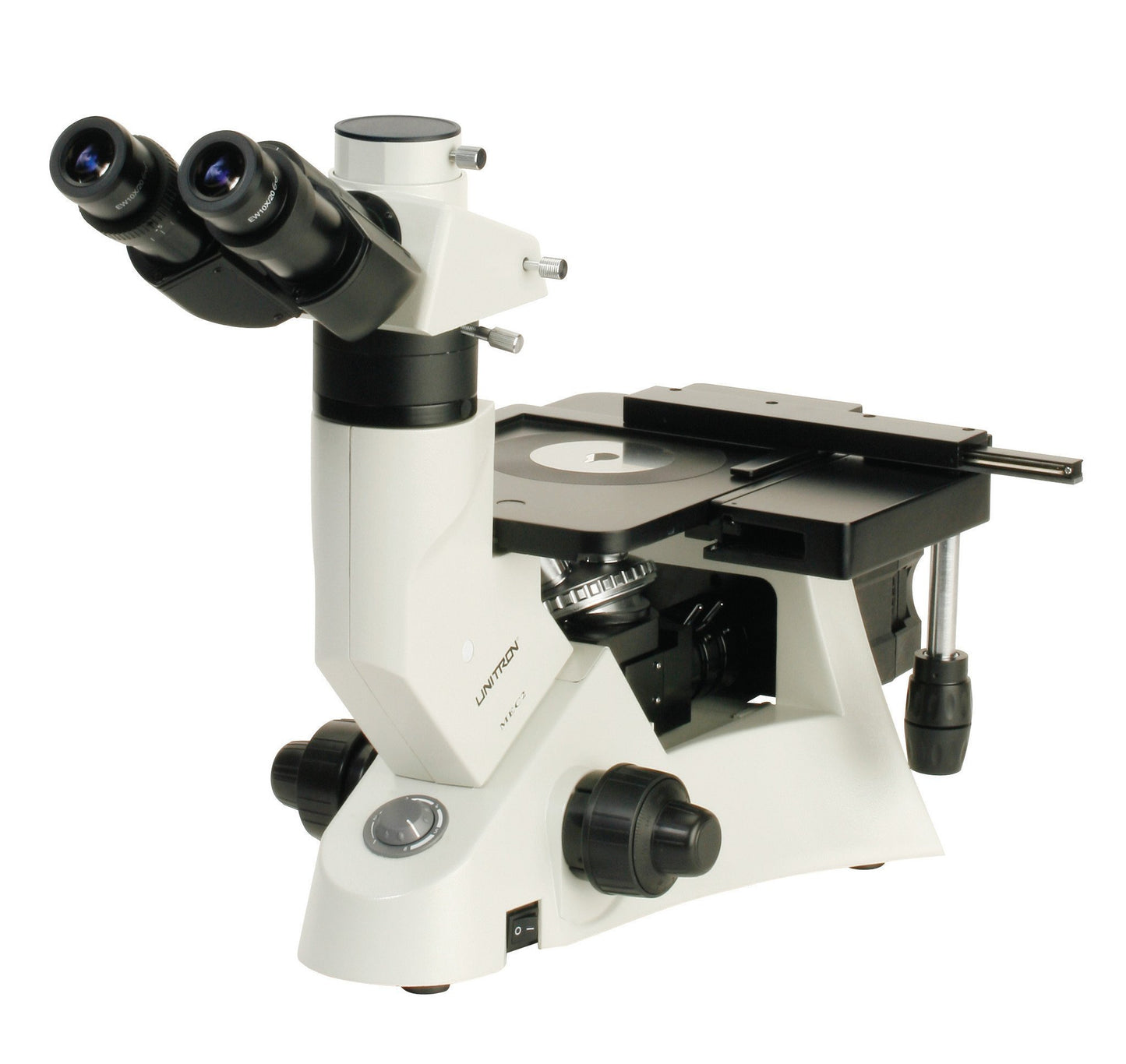

Unitron MEC2 Metallurgical Digital Microscope Package
- Order within
The Unitron MEC2 is an inverted metallurgical microscope for brightfield and simple polarization applications. The MEC2’s compact, ergonomic, rugged design makes it easy to use in any environment for the observation of metallurgical samples, electronic components and metal parts. Choose between the Excelis AU-600-HD camera or the Excelis AU-600-HDS w/ 11.6" HD screen! This package uses the hi-resolution c-mount!
Specifications | |
---|---|
Head: | Siedentopf trinocular viewing head, inclined at 30º, interpupillary distance adjustment 48-75mm. Light distribution is 100% to the binocular or for photomicrography 20% to binocular and 80% to the photo tube |
Eyepieces: | EWF10x focusing eyepieces with eyeguards, 20mm field of view |
Nosepiece: | Quintuple nosepiece |
Objectives: | Infinity Plan Achromat 5x, 10x, 20x & 50x objectives (Optional 40x, 80x, & 100x LWD Objectives Available) |
Stage: |
Plain stage 160mm X 250mm with Ø10, 15 and 25mm insert plates Attachable mechanical stage with forward position coaxial, tension adjustable controls, 120 (X) x 78 (Y) mm travel with Ø10, 15 and 25mm stage plates |
Polarization: | Polarizer and Analyzer |
Illumination: | Koehler vertical illuminator (built-in) with 6v30w centrable halogen lamp, aperture diaphragm, field diaphragm and filter slots |
Filters: | Daylight blue, green, yellow and ground glass |
Focusing: | Coaxial coarse and fine vertical focusing adjustment of objective assembly |
Accessories: | Photo tube, power cord, dust cover and instruction manual |
Warranty: | 5 Year Mechanical & 1 Year Electrical |
Excelis AU-600-HD Specifications | |
---|---|
Resolution (Live): | 1920X1080 6 M.P. |
Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
Excelis With HD Monitor AU-600-HDS Specifications | |
---|---|
Screen: | 11.6 Inch HD Retina Display Screen |
Resolution (Live): | 1920X1080 6 M.P. |
Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
