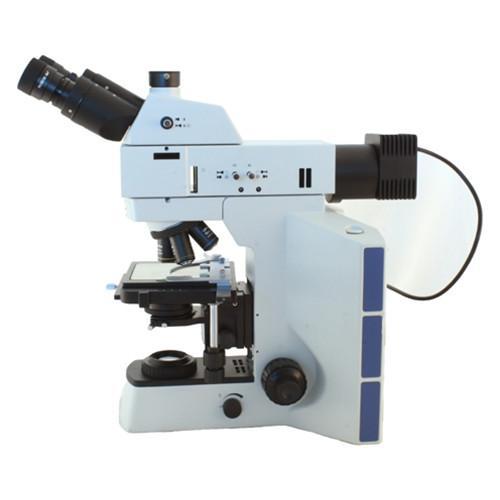

Unitron Examet-5 Metallurgical Microscope

Unitron Examet-5 Metallurgical Microscope

The new Unitron Examet-5 Metallurgical microscope is available in reflected and reflected & transmitted illumination. Suitable for specimens with a height up to 50mm. Specifications...

$3,620.00
Request Quote
Add to wishlist

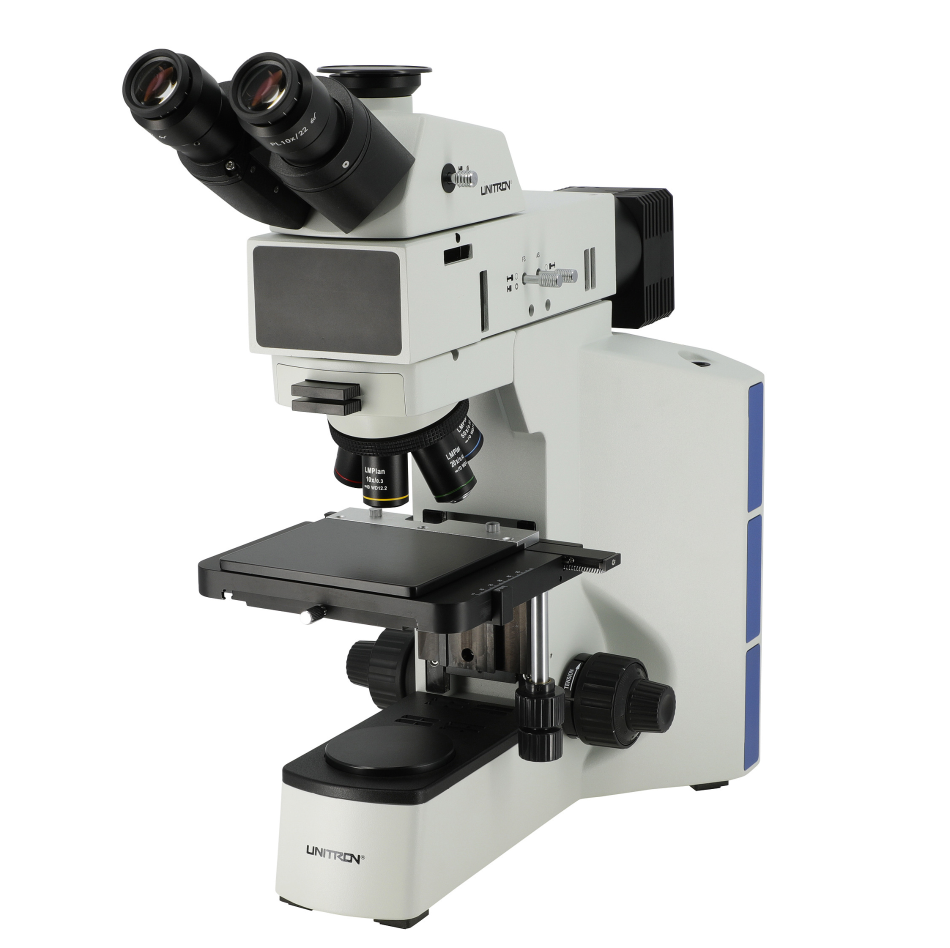

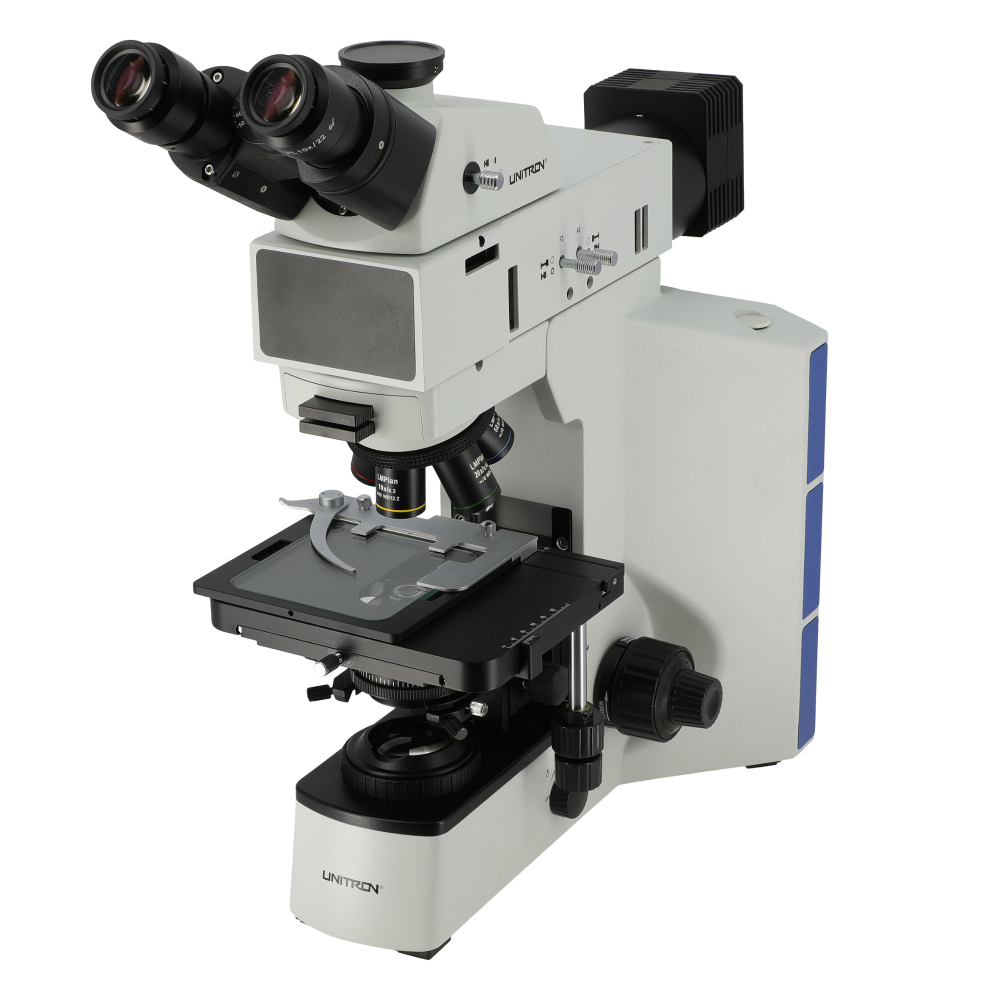

The new Unitron Examet-5 Metallurgical microscope is available in reflected and reflected & transmitted illumination. Suitable for specimens with a height up to 50mm.

Specifications
Head: Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular/trinocular 20%/80%); inclined 30⁰ and rotatable 360⁰
Eyepieces: W.F. 10x/23mm with eyeguards
Nosepiece: Reversed quintuple
Objectives: Long working distance M infinity plan achromat 5x, 10x, 20x, & Semi-Plan Achromat 50x
Stage:

Mechanical stage 175mm x 145mm with a 76mm(X) x 43mm(Y) movement range

Adjustable to accommodate specimens with a height up to 50mm

Illumination:

5 watt variable LED reflected illuminator with field and aperture diaphragm - universal power supply

OR

5 watt variable LED reflected & transmitted illuminator with field and aperture diaphragm - universal power supply

Focusing: Low position coaxial Coarse & fine focusing system with tension adjustment
Accessories: Green, yellow, and neutral density filters
Warranty: 5 Year Mechanical & 1 Year Electrical

Accessories

Please Contact Us for all additional parts and accessories
