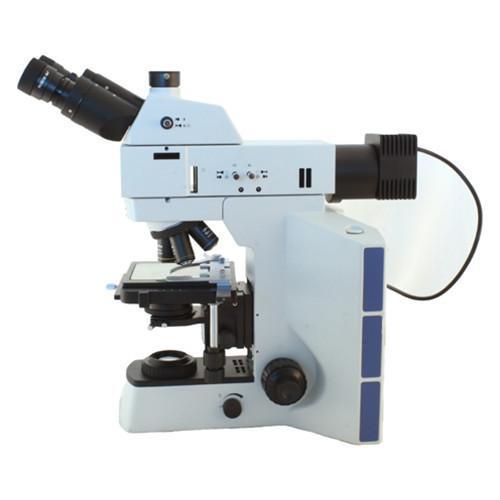

Unitron Examet-5 Digital Metallurgical Microscope Package
- SKU: EXAMET-5-R-300-HD
- Choose With or Without Screen
- Reflected & Transmitted Options
- High Performance Materials Microscope
- LED Illumination
The Unitron Examet-5 Digital Metallurgical microscope is high performance materials microscope complete with your choice of camera. It is offered in reflected or reflected & transmitted illumination. This upright metallurgical microscope can accommodate samples with a height of up to 50mm. The microscope comes with Plan Achromat 5x, 10x, 20x, and 50x Semi-Plan Apochromat objectives. The HD multi output camera allows for live HD display or USB to your computer.
This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and display a live image on a HD monitor to capture images/videos to the removable SD card.
Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS). The AU-600 camera options is a more advanced camera that allows for measurements in HDMI standalone mode.
Specifications | |
---|---|
Head: | Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular/trinocular 20%/80%); inclined 30⁰ and rotatable 360⁰ |
Eyepieces: | W.F. 10x/23mm with eyeguards |
Nosepiece: | Reversed quintuple |
Objectives: | Long working distance M infinity plan achromat 5x, 10x, 20x, & Semi-Plan Apo 50x |
Stage: |
Mechanical stage 175mm x 145mm with a 76mm(X) x 43mm(Y) movement range Adjustable to accommodate specimens with a height up to 50mm |
Illumination: |
5 watt variable LED reflected illuminator with field and aperture diaphragm - universal power supply OR 5 watt variable LED reflected & transmitted illuminator with field and aperture diaphragm - universal power supply |
Focusing: | Low position coaxial Coarse & fine focusing system with tension adjustment |
Accessories: | Dust Cover, Power Cord |
Warranty: | 5 Year Mechanical & 1 Year Electrical |
AU-300-HD Excelis Lite Specifications | |
---|---|
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-300-HDS Excelis Lite Specifications | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-600-HD Excelis Camera Specifications | |
---|---|
Mega Pixel | 6.0 M.P. |
Sensor: | SONY IMX236 |
Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
Live Resolution: | 1920 x 1080 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card |
USB 2.0: 1080p, 30fps to PC or Mac | |
Exposure Time: | 0.001sec—10.0 sec |
Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
Software Compatibility: | Windows XP, Vista, 7, and 8 (32 or 64 bit) |
Mac OSX (for image transfer to Mac OSX only) |
AU-600-HDS Excelis Camera Specifications | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920X1080 6 M.P. |
Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
