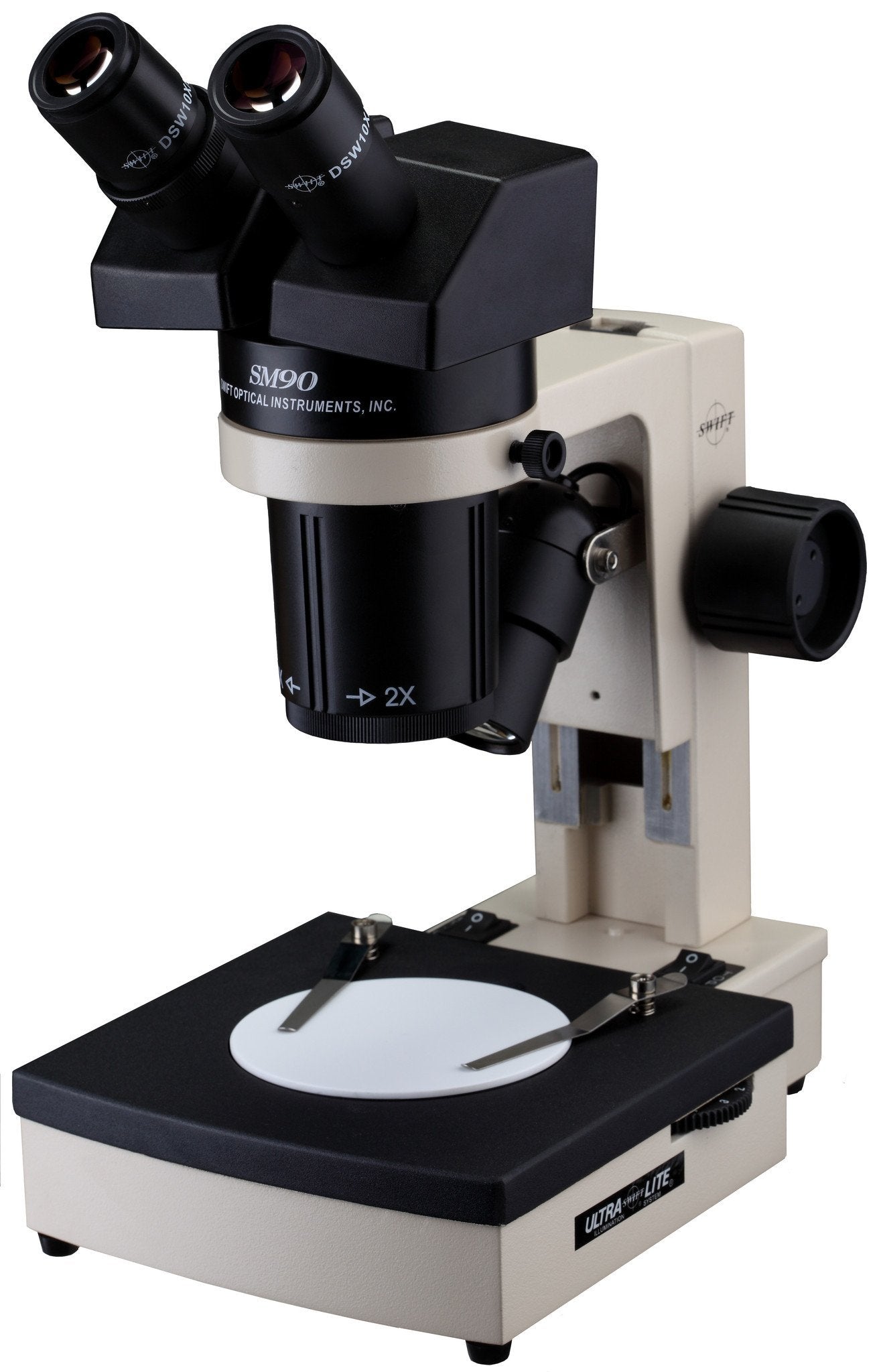

Swift SM90 Stereo Microscope Series

Swift SM90 Stereo Microscope Series

Available: In Stock
Wishlist
  • Product SKU: SM91-SM90CL
$560.00 $659.00
Request Quote
The flagship of the Swift stereo microscope line, the Swift SM90 Series provides maximum versatility for the classroom. This Swift SM90 microscope is ideal for high school classrooms and up. The modular design allows you to use the stereo stand with other Swift microscope modular heads. Built to withstand student use, this series comes with locked-on eyepieces, spring-loaded stage clips, slip-clutch focusing system and Swift microscope's unique C-wrench tool that allows teachers to control focusing tension. The Swift SM90 series also features LED illumination.
Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm
Viewing head rotates 360°, locks in place by tightening thumb screw

Model Number

 SM91 SM95 SM98
Objectives  1X, 2X  1X, 3X   2X, 4X
 Eyepieces  W10X, FN23   W10X, FN23  W10X, FN23
 Total Magnification/
Field of View
 10X / 23mm
20X / 11.5mm
10X / 23mm
30X / 7.67mm
20X / 11.5mm
40X / 5.75mm
Working Distance  80 mm 80mm  80mm
3W LED illumination provides bright, white light with virtually no heat
Corded microscope includes a cord-hanger for cord containment
Top light adjusts for optimal lighting angles and Variable transbase illumination allows user to control brightness
Rack and pinion focusing with slip clutch and tension adjustment
100mm reversible black/white plastic contrast plate and 100mm frosted glass stage plate.  Blue filter for transmitted light
Eyeguards and Dust cover included
Limited Lifetime Warranty
All additional parts and accessories are available.  Please contact us if interested
