Swift M3-F Series

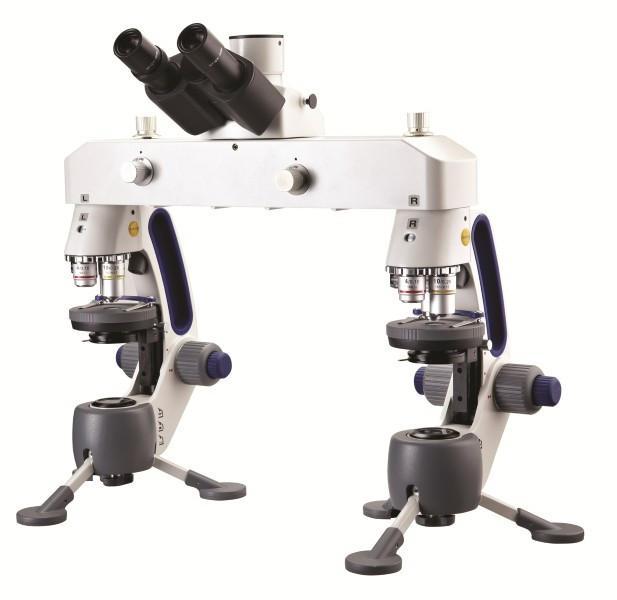

Swift M3-F Series

Available: In Stock
Wishlist
  • Product SKU: M3-F
$1,695.00 $1,950.00
Request Quote
Use the M3-F’s revolutionary technology to compare images in both micro and macro environments. The M3’s dedicated macro lens, with a large working distance, allows you to view not only bullets but also larger more bulky, evidence items. Swift’s powerful optical system allows for images to be seen either 100% from the left microscope, 100% from the right, side-by-side, or over lapping. The M3-F is probably the first and only comparison microscope at this price level that can achieve overlapping of images. With the optional C-mount adapter, you can easily attach any C-mount ready imaging device, including Motic cameras, for analysis with the Motic software provided. (Motic software included with the Moticam eyepiece cameras sold separately).
Widefield 10XD/18mm Eyepiece w/ pointer
Binocular viewing head with 45° inclined eyepiece
 Images can be seen 100% from the left microscope, 100% from the right microscope, side-by-side, or overlapping
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) achromat objectives, and 1X Macro objective
Circular stage with diameter of  4 in. (97mm).  Black and white stage disks, and specimen cup included
Stage plate with 0.65 condenser and sealed iris diaphragm
Coaxial coarse and fine focusing controls
Top and Bottom LED illumination rated for up to 50,000 hours of life provides bright, efficient, white light. Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours of use, charger included
Limited 3 year warranty
All additional parts and accessories are available.  Please contact us if interested
Use the M3-F’s revolutionary technology to compare images in both micro and macro environments. The M3’s dedicated macro lens, with a large working distance, allows you to view not only bullets but also larger more bulky, evidence items. Swift’s powerful optical system allows for images to be seen either 100% from the left microscope, 100% from the right, side-by-side, or over lapping. The M3-F is probably the first and only comparison microscope at this price level that can achieve overlapping of images. With the optional C-mount adapter, you can easily attach any C-mount ready imaging device, including Motic cameras, for analysis with the Motic software provided. (Motic software included with the Moticam eyepiece cameras sold separately).
Widefield 10XD/18mm Eyepiece w/ pointer
Binocular viewing head with 45° inclined eyepiece
 Images can be seen 100% from the left microscope, 100% from the right microscope, side-by-side, or overlapping
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) achromat objectives, and 1X Macro objective
Circular stage with diameter of  4 in. (97mm).  Black and white stage disks, and specimen cup included
Stage plate with 0.65 condenser and sealed iris diaphragm
Coaxial coarse and fine focusing controls
Top and Bottom LED illumination rated for up to 50,000 hours of life provides bright, efficient, white light. Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours of use, charger included
Limited 3 year warranty
All additional parts and accessories are available.  Please contact us if interested
