Swift M2650 Monocular Microscope Series

Recently viewed

Swift M2650 Monocular Microscope Series
Swift M2650 Monocular Microscope Series

Swift M2650 Monocular Microscope Series

  • SKU: M2651C
$267.00 $315.00
Stage
Request Quote

The M2651C is ideal for a wide variety of educational applications. This series has locked-on one touch stage clips, eyepiece, objectives and easy to use coaxial focusing system.  M2651C is rechargeable, with cool and efficient dimmable LED illumination.

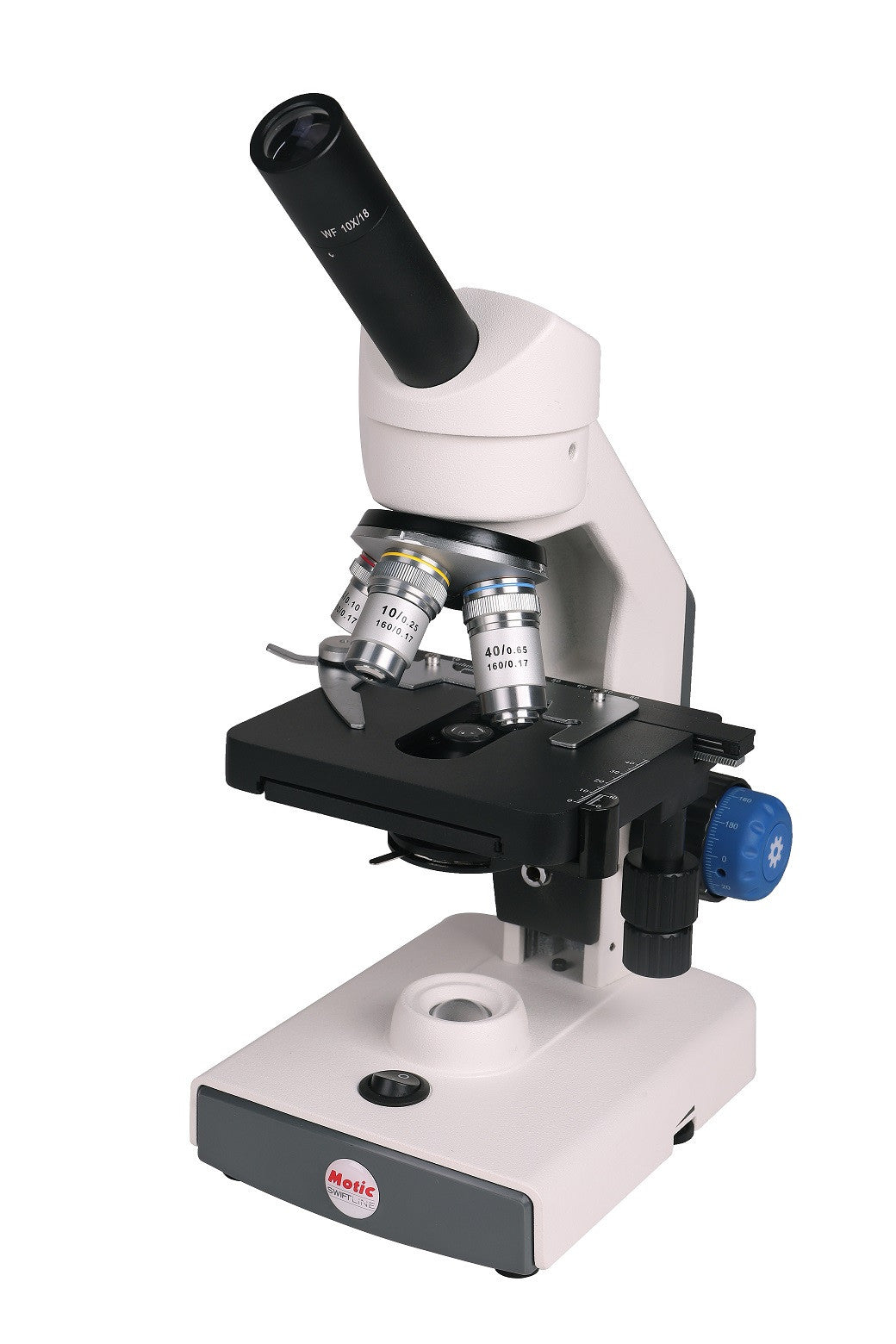

The M2651C has stage clips, while the M2652C has a mechanical stage.

OPTICAL SYSTEM

  • WF10x /18mm eyepiece.
  • Monocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromatic objectives.
  • Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.

ILLUMINATION

  • Variable LED light provides bright, white illumination.
  • 8 hour recharge allows for up to 40hrs of use.

ELECTRICAL

  • 110V - 220V switching power supply, unit shipped with American plug.

FOCUSING

  • Coaxial coarse and fine focusing controls.
  • Fine focus knob is graduated.
  • Safety rack stop prevents damage to slides and objective lenses

STAGE

  • Large 4-3/4 in. x 4-1/4 in. (120mm x 110mm) stage.
  • One-Touch spring stage clips - M2651 C
  • Mechanical XY Stage - M2652C
  • Built-in 0.65 N.A. condenser with iris diaphragm

The M2651C is ideal for a wide variety of educational applications. This series has locked-on one touch stage clips, eyepiece, objectives and easy to use coaxial focusing system.  M2651C is rechargeable, with cool and efficient dimmable LED illumination.

The M2651C has stage clips, while the M2652C has a mechanical stage.

OPTICAL SYSTEM

  • WF10x /18mm eyepiece.
  • Monocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) achromatic objectives.
  • Three-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.

ILLUMINATION

  • Variable LED light provides bright, white illumination.
  • 8 hour recharge allows for up to 40hrs of use.

ELECTRICAL

  • 110V - 220V switching power supply, unit shipped with American plug.

FOCUSING

  • Coaxial coarse and fine focusing controls.
  • Fine focus knob is graduated.
  • Safety rack stop prevents damage to slides and objective lenses

STAGE

  • Large 4-3/4 in. x 4-1/4 in. (120mm x 110mm) stage.
  • One-Touch spring stage clips - M2651 C
  • Mechanical XY Stage - M2652C
  • Built-in 0.65 N.A. condenser with iris diaphragm
