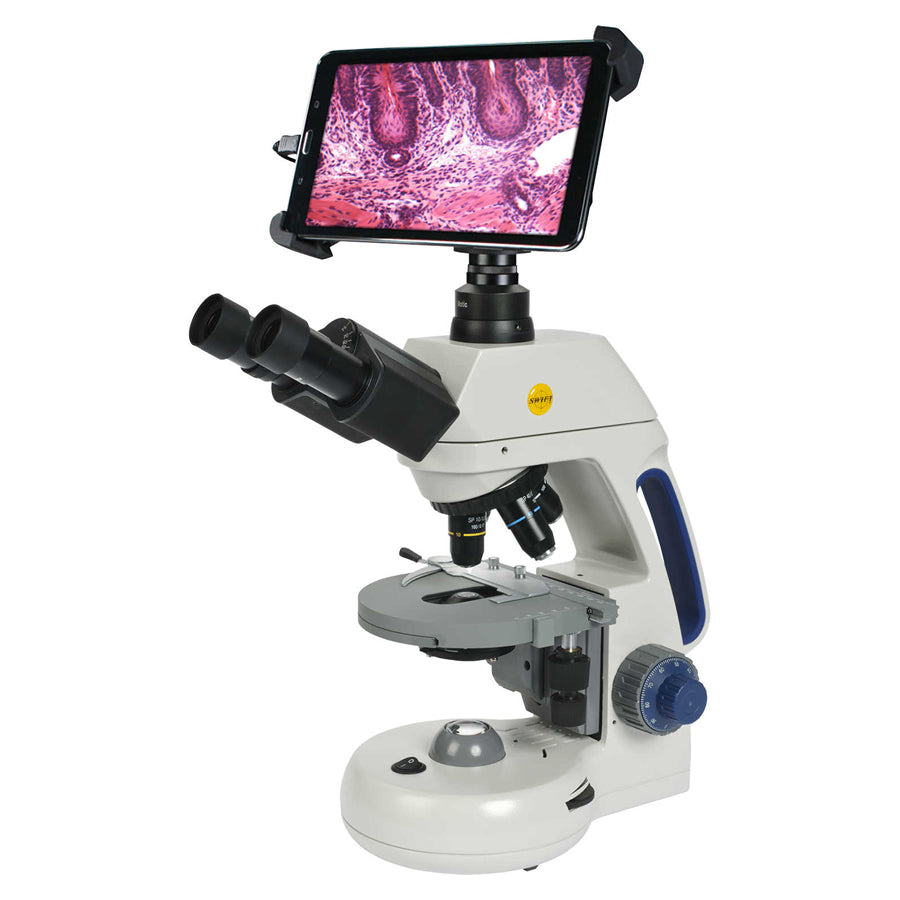

Swift M15T-BTW1-P Digital Compound Microscope w/ 8" Tablet
Like the Moticam X, this WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI. Tablet includes preloaded Motic apps. Connect, view, and share images easily and affordably with Swift. - See more at: http://swiftoptical.com/products/digital-microscopes/m10t-mcs-series-tablet/m10t-mcs-s#sthash.wYMEz72X.dpuf
Swift M15T-BTW1-P Digital Compound Microscope w/ 8" Tablet
- SKU: M15T-BTW1-P
$1,911.00
$2,249.00
- Order within
The Swift M15T-BTW1-P microscope includes an detachable 8" tablet which also acts as a camera system. The tablet displays a live image and also has the capability to capture, annotate, measure, share, and more. The tablet features multiple ways to share images including via WiFi to other tablets or wireless laptops, and HDMI to larger screens/devices. This makes it easy to share and captures images in the classroom or laboratory.
The microscope itself features 10x20mm eyepieces with infinity corrected Plan 4x, 10x, 40x, 100x oil objectives and 6v20w halogen illumiantion.
The microscope itself features 10x20mm eyepieces with infinity corrected Plan 4x, 10x, 40x, 100x oil objectives and 6v20w halogen illumiantion.
WiFi Digital Microscope Specifications: | |
---|---|
Head: | Trinocular viewing head (for included tablet) with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm |
Tablet: |
|
Eyepieces: | Widefield 10x /20mm eyepieces |
Nosepiece: | Reversed, quadruple |
Objectives: | Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives |
Condenser: | 1.25 Abbe rack and pinion condenser |
Stage: | Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls. |
Illumination: |
6v20w Halogen Illumianation
|
Focusing: |
Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
|
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | Limited Lifetime |
The Swift M15T-BTW1-P microscope includes an detachable 8" tablet which also acts as a camera system. The tablet displays a live image and also has the capability to capture, annotate, measure, share, and more. The tablet features multiple ways to share images including via WiFi to other tablets or wireless laptops, and HDMI to larger screens/devices. This makes it easy to share and captures images in the classroom or laboratory.
The microscope itself features 10x20mm eyepieces with infinity corrected Plan 4x, 10x, 40x, 100x oil objectives and 6v20w halogen illumiantion.
The microscope itself features 10x20mm eyepieces with infinity corrected Plan 4x, 10x, 40x, 100x oil objectives and 6v20w halogen illumiantion.
WiFi Digital Microscope Specifications: | |
---|---|
Head: | Trinocular viewing head (for included tablet) with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm |
Tablet: |
|
Eyepieces: | Widefield 10x /20mm eyepieces |
Nosepiece: | Reversed, quadruple |
Objectives: | Infinity Plan Achromat 4x, 10x, 40x, 100x Oil Objectives |
Condenser: | 1.25 Abbe rack and pinion condenser |
Stage: | Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls. |
Illumination: | 6v20w Halogen Illumianation |
Focusing: | Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated. |
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | Limited Lifetime |
Swift M15T-BTW1 Advanced Digital Tablet Microscope Series Brochure
Like the Moticam X, this WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI. Tablet includes preloaded Motic apps. Connect, view, and share images easily and affordably with Swift. - See more at: http://swiftoptical.com/products/digital-microscopes/m10t-mcs-series-tablet/m10t-mcs-s#sthash.wYMEz72X.dpuf
