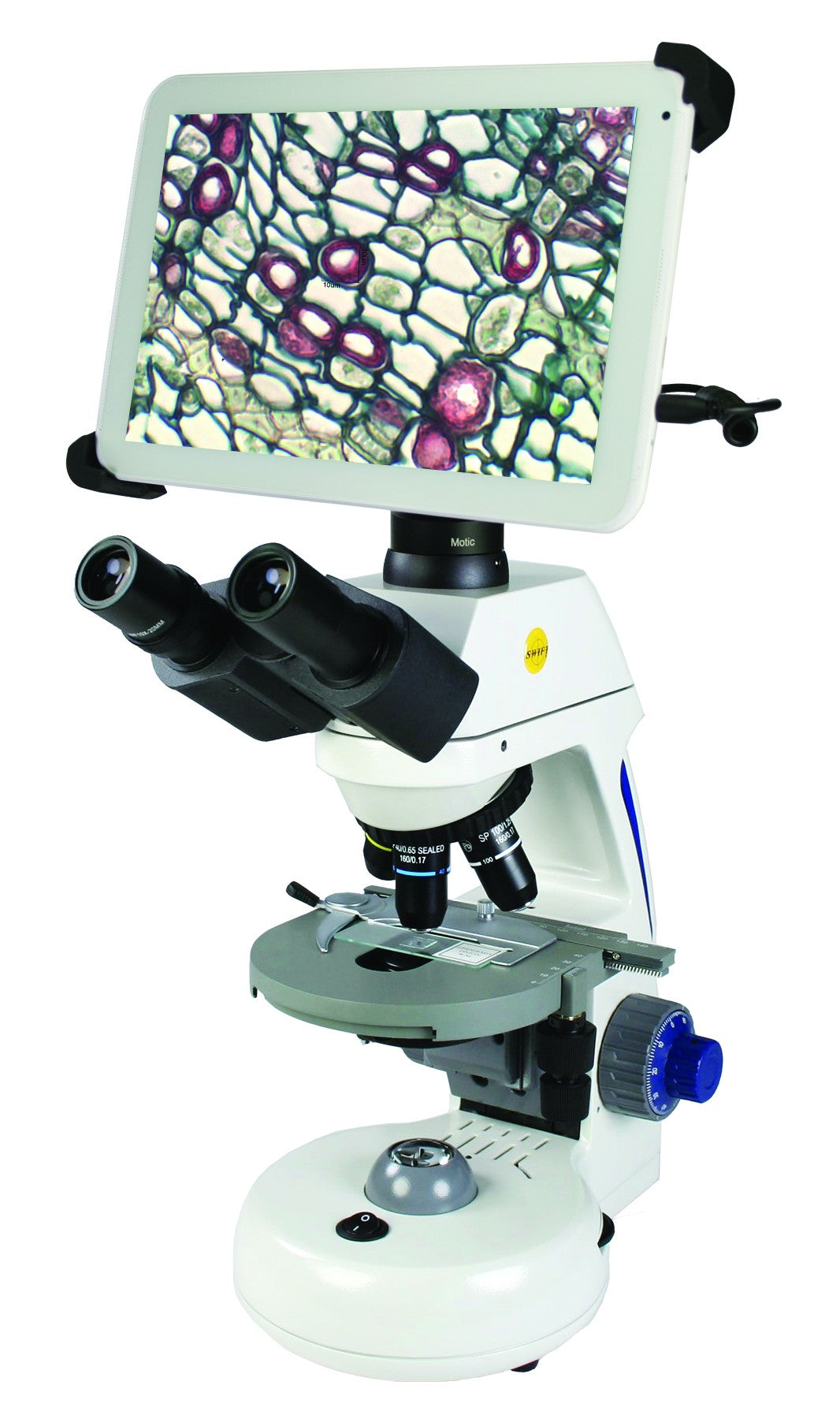

Swift M10T-BTW2 Digital Compound Microscope w/ 10" Tablet

Swift M10T-BTW2 Digital Compound Microscope w/ 10" Tablet


Regular price $2,030.00
Regular price $2,389.00 Sale price $2,030.00
Sale Sold out

Quote Request
Swift M10T-BTW2 Digital Compound Microscope w/ 10" Tablet
Got Questions? Why Choose Us? View full details


The Swift M10T-BTW2 series microscopes all include a detachable 10" tablet which also acts as a camera system. The tablet displays a live image and also has the capability to capture, annotate, measure, share, and more. The tablet features multiple ways to share images including via WiFi to other tablets or wireless laptops, and HDMI to larger screens/devices. This makes it easy to share and captures images in the classroom or laboratory.
The microscope itself features 10x20mm eyepieces with 4x, 10x, 40x, 100x oil objectives of your chooice; Plan or Semi Plan. The LED illumination provides even cool white light for up to 50,000 hours of use.
WiFi Digital Microscope Specifications:
Head: Trinocular viewing head (for included tablet) with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
  • 10" LCD Android tablet with 1280x800 screen resolution
  • Connection: WiFi; mini HDMI; micro SD card
  • 5.0 MP sensor
  • 5.0 MP captured image resolution
  • WiFi Resolution: 2.0MP - 5.0MP
  • 720P captured video resolution
  • HDMI: 1080
  • Android operating system
  • WiFi: WiFi output (802.1 ab/g/n supporting both hot-spot mode or using existing WiFi network)
  • Preloaded optimized MotiConnect app
  • Supplied with Motic Images Plus software for Mac/PC
  • Built-in MoticHub allows for wireless sharing
Eyepieces: Widefield 10x /20mm eyepieces
Nosepiece: Reversed, quadruple

M10T-BTW1-S - 4x, 10x, 40x, 100x oil Semi-Plan Objectives

M10T-BTW1-P- 4,x 10x, 40x, 100x oil Plan Objectives


Condenser: 1.25 Abbe rack and pinion condenser
Stage: Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls.
Variable, 3 watt LED provides bright, white illumination.
LED technology provides cool, energy-efficient light for up to 50,000 hours.
Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: Limited Lifetime


Swift M10T-BTW1 Advanced Digital Tablet Microscope Series Brochure


Like the Moticam X, this WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI. Tablet includes preloaded Motic apps.   Connect, view, and share images easily and affordably with Swift.  - See more at: http://swiftoptical.com/products/digital-microscopes/m10t-mcs-series-tablet/m10t-mcs-s#sthash.wYMEz72X.dpuf
