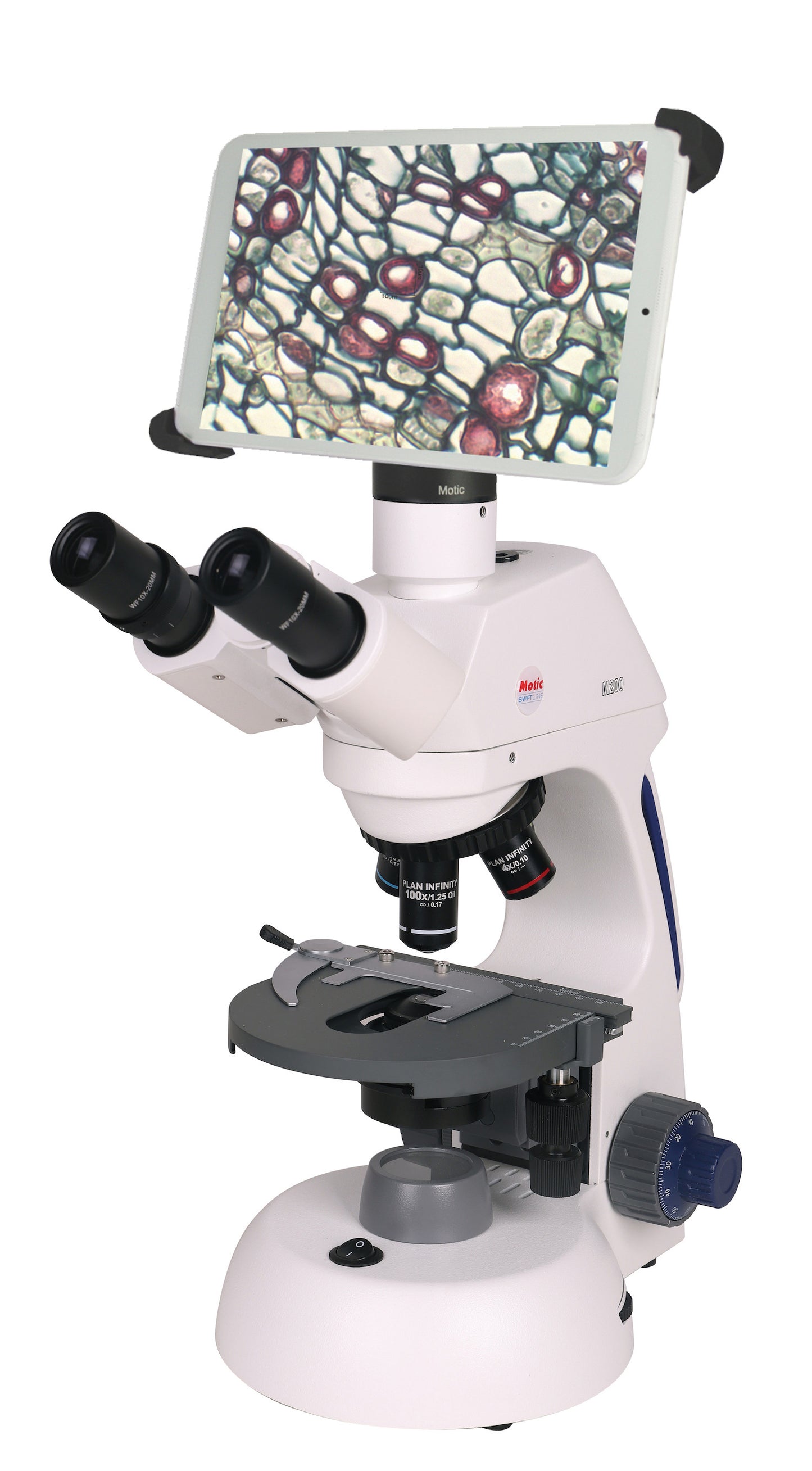

Swift M17T-BTI2-P Advanced Compound Microscope with 10" Tablet

Recently viewed

Swift M17T-BTI2-P Advanced Compound Microscope with 10" Tablet

Swift M17T-BTI2-P Advanced Compound Microscope with 10" Tablet

  • SKU: M17T-BTI2-P
$2,255.40 $2,506.00
Quote Request
The M17 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with trinocular head, WiFi camera with bracket, and 10" tablet, this research level microscope also incorporates 3W LED illumination and wide field 20mm eyepieces for a very crisp image.

Motic Swift Line’s BTI Series represents the latest in educational technology. Capable of sharing images using its advanced WiFi system, this Android-based tablet includes live image viewing app, MotiConnect. The BTI Series feature high-speed, full resolution imaging technology built into one of our most popular microscopes. Use it as a conventional microscope or share live images with your class using WiFi tablets and wireless laptops. Connect up to five devices.
OPTICAL SYSTEM
  • Widefield 10x /20mm eyepieces
  • Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
  • Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides
ILLUMINATION
  • 3W LED
  • On/off rocker switch
ELECTRICAL
  • 110V - 220V external switching power supply, unit shipped with American plug
FOCUSING
  • Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
STAGE
  • Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
  • 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm.
