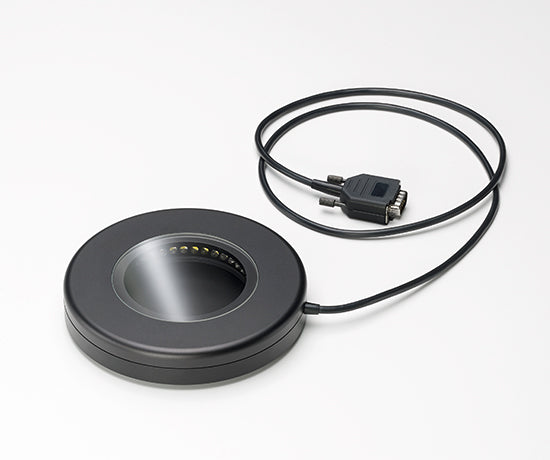

SCHOTT® VisiLED TLS-DF Darkfield Light Stage

The SCHOTT® VisiLED TLS-DF Darkfield Light Stage is designed to provide exceptional contrast for darkfield inspection and imaging applications under stereo microscopes. Utilizing 40 high-performance white LEDs arranged in eight independently controlled segments, the TLS-DF enables users to optimize illumination direction and contrast through multiple preset lighting modes.

The segmented illumination design allows specific areas of a sample to be highlighted while minimizing unwanted reflections, making it ideal for inspecting transparent, reflective, or low-contrast specimens. The result is enhanced visibility of edges, surface defects, structures, and fine details that may be difficult to observe using conventional brightfield illumination.

As part of SCHOTT's modular VisiLED illumination system, the TLS-DF Light Stage can be configured with a variety of controllers to meet specific application requirements. A complete system consists of the LED Light Head, VisiLED Controller, Power Supply, and Power Cord, all sold separately.

Applications include electronics inspection, materials analysis, quality control, industrial manufacturing, life sciences, and other demanding stereo microscopy applications requiring high-contrast darkfield illumination.

Key Features

• Designed specifically for darkfield illumination applications
• 40 high-efficiency white LEDs arranged in 8 independently controlled segments
• Multiple preset segment control modes for optimized contrast enhancement
• Homogeneous, shadow-free illumination
• Excellent color rendering with a typical color temperature of 5,600 K
• Long LED life of approximately 50,000 hours through active temperature management
• Compatible with multiple SCHOTT VisiLED controllers
• Modular design for maximum flexibility

Specifications

• Active Diameter: 50 mm (1.97")
• Outer Diameter: 140 mm (5.51")
• Height: 22.5 mm (0.89")
• Illumination: 40 White LEDs
• Segments: 8 independently controlled segments
• Adapter Diameters: Ø 84 mm, 90 mm, 100 mm, 120 mm, and 180 mm
• Color Temperature: Typically 5,600 K
• LED Lifetime: Typically 50,000 hours

System Components (Sold Separately)

• VisiLED TLS-DF Darkfield Light Stage (P/N 400350)
• VisiLED Controller (multiple models available)
• Power Supply (P/N 400050)
• Power Cord

Contact one of our microscopy specialists to determine the ideal SCHOTT VisiLED illumination configuration for your application.
