Reichert / Leica MicroStar IV Dual Head Microscope

Recently viewed

Reichert / Leica MicroStar IV Dual Head Microscope
Reichert / Leica MicroStar IV Dual Head Microscope

Reichert / Leica MicroStar IV Dual Head Microscope

  • SKU: L-MSTAR-2V
$3,200.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Quote Request

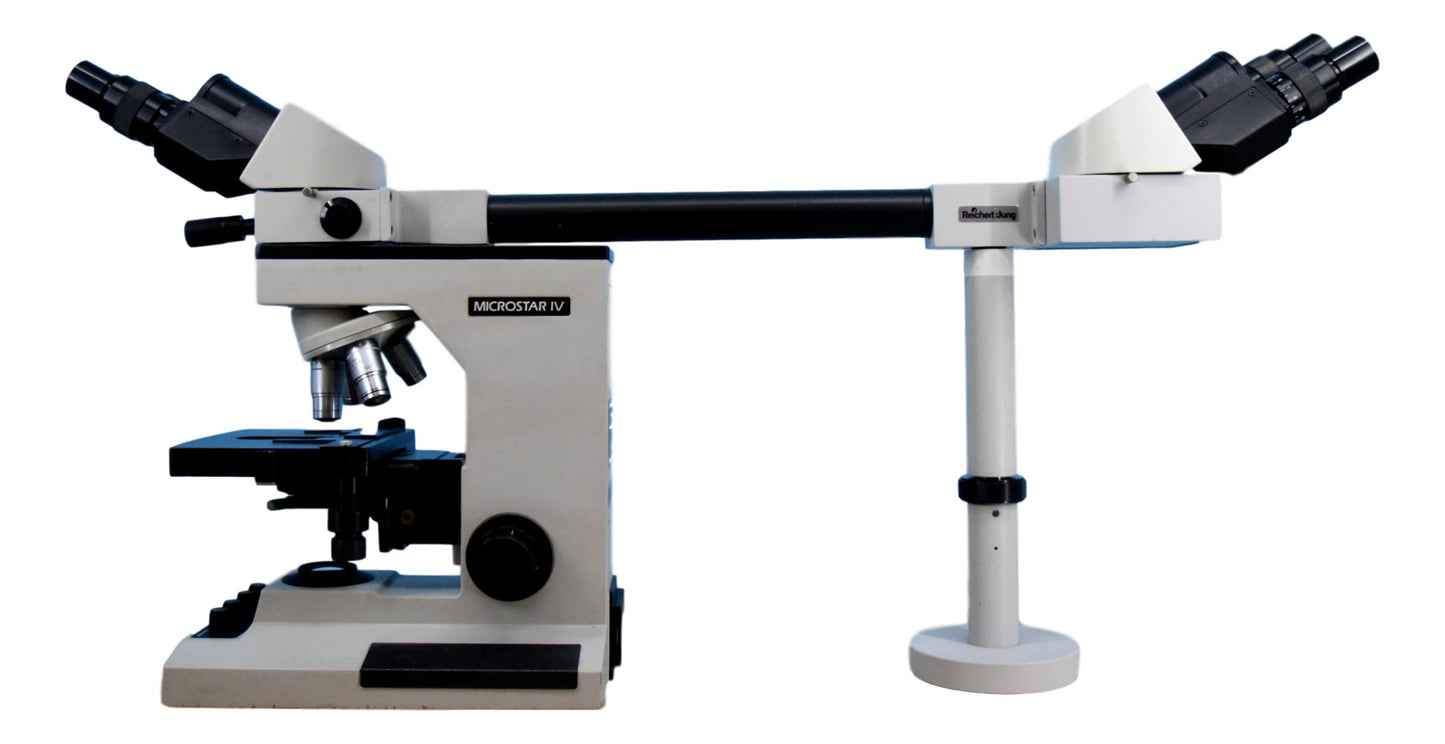

The Reichert / Leica MicroStar dual viewing microscope includes a dual viewing bridge which can be placed side-to-side or front-to-back. This model was manufactured under both the Leica / Reichert name. This is a clinical grade microscope with high quality construction and optics. This scope has two viewing heads so that 2 people can view through the microscope at the same time. It comes with three binocular heads with three pairs of 10x eyepieces. We have this configured with plan achro 4x, 10x, 40x, and 100x oil objectives. This microscope can be configured with a trinocular head or other objectives.



Specifications
Head:

Binocular Head (x2)

Dual Viewing Bridge

Eyepieces: 10x (x4)
Nosepiece: Reversed, quintuple
Objectives: Plan Achro 4x, 10x, 40x, 100x Oil
Stage: Mechanical XY Stage
Condenser: Condenser with iris diaphragm
Focusing: Coarse & Fine
Illumination: Halogen
Warranty: 2 Year Mechanical

The Reichert / Leica MicroStar dual viewing microscope includes a dual viewing bridge which can be placed side-to-side or front-to-back. This model was manufactured under both the Leica / Reichert name. This is a clinical grade microscope with high quality construction and optics. This scope has two viewing heads so that 2 people can view through the microscope at the same time. It comes with three binocular heads with three pairs of 10x eyepieces. We have this configured with plan achro 4x, 10x, 40x, and 100x oil objectives. This microscope can be configured with a trinocular head or other objectives.



Specifications
Head:

Binocular Head (x2)

Dual Viewing Bridge

Eyepieces: 10x (x4)
Nosepiece: Reversed, quintuple
Objectives: Plan Achro 4x, 10x, 40x, 100x Oil
Stage: Mechanical XY Stage
Condenser: Condenser with iris diaphragm
Focusing: Coarse & Fine
Illumination: Halogen
Warranty: 2 Year Mechanical
