Description

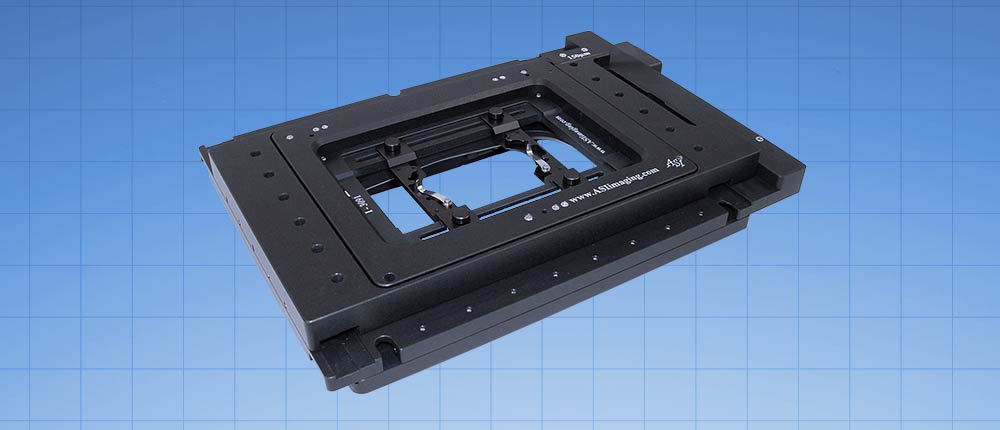

The PZ-2000 FT (Flat-Top) Stage is a high-precision automated microscope stage made by Applied Scientific Instrumentation (ASI). It is designed to provide a high-resolution and highly repeatable means of controlling the X/Y/Z position of a microscope stage, and is compatible with a wide range of microscope brands and models, including Leica, Nikon, Evident/Olympus and Zeiss. The MS-2000 controller provides joystick control and facilitates communication via USB or RS-232 serial, and supports TTL synchronization. ASI products are supported by software from most scope manufacturers, as well as Micro-Manager, Nebula, VisiView, Inscoper, Slidebook, MetaMorph, and more (SDK available).
In addition to X/Y motorization, the PZ-2000 also features a piezo Z-axis positioner. Piezo systems offer better accuracy, faster movement, and improved stability compared to traditional Z microscope drives. The fast response of piezo Z enables rapid Z-stacks for 3D volumetric imaging and improved data for any imaging where quantification is critical.
The PZ-2000 is ideal for:
- 3D imaging
- Deconvolution
- Live Cell Imaging, Organism Tracking, and Time-Lapse Microscopy
- Super resolution imaging
- TIRF imaging
| PZ-2000 Stage Specifications (standard configuration) | |
| Parameter | Value |
|---|---|
| X- and Y-axis range of travel | 120 mm × 75 mm |
| X- and Y-axis resolution (encoder step) | 22 nm |
| X- and Y-axis RMS repeatability | < 700 nm |
| X- and Y-axis maximum velocity | 7 mm/s |
| Max recommended load (6.35mm screw pitch) | 5 kg |
| ADEPT Piezo Controller Specifications | |||
| Specification | PZ-2150 | PZ-2300 | PZ-2500 |
|---|---|---|---|
| Piezo travel range (± 5%) | 150 μm | 300 μm | 500 μm |
| Piezo smallest move / resolution * | 2.2 nm | 4.5 nm | 7.6 nm |
| Maximum load for full range travel | 2 kg | 1 kg | 1 kg |
| Transient response time** | 11–15 ms |
| External analog input (BNC) | 0-10 V |
| Maximum input frequency | 20 Hz |
| Maximum continuous output current | 13 mA |
**Time taken to travel 10%-90% for moves below 30% travel range with 600 g load.
Many options are available, including, linear encoders for increased accuracy, stage wings for mounting, and alternative lead screw pitches.
This just a partial list of the microscope models that can be compatible with the PZ-2000 stage:
Evident/Olympus: IX85, IX73/83, IX71/81, IX70, BX53/63, BX51/61, BX50, BH2
Leica: DMi8, DMI6000, DMI5000, DMI4000, DM IL, DMIRBE, DMIRB, DMIRE
Nikon: Eclipse Ti2, Ti-E, Ti-U, Ti-S, TE2000, TE200, TE300, Diaphot, Optiphot
Zeiss: Axiovert, Axio Examiner, Axio Observer, Axio Imager, Axiovert 200, AxioPhot, AxioPlan, AxioLab
If you have a scope not listed here, please inquire about compatibility.
