• 15” front quartz condenser
• Shape converter for larger illumination area
• Lightweight carrying case

Designed to be operated in the laboratory or at the crime scene

Excellent light intensity in combination with 10 different spectral ranges and ideal for trace detection, visualization of chemically treated trace carriers in the lab and their documentation

Applications:

• Biological stains
• Latent fingerprints
• Blood and other body fluids
• Hair, paint chips and fibres
• General search for evidence
• Second-treated fingerprint enhancement

Technical Specification:

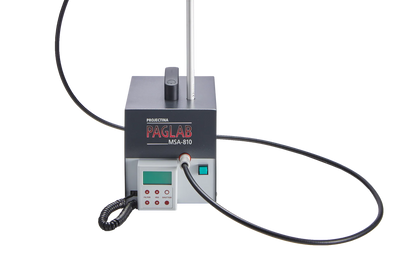

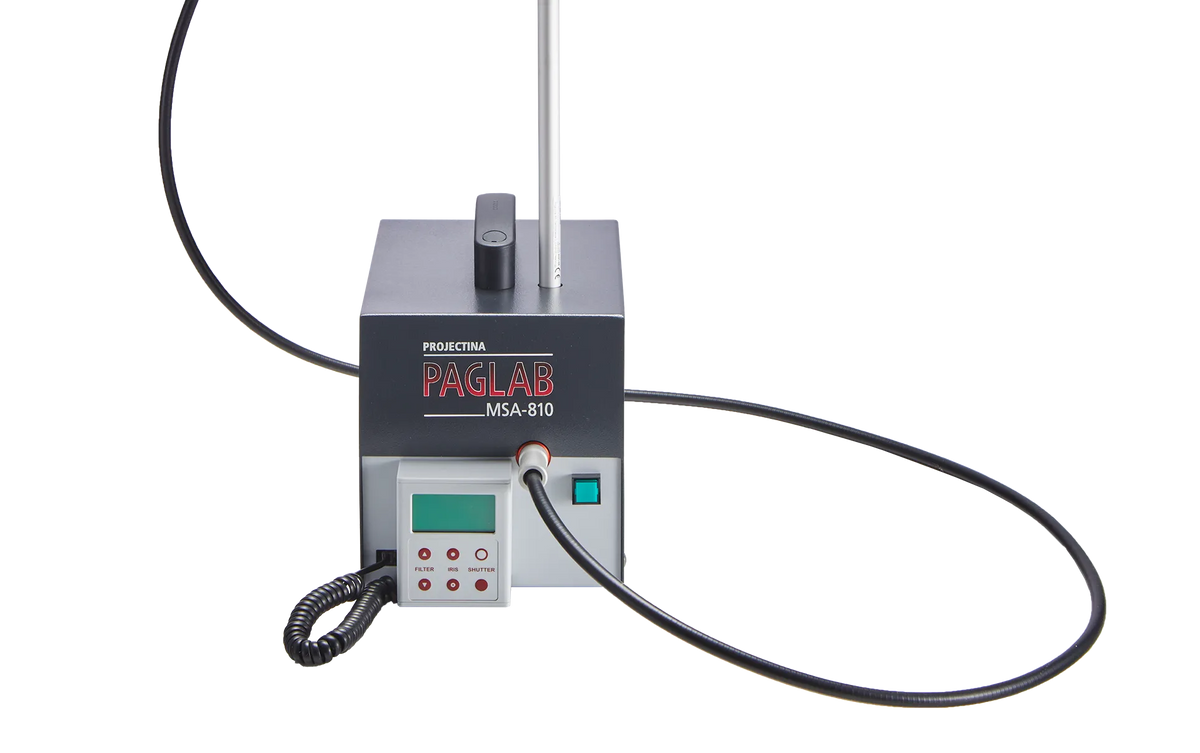

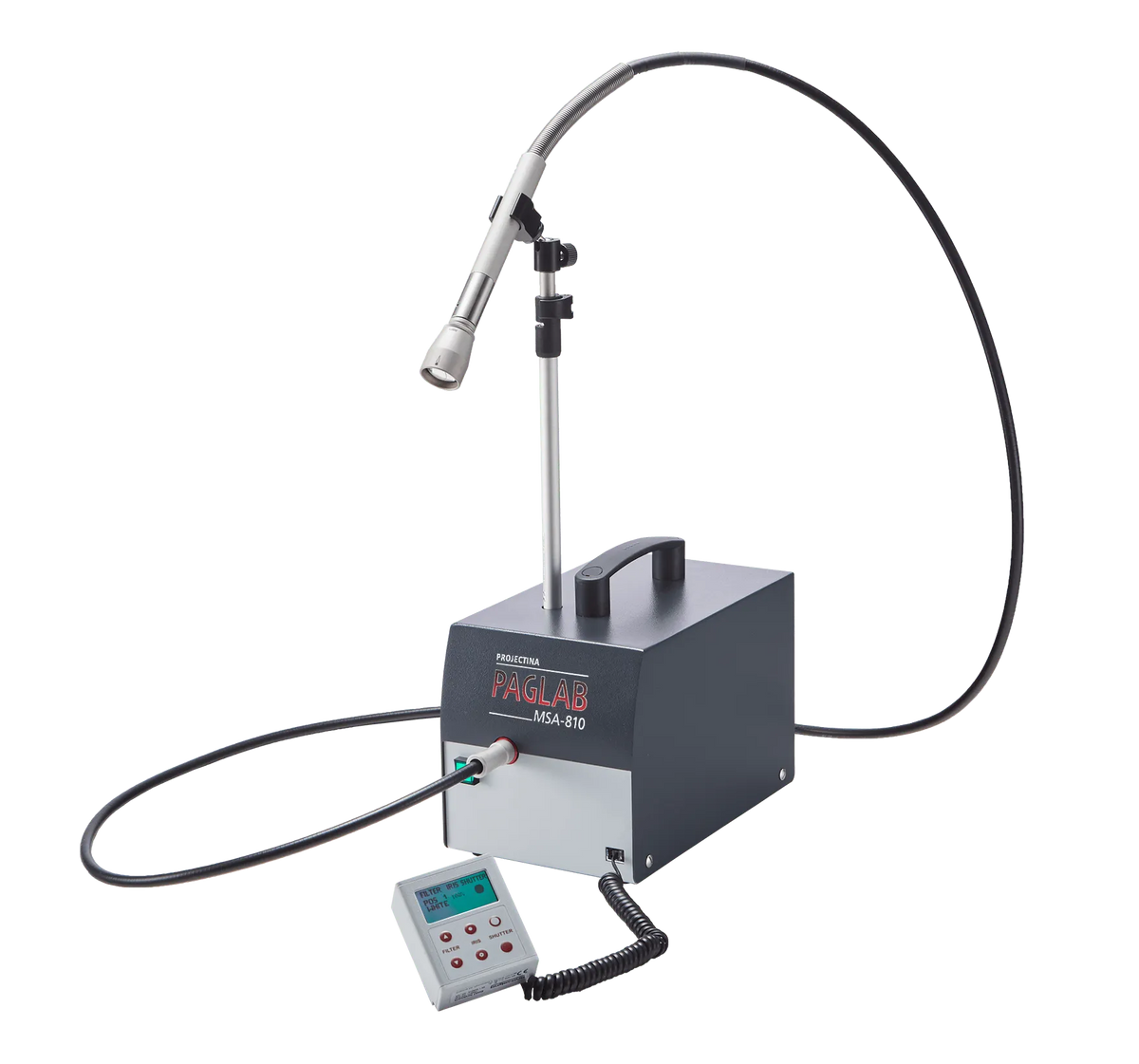

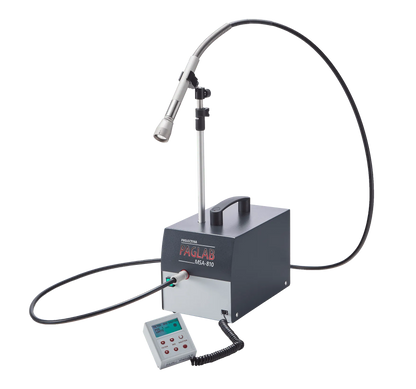

• Basic housing PAGLAB MSA-810 with handle, connection of remote control unit, extension for telescope and fixation for light guide
• Motorized filter changer via remote control
• Detachable remote control box (magnetic) with LCD display for filter values, light intensity and ON/OFF function (shutter control)
• Liquid light guide d = 5 mm, 2.5 m long with possibility to fix various accessories like shape converter, condenser for larger spot 30°, etc.
• 10 wavelengths with spectra range white light, UV purple, blue, cyan and green to yellow
• 4 Protection goggles (UV, orange, yellow, red)
• Extension for telescope handle up to 70 cm, with light guide fixation
• Condenser with quartz optics 15° for spot size of 25 cm at a distance of 1 m from the object and 12.5 cm at 50 cm
• Camera filter, d = 58 mm, orange 530 nm, yellow 495 nm and red 590 nm
• AC 100 – 240 V, 50 – 60 Hz mains connection
• Weight: approx. 5.2 kg
• Dimensions: approx. 150 mm width x 180 mm height x 260 mm depth
