The Larkin Protocol Microscope Package

Recently viewed

The Larkin Protocol Microscope Package
The Larkin Protocol Microscope Package
The Larkin Protocol Microscope Package
The Larkin Protocol Microscope Package
The Larkin Protocol Microscope Package
The Larkin Protocol Microscope Package

The Larkin Protocol Microscope Package

  • SKU: POW
$4,945.00
Quote Request

This microscope package is designed exclusively for Dr. Larkin and was hand selected and tested by Dr. Larkin himself. Dr. Larkin personally tested over 8 different microscopes brands/models before selecting this Leica configuration. Dr. Larkin selected this microscope and customized it to his specifications as he found the Leica optics, ease of use, functionality, and features to be the best solution on the market.

The included camera can output HDMI to a monitor, USB to a computer, or WiFi to an Android / iOS device.

A Note From Dr. Larkin:

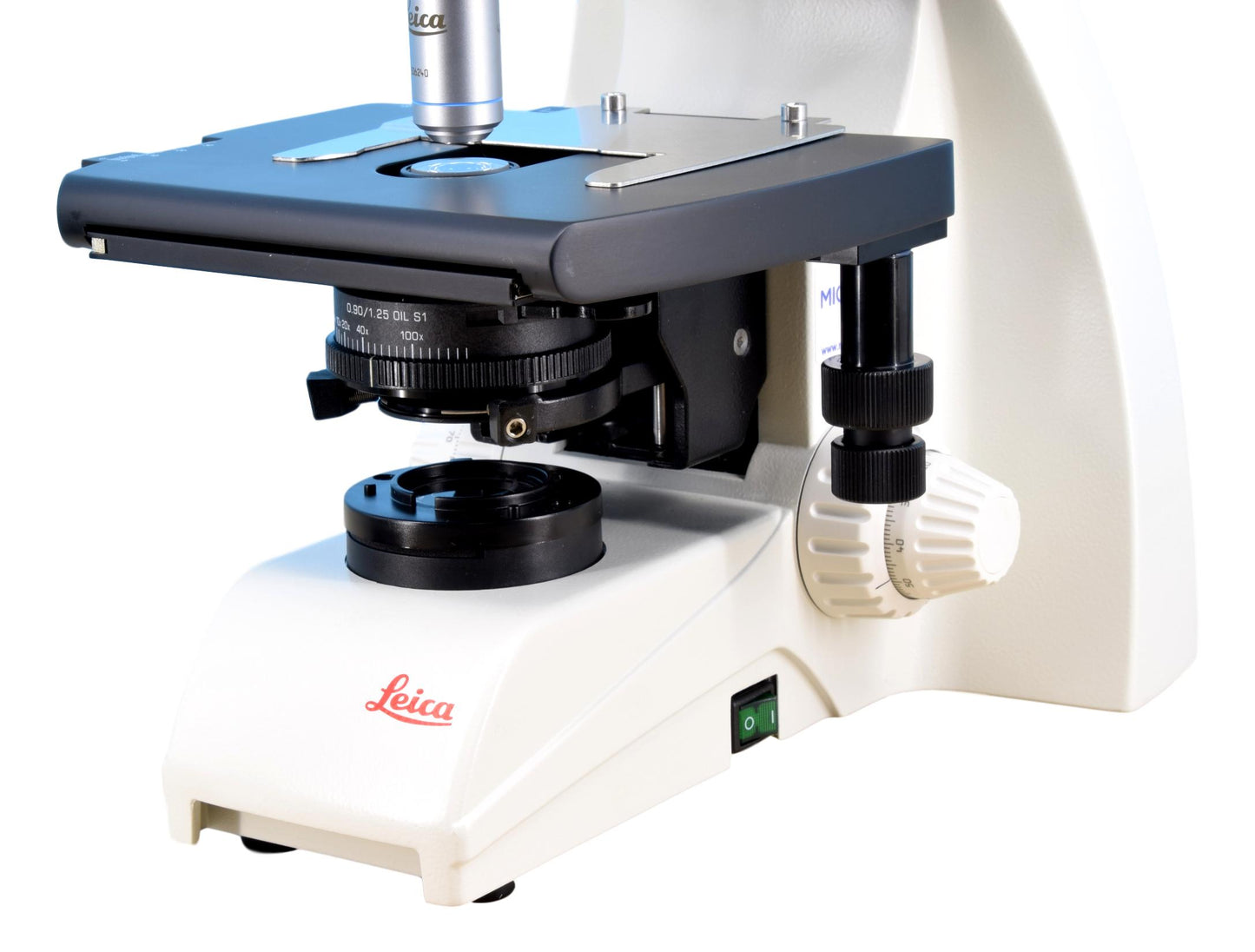

For the past year, I have researched and purchased nearly every possible phase contrast scope/monitor/tablet configuration available. I was searching for something user friendly, good optics, ability to capture images, and iPad compatible at an affordable price. I had very little success until I met the Millers and they put this configuration together for me.  It is an exceptional unit for viewing oral biofilms both chair-side and with an iPad.  The camera is internal, and can output HDMI, USB or WiFi. With WiFi output you do not need an external router, and there is only one plug making it compact and sleek. There are no eyepieces, only a phase contrast objective. Pictured here on a 27.5 inch stainless steel cart. There is room for the 22” medical grade monitor.



Camera:
Specifications:
Exposure time: 1 msec – 500 msec
Live image: 30 fps maximum – depends on mode and resolution setting
Full frame image acquisition: 5.0 megapixels max.
Movie clip: 1,920 x 1,080 max.
Color depth: 24-bit
Data format: JPEG / TIFF / BMP / MP4 (choices depend on capture device)
Operating systems: Windows 7, 8, 10 Windows Vista, Macintosh OS X, Mobile devices (iOS 7, 8 and Android 4.2+)
Software: Leica AirLab (mobile devices), Leica LAS EZ (PC), Leica LAS (PC), Leica Acquire (Mac)
Minimum Computer Configuration: PC / Mac, Intel Core 2 Duo, > 2.4 GHz, 4 GB RAM, 24-bit graphics, 1,248 × 1,024
Minimum Display Specification: 1,920 x 1,080 resolution, HDMI connection, DVI connection possible with HDMI/DVI adapter cable (not provided)
Mics. Includes HDMI cable
Objectives:

40x Hi Plan Phase

Condenser:

Abbe Condenser 0.9Dry/1.25 Oil

Phase Contrast Slider For 40x

Mechanical Stage: Rackless mechanical with one hand slide holder
Focus: Coaxial coarse/fine focus
Illumination: LED illumination – 6000 K temp, 25,000 h life at full intensity
Misc:

Power Cord, Dust Cover, Remote Control For Camera

5 Year Mechanical 1 Year Electrical Warranty
