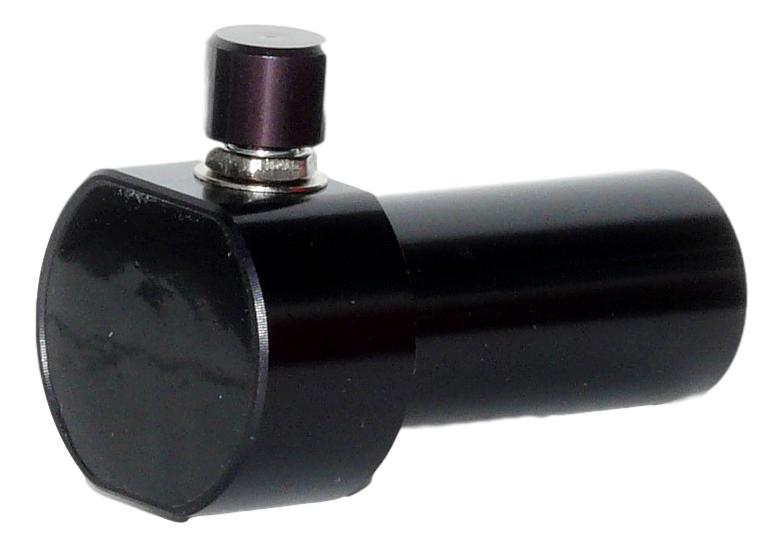

Pointer Light Illuminator LED Upgrade Kit

Recently viewed

Pointer Light Illuminator LED Upgrade Kit
Pointer Light Illuminator LED Upgrade Kit

Pointer Light Illuminator LED Upgrade Kit

  • SKU: 10845
$295.00
Quote Request

This LED illuminator is designed specifically for the Pointer Light illuminator, and replaces all existing electronics. If you have a pointer light with failed circuit board, rheostat, or socket this is the perfect solution It provides brighter illumination while being more energy  efficient. You can install this yourself, or we can install this into your microscope for an additional cost.

  • Custom-designed to fit the form factor of many microscope models.
  • Brightness control potentiometer on the new illuminator is on the unit.
  • Easy installation.
  • All illuminator systems are backed by our 3-year warranty.
  • Primary Collar: 0.706 inch diameter
  • Secondary Collar: 1.075 inch diameter
  • Total length: 2.043 in
  • Power Requirements: 5V/1.25W (0.25A maximum current consumption)
  • Uses CREE XQ-E LED
  • 4500K color temperature
  • Brightness: 118 lm at 350mA CREE test current and 85oC. 90 lm at Nanodyne max current 0.25A
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Anodized 6061 T6 Aluminum

This LED illuminator is designed specifically for the Pointer Light illuminator, and replaces all existing electronics. If you have a pointer light with failed circuit board, rheostat, or socket this is the perfect solution It provides brighter illumination while being more energy  efficient. You can install this yourself, or we can install this into your microscope for an additional cost.

  • Custom-designed to fit the form factor of many microscope models.
  • Brightness control potentiometer on the new illuminator is on the unit.
  • Easy installation.
  • All illuminator systems are backed by our 3-year warranty.
  • Primary Collar: 0.706 inch diameter
  • Secondary Collar: 1.075 inch diameter
  • Total length: 2.043 in
  • Power Requirements: 5V/1.25W (0.25A maximum current consumption)
  • Uses CREE XQ-E LED
  • 4500K color temperature
  • Brightness: 118 lm at 350mA CREE test current and 85oC. 90 lm at Nanodyne max current 0.25A
  • LED Expected Lifetime: 80% original brightness at 88,500 hours
  • Material: Anodized 6061 T6 Aluminum
