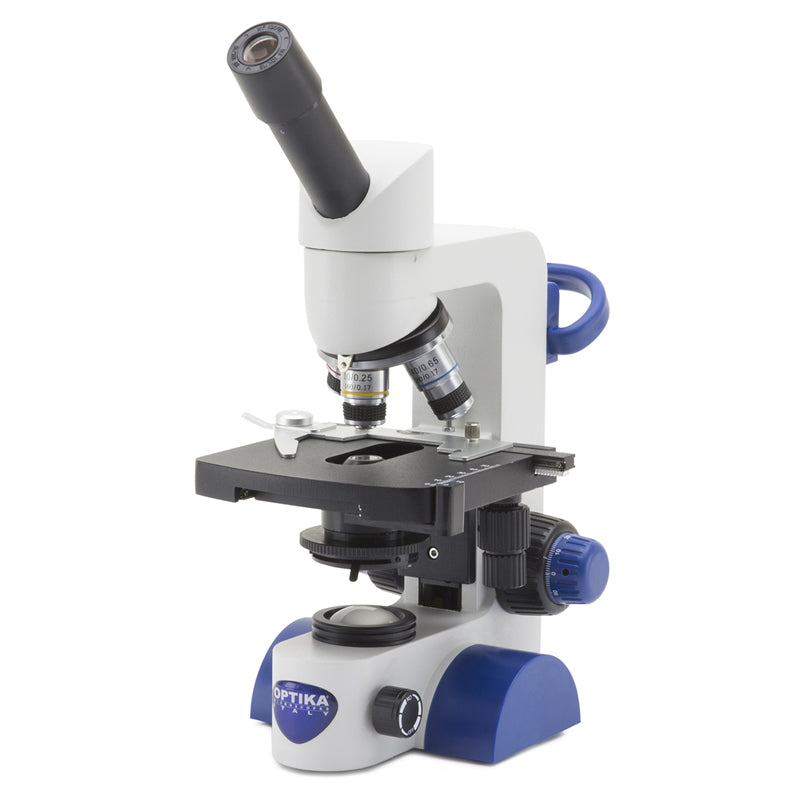

Optika B-60 Monocular Cordless LED Microscope

Optika B-60 Monocular Cordless LED Microscope

Available: In Stock
  • Monocular Head
  • 4x, 10x, 40x, - 4x, 10x, 40x, 60x, - or 4x, 10x, 40x, 100x Oil Objectives
  • Carry Handle & Wrist Rests
  • Rechargeable LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Wishlist
  • Product SKU: B-62
$273.00
Request Quote

The Optika B-60 monocular series microscope is ideal for education at the middle-high school or college level. This microscope is designed to be easy to handle and operate. It is compact, piratical, and intuitive to use. The microscope comes with a monocular head with 10x/18mm eyepieces which lock in to prevent tampering. The head can rotate 360 degrees making it ideal for storage. The microscope has a built in carry handle for safe transportation by students. You can choose from the following Achromatic objective configurations - 4x, 10x, and 40x, 4x, 10x, 40x, and 60x, or 4x, 10x, 40x, and 100x oil. The XY mechanical stage features StagErase which is coated with a special painting to reduce accidental scratches! The blue rounded fins on the side of the microscope serve as an arm/wrist rest for support while operating the microscope to prevent fatigue. The condenser is pre-centered and focusable with an iris diaphragm. The 1 Watt LED illumintor has brightness control and comes with rechargeable batteries for portable use!



Specifications
Head: Monocular, 30° inclined; 360° rotating.
Eyepieces: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed
Objectives:

B-62 - Achromat 4x, 10x, 40x

B-63 Achromat 4x, 10x, 40x, 60x

B-65 Achromat 4x, 10x, 40x, 100x Oil

Stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination:

1 W LED, with brightness control, rechargeable batteries.

6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

Warranty: 10 Year Mechanical & 2 Year Electrical

The Optika B-60 monocular series microscope is ideal for education at the middle-high school or college level. This microscope is designed to be easy to handle and operate. It is compact, piratical, and intuitive to use. The microscope comes with a monocular head with 10x/18mm eyepieces which lock in to prevent tampering. The head can rotate 360 degrees making it ideal for storage. The microscope has a built in carry handle for safe transportation by students. You can choose from the following Achromatic objective configurations - 4x, 10x, and 40x, 4x, 10x, 40x, and 60x, or 4x, 10x, 40x, and 100x oil. The XY mechanical stage features StagErase which is coated with a special painting to reduce accidental scratches! The blue rounded fins on the side of the microscope serve as an arm/wrist rest for support while operating the microscope to prevent fatigue. The condenser is pre-centered and focusable with an iris diaphragm. The 1 Watt LED illumintor has brightness control and comes with rechargeable batteries for portable use!



Specifications
Head: Monocular, 30° inclined; 360° rotating.
Eyepieces: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed
Objectives:

B-62 - Achromat 4x, 10x, 40x

B-63 Achromat 4x, 10x, 40x, 60x

B-65 Achromat 4x, 10x, 40x, 100x Oil

Stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination:

1 W LED, with brightness control, rechargeable batteries.

6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

Warranty: 10 Year Mechanical & 2 Year Electrical
