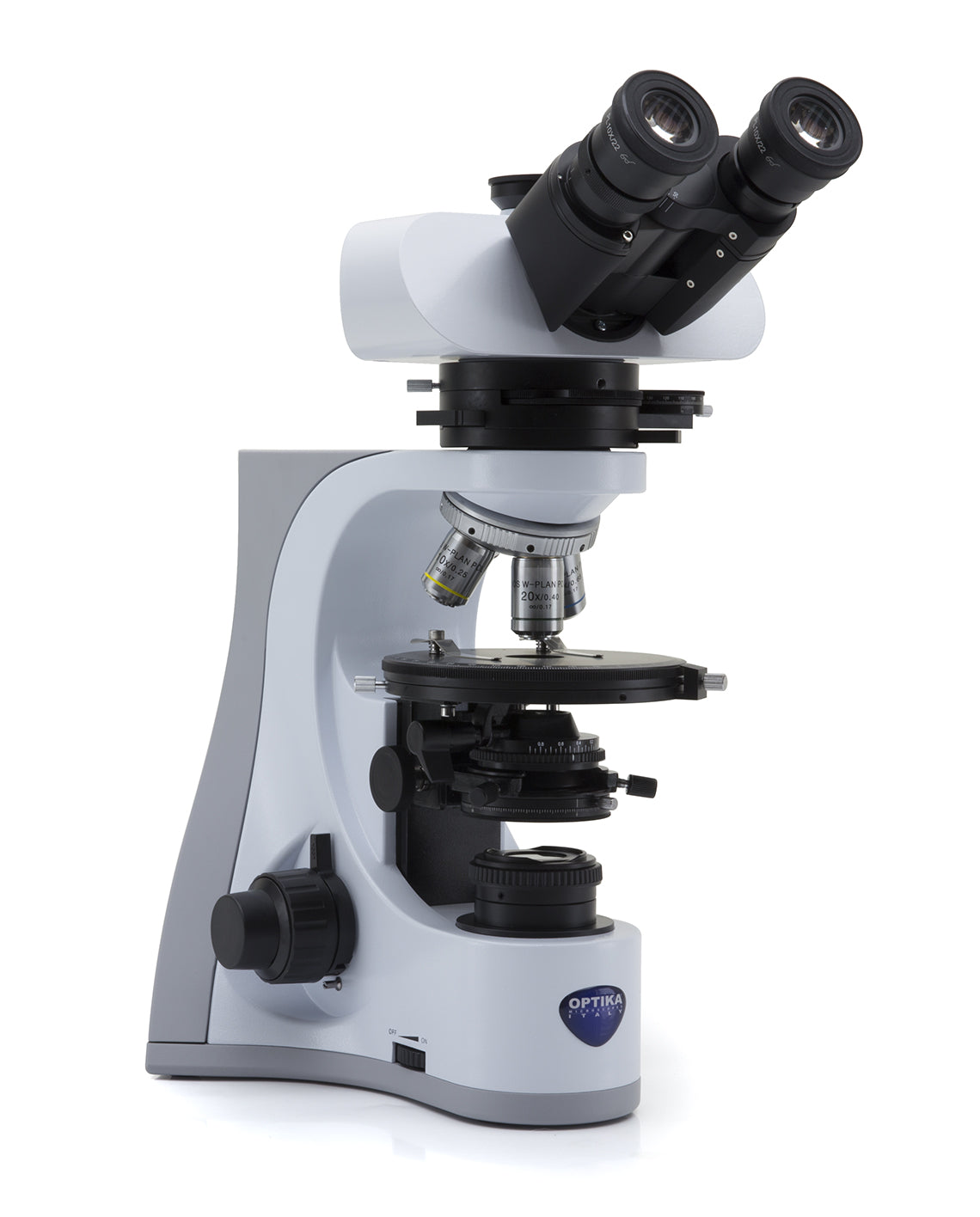

Optika B-510POL Polarizing Light Microscope
- SKU: B-510POL
- Trinocular Head
- 1° order red (λ); λ/4; Quartz Wedge
- Strain Free IOS N-Plan 4x, 10x, 20x, 40x Objectives
- LED Illumination
- 10 Year Mechanical & 2 Year Electrical Warranty
The Optika B-510POL comes standard with a trinocular viewing head. It is ideal for geological and other applications that require polarized light. It comes with a pair of 10x eyepieces that provide a 22mm field of view, one contains a crosshair reticle. The bertrand lens module has a swing-out centering mechanism for observation in conoscopy/orthoscopy. It has a rotatable analyzer and times with a 1st order red plate, λ/4, and quartz wedge. The quintuple nosepiece is centering and comes with IOS W-Plan POL 4, 10x, 20x, and 40x objectives. The rotating stage comes with two stage clips. The condenser is Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable, with rotating polarizing filter. The X-LED3 LED illumination provides smooth and even illumination without having to worry about any bulb changes! The microscope comes with Optika's unmatched 10 year mechanical warranty and 2 year electrical warranty.
Optika B-510POL Trinocular Polarizing Specifications: | |
---|---|
Head: | Trinocular (fixed 50/50), 30° inclined, 360° rotating. |
Eyepieces: | WF10x/22 mm, high eye-point. One with crosshair. |
Bertrand Lens: |
Swing-out type with centering mechanism for observation in conoscopy/orthoscopy. Rotatable analyzer from 0° to 90° with graduated scale. Tint plates: 1° order red (λ); λ/4; Quartz wedge. |
Nosepiece: | Quintuple revolving nosepiece, rotation on ball bearings. Centering system for each objective. |
Objectives: |
- IOS W-PLAN POL 4x/0.10 – IOS W-PLAN POL 10x/0.25 – IOS W-PLAN POL 20x/0.45 – IOS W-PLAN POL 40x/0.65 |
Condenser: | Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable. With rotating polarizing filter |
Stage: | Rotatable stage with locking mechanism and centering knobs. Vernier scale with accuracy 0.1 mm. Diameter 145 mm. Specimen slide clamps. |
Focusing: | Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
Illumination: | X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply |
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | 10 Year Mechanical & 2 Year Electrical |
The Optika B-510POL comes standard with a trinocular viewing head. It is ideal for geological and other applications that require polarized light. It comes with a pair of 10x eyepieces that provide a 22mm field of view, one contains a crosshair reticle. The bertrand lens module has a swing-out centering mechanism for observation in conoscopy/orthoscopy. It has a rotatable analyzer and times with a 1st order red plate, λ/4, and quartz wedge. The quintuple nosepiece is centering and comes with IOS W-Plan POL 4, 10x, 20x, and 40x objectives. The rotating stage comes with two stage clips. The condenser is Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable, with rotating polarizing filter. The X-LED3 LED illumination provides smooth and even illumination without having to worry about any bulb changes! The microscope comes with Optika's unmatched 10 year mechanical warranty and 2 year electrical warranty.
Optika B-510POL Trinocular Polarizing Specifications: | |
---|---|
Head: | Trinocular (fixed 50/50), 30° inclined, 360° rotating. |
Eyepieces: | WF10x/22 mm, high eye-point. One with crosshair. |
Bertrand Lens: |
Swing-out type with centering mechanism for observation in conoscopy/orthoscopy. Rotatable analyzer from 0° to 90° with graduated scale. Tint plates: 1° order red (λ); λ/4; Quartz wedge. |
Nosepiece: | Quintuple revolving nosepiece, rotation on ball bearings. Centering system for each objective. |
Objectives: |
- IOS W-PLAN POL 4x/0.10 – IOS W-PLAN POL 10x/0.25 – IOS W-PLAN POL 20x/0.45 – IOS W-PLAN POL 40x/0.65 |
Condenser: | Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable. With rotating polarizing filter |
Stage: | Rotatable stage with locking mechanism and centering knobs. Vernier scale with accuracy 0.1 mm. Diameter 145 mm. Specimen slide clamps. |
Focusing: | Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
Illumination: | X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply |
Accessories: | Dust cover, immersion oil & instruction manual included |
Warranty: | 10 Year Mechanical & 2 Year Electrical |
