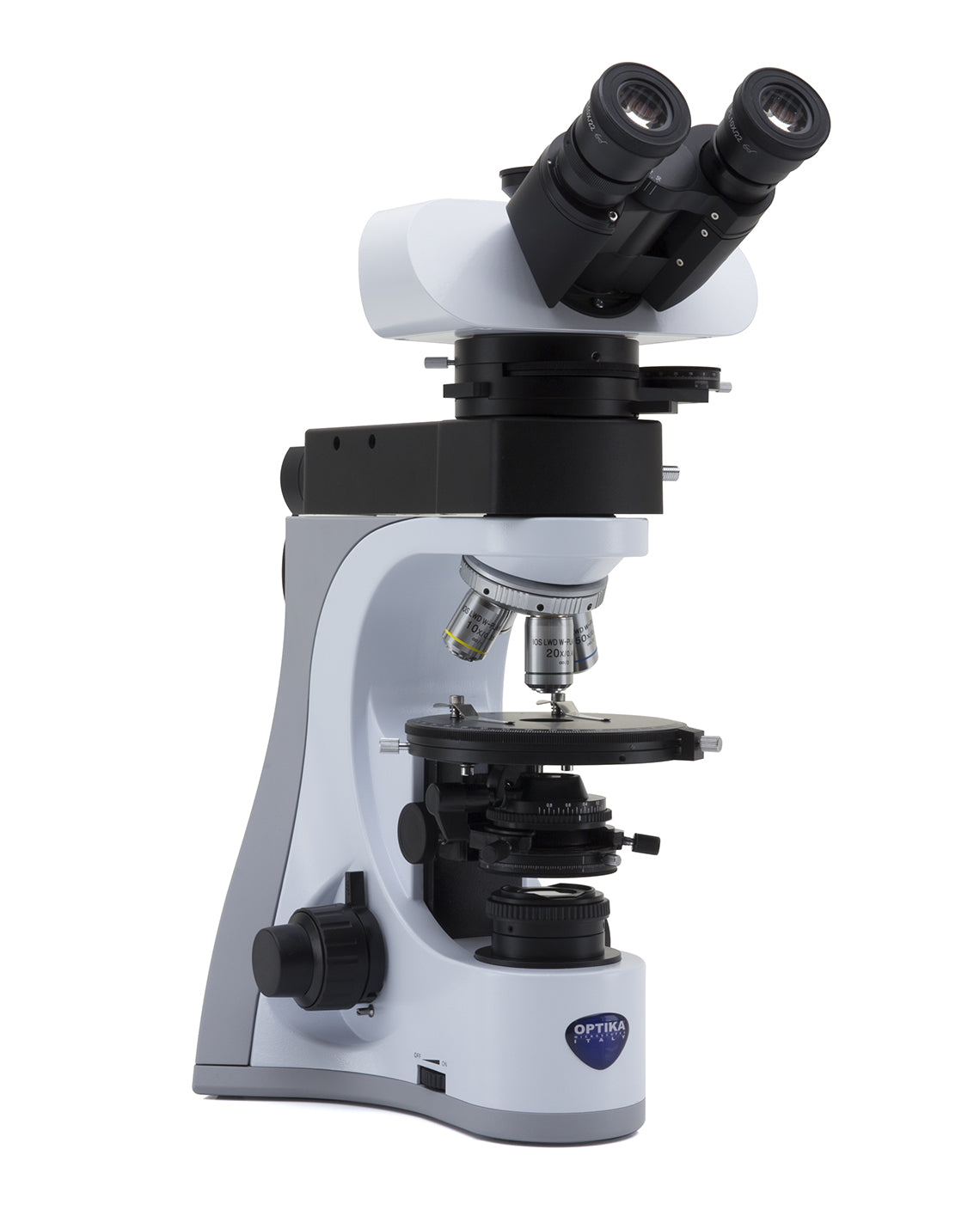

Optika B-510POL-I Reflected & Transmitted Polarizing Light Microscope

Optika B-510POL-I Reflected & Transmitted Polarizing Light Microscope

  • SKU: B-510POL-I
$6,715.00
  • Transmitted & Reflected Light
  • 1° order red (λ); λ/4; Quartz Wedge
  • Strain Free IOS N-Plan 4x, 10x, 20x, 40x Objectives
  • LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Request Quote

The Optika B-510POL-I features both reflected and transmitted light. It comes standard with a trinocular viewing head. It is ideal for geological and other applications that require polarized light. It comes with a pair of 10x eyepieces that provide a 22mm field of view, one contains a crosshair reticle. The bertrand lens module has a swing-out centering mechanism for observation in conoscopy/orthoscopy. It has a rotatable analyzer and times with a 1st order red plate, λ/4,  and quartz wedge. The quadruple nosepiece is centering and comes with IOS LED W-Plan POL 5, 10x, 20x, and 50x objectives. The rotating stage comes with two stage clips. The condenser is Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable, with rotating polarizing filter. The full koehler transmitted X-LED3 LED illumination provides smooth and even illumination without having to worry about any bulb changes! Reflected light is also LED with polarizer and rotating analyzer for incident illumination, aperture and field diaphragm. The microscope comes with Optika's unmatched 10 year mechanical warranty and 2 year electrical warranty.



Optika B-510POL-I Trinocular Polarizing Specifications:
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Eyepieces: WF10x/22 mm, high eye-point. One with crosshair.
Reflected Light: X-LED8 with white 8 W LED (6.300 K) with brightness control. With polarizer and rotating analyzer for incident illumination, aperture and field diaphragm. With additional filter holder.
Bertrand Lens: Swing-out type with centering mechanism for observation in conoscopy/orthoscopy. Rotatable analyzer from 0° to 90° with graduated scale.
Tint plates: 1° order red (λ); λ/4; Quartz wedge.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. Centering system for each objective.
Objectives: - IOS LWD W-PLAN POL 5x/0.10
– IOS LWD W-PLAN POL 10x/0.25
– IOS LWD W-PLAN POL 20x/0.45
– IOS LWD W-PLAN POL 50x/0.65
Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable. With rotating polarizing filter
Stage: Rotatable stage with locking mechanism and centering knobs. Vernier scale with accuracy 0.1 mm. Diameter 145 mm. Specimen slide clamps.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination: X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 10 Year Mechanical & 2 Year Electrical
