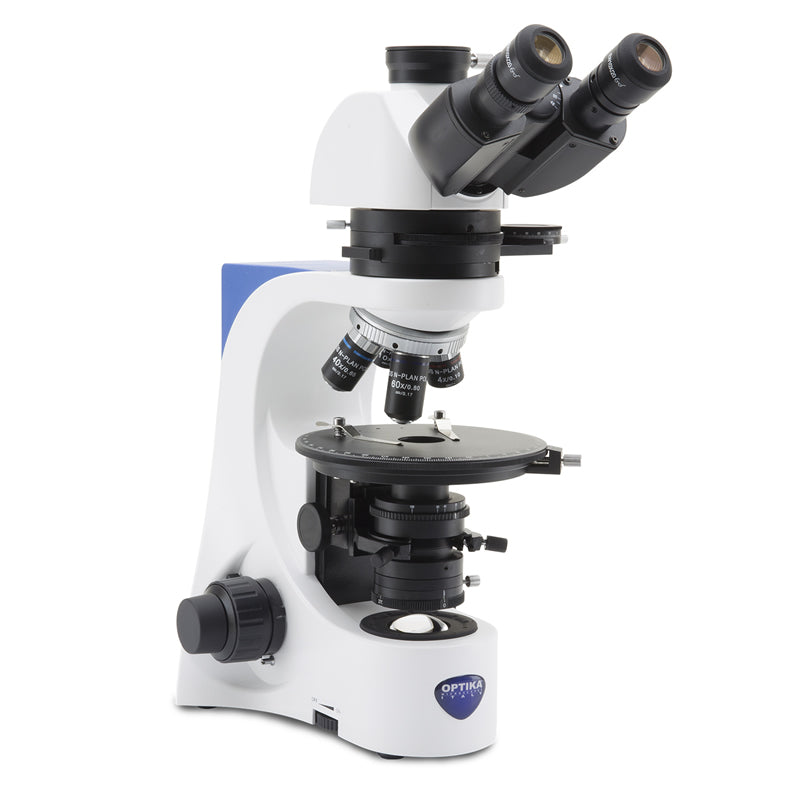

Optika B-383POL Trinocular Polarizing Microscope

Optika B-383POL Trinocular Polarizing Microscope

  • SKU: B-383POL
$3,254.00
  • Trinocular Head
  • 1° order red (λ); λ/4; Quartz Wedge
  • Strain Free IOS N-Plan 4x, 10x, 40x, 60x Objectives
  • LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Request Quote

The Optika B-383POL comes standard with a trinocular viewing head. It is ideal for geological and other applications that require polarized light. It comes with a pair of 10x eyepieces that provide a 20mm field of view, one contains a crosshair reticle. The bertrand lens module has a swing-out centering mechanism for observation in conoscopy/orthoscopy. It has a rotatable analyzer and times with a 1st order red plate and quartz wedge. The quadruple noespiece is centering and comes with IOS N-Plan POL 4, 10x, 40x, and 60x objectives. The rotating stage comes with two stage clips. The condenser is a 1.25 N.A. abbe condenser with a rotating polarizing filter. The X-LED3 LED illumination provides smooth and even illumination without having to worry about any bulb changes! The microscope comes with Optika's unmatched 10 year mechanical warranty and 2 year electrical warranty.



Optika B-383POL Trinocular Polarizing Specifications:
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. One with crosshair.
Bertrand Lens: Swing-out type with centering mechanism for observation in conoscopy/orthoscopy. Rotatable analyzer from 0° to 90° with graduated scale. Tint plates: 1° order red (λ); λ/4; Quartz wedge.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. Centering system for each objective.
Objectives: IOS N-PLAN POL 4x/0.10 IOS N-PLAN POL 10x/0.25 IOS N-PLAN POL 40x/0.65 IOS N-PLAN POL 60x/0.80 All with anti-fungus treatment.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With rotating polarizing filter
Stage: Rotatable stage with locking mechanism. Vernier scale with accuracy 0.1 mm. Diameter 160 mm. Specimen slide clamps.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination: X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 10 Year Mechanical & 2 Year Electrical
