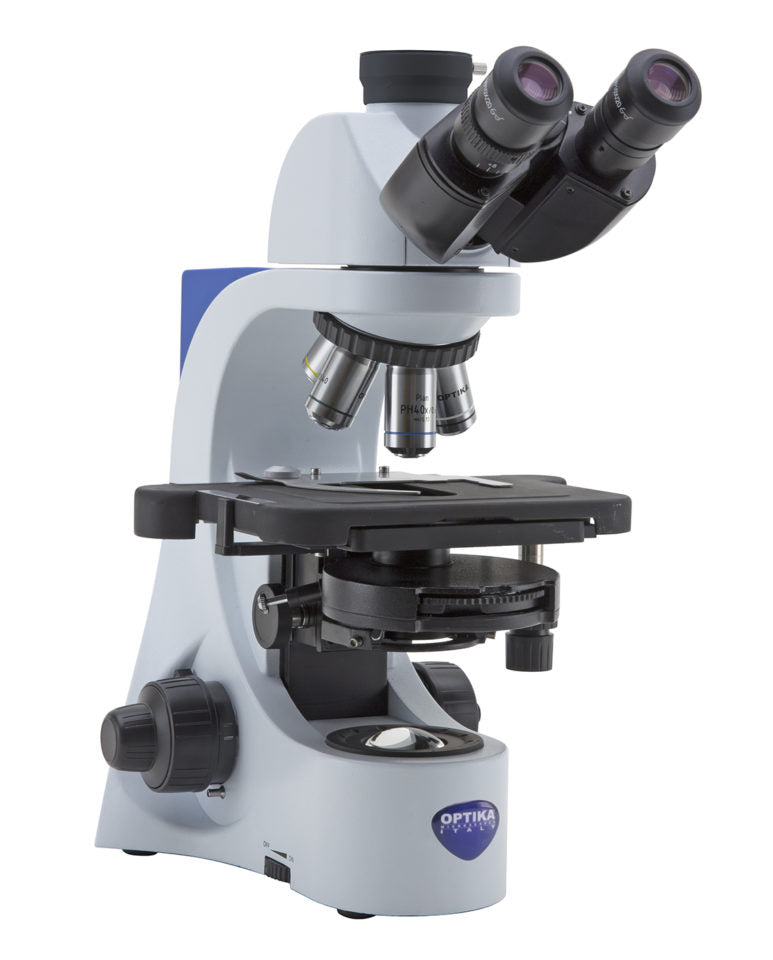

Optika B-380 Trinocular Phase Contrast Microscope

Recently viewed

Optika B-380 Trinocular Phase Contrast Microscope
Optika B-380 Trinocular Phase Contrast Microscope

Optika B-380 Trinocular Phase Contrast Microscope

  • SKU: B-383PH
$2,263.00
  • Trinocular
  • N-Plan or IOS-N Plan Objectives
  • Phase Turret Condenser
  • LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Objectives
Request Quote

The Optika B-380 phase contrast microscope series is a high quality phase contrast microscope with intelligent illumination. The microscope comes with a trinocular viewing head with a pair of 10x eyepieces that provide a large 20mm field of view. The nosepiece is a reversed quintuple nosepiece. The microscope comes with your choice of N-Plan 4x, Phase 10x, 40x, and 100x (oil or water),  or IOS N-Plan Infinity Phase 10x, 20x, 40x, 100x oil objectives. The mechanical XY stage is rackless and below the stage is the 5 position phase turret condenser. The condenser has brightfield, phase, and darkfield settings. The X-LED3 illumination system offers constant pure-white color temperature at all intensity levels and unmatched color fidelity, uniformity, and brightness.

Specifications
Head: Trinocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
Eyepieces:

WF10x/20 mm, high eye-point and secured by screw

Nosepiece: Reversed, Quintuple
Objectives:

N-Plan 4x, Ph 10x, Ph 40x, Ph 100x (Water or Oil) - B-383PH-Model

or

IOS N-Plan Infinity Ph10x, Ph20x, Ph40x, Ph100x Oil - B-383PHi Model

Condenser: Phase Turret - Brightfield, Phase, Darkfield - 1.25 N.A.
Stage: Rackless mechanical XY
Focusing: Coxial coarse & fine focus
Illumination: X-LED3 LED illumination
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 10 Year Mechanical & 2 Year Electrical
