Optika B-380 Phase Contrast HD Digital Microscope
Optika B-380 Phase Contrast HD Digital Microscope

Optika B-380 Phase Contrast HD Digital Microscope

  • SKU: B-383PH-HD
$4,149.00
  • Choose With Or Without Screen
  • N-Plan or IOS-N Plan Objectives
  • Phase Turret Condenser
  • LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Camera
Objectives
Quote Request

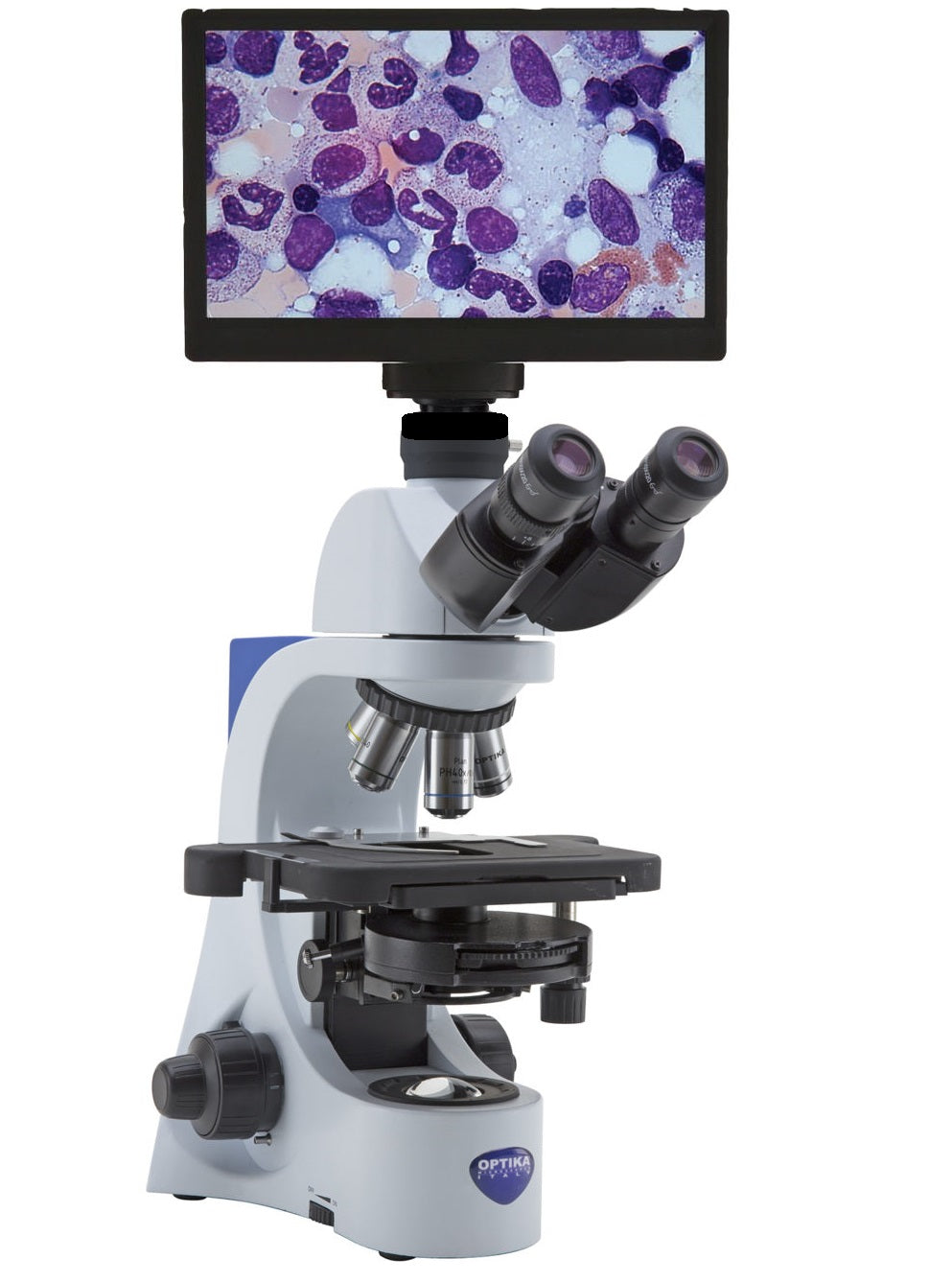

This complete Optika B-380 phase contrast digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Optika B-380 phase contrast microscope series is a high quality phase contrast microscope with intelligent illumination. The microscope comes with a trinocular viewing head with a pair of 10x eyepieces that provide a large 20mm field of view. The nosepiece is a reversed quintuple nosepiece. The microscope comes with your choice of N-Plan 4x, Phase 10x, 40x, and 100x (oil or water),  or IOS N-Plan Infinity Phase 10x, 20x, 40x, 100x oil objectives. The mechanical XY stage is rackless and below the stage is the 5 position phase turret condenser. The condenser has brightfield, phase, and darkfield settings. The X-LED3 illumination system offers constant pure-white color temperature at all intensity levels and unmatched color fidelity, uniformity, and brightness.

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular, 30° inclined, & C-mount adapter
Eyepieces:

WF10x/20 mm, high eye-point and secured by screw

Nosepiece: Reversed, Quintuple
Objectives:

N-Plan 4x, Ph 10x, Ph 40x, Ph 100x (Water or Oil) - B-383PH-Model

or

IOS N-Plan Infinity Ph10x, Ph20x, Ph40x, Ph100x Oil - B-383PHi Model

Condenser: Phase Turret - Brightfield, Phase, Darkfield - 1.25 N.A.
Stage: Rackless mechanical XY
Focusing: Coaxial coarse & fine focus
Illumination: X-LED3 LED illumination
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 10 Year Mechanical & 2 Year Electrical

 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
