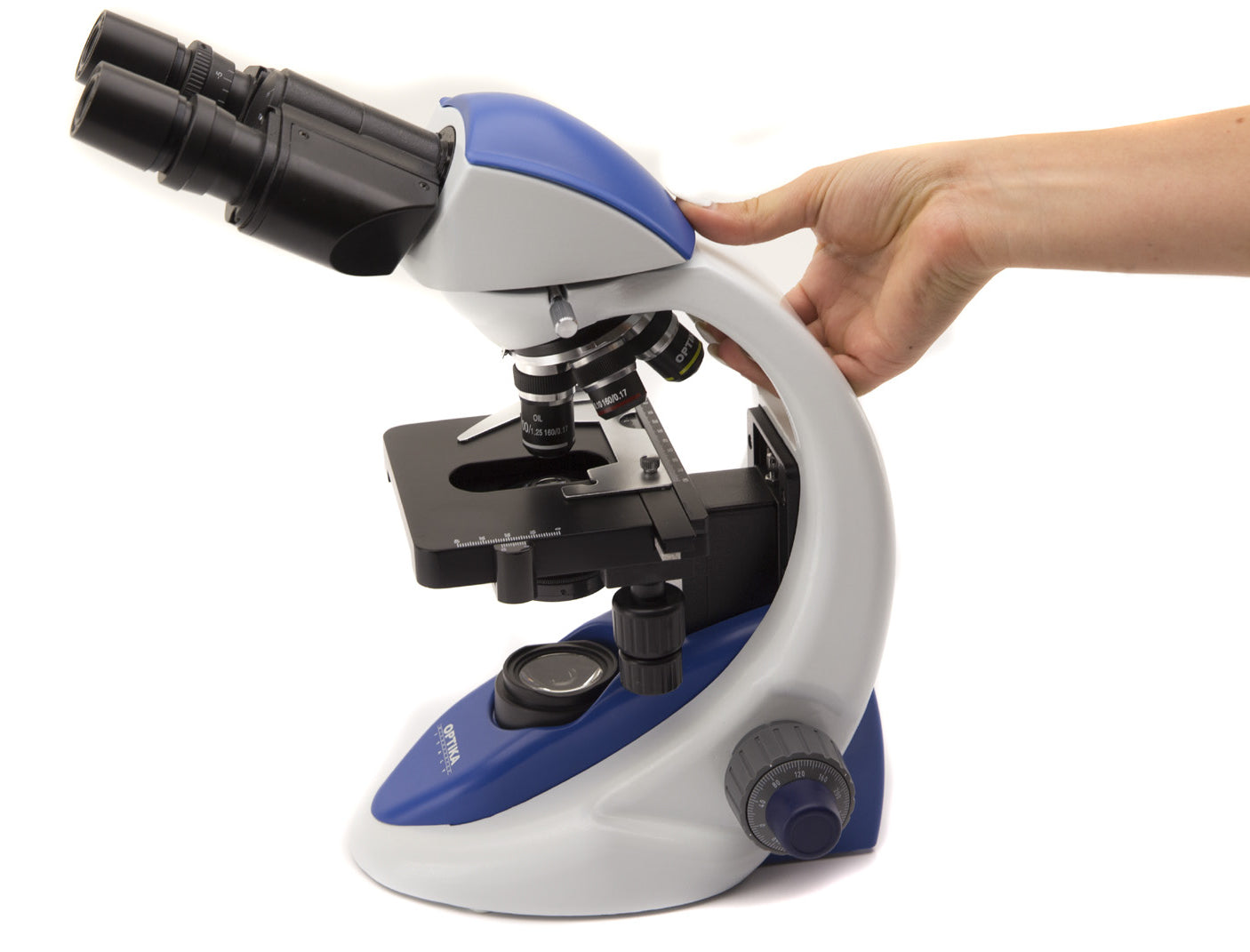

Optika B-190TB Digital Compound Microscope
Optika B-190TB Digital Compound Microscope
Optika B-190TB Digital Compound Microscope
Optika B-190TB Digital Compound Microscope
Optika B-190TB Digital Compound Microscope

Optika B-190TB Digital Compound Microscope

Available: In Stock
  • Detachable Windows Based Touch Screen Tablet Camera
  • High Contrast Achromat 4x, 10x, 40x, 100x Oil Objectives
  • 3.1 M.P. Camera
  • X-LED² LED Illumination
  • 10 Year Mechanical & 2 Year Electrical Warranty
Wishlist
  • Product SKU: B-190TB
$1,568.00
Request Quote

The Optika B-190TB is an all-in-one complete digital microscope package with an 10.1" touch screen tablet camera. The camera is a 3.1 M.P camera that allows for full control of the camera with it's touchscreen. The screen can easily detach from the microscope allowing you to take the image with you or use it to further analyze an image! The tablet is a Windows based system and can be used as a "computer" with the included keyboard. You can also rotate the screen 360 degrees or tilt the screen as needed. The trinocular head allows for output to the camera and both eyepieces at the same time. The eyepieces are WF 10x eyepieces with an 18mm field of view. This microscope comes with HC (high contrast) 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage provides smooth movements in the X and Y axis. The 1.25 N.A. condenser is height adjustable and has an iris diaphragm. The 3 watt LED illumination system features Optika's X-LED² lighting system. This special design gives the LED very high light intensity while ensuring optimal uniformity of illumination.



Specifications
Head:

Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjustment on left eyepiece.

Built-in 3.1 MP camera with Windows based tablet. 10"

Eyepieces: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed
Objectives: HC – High Contrast Achromatic 4x/0.10, 10x/0.25, 40x/0.65,  100x/1.25 (Oil/Water) with anti-fungus
Stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.
Warranty: 10 Year Mechanical & 2 Year Electrical

The Optika B-190TB is an all-in-one complete digital microscope package with an 10.1" touch screen tablet camera. The camera is a 3.1 M.P camera that allows for full control of the camera with it's touchscreen. The screen can easily detach from the microscope allowing you to take the image with you or use it to further analyze an image! The tablet is a Windows based system and can be used as a "computer" with the included keyboard. You can also rotate the screen 360 degrees or tilt the screen as needed. The trinocular head allows for output to the camera and both eyepieces at the same time. The eyepieces are WF 10x eyepieces with an 18mm field of view. This microscope comes with HC (high contrast) 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage provides smooth movements in the X and Y axis. The 1.25 N.A. condenser is height adjustable and has an iris diaphragm. The 3 watt LED illumination system features Optika's X-LED² lighting system. This special design gives the LED very high light intensity while ensuring optimal uniformity of illumination.



Specifications
Head:

Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjustment on left eyepiece.

Built-in 3.1 MP camera with Windows based tablet. 10"

Eyepieces: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed
Objectives: HC – High Contrast Achromatic 4x/0.10, 10x/0.25, 40x/0.65,  100x/1.25 (Oil/Water) with anti-fungus
Stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.
Warranty: 10 Year Mechanical & 2 Year Electrical
