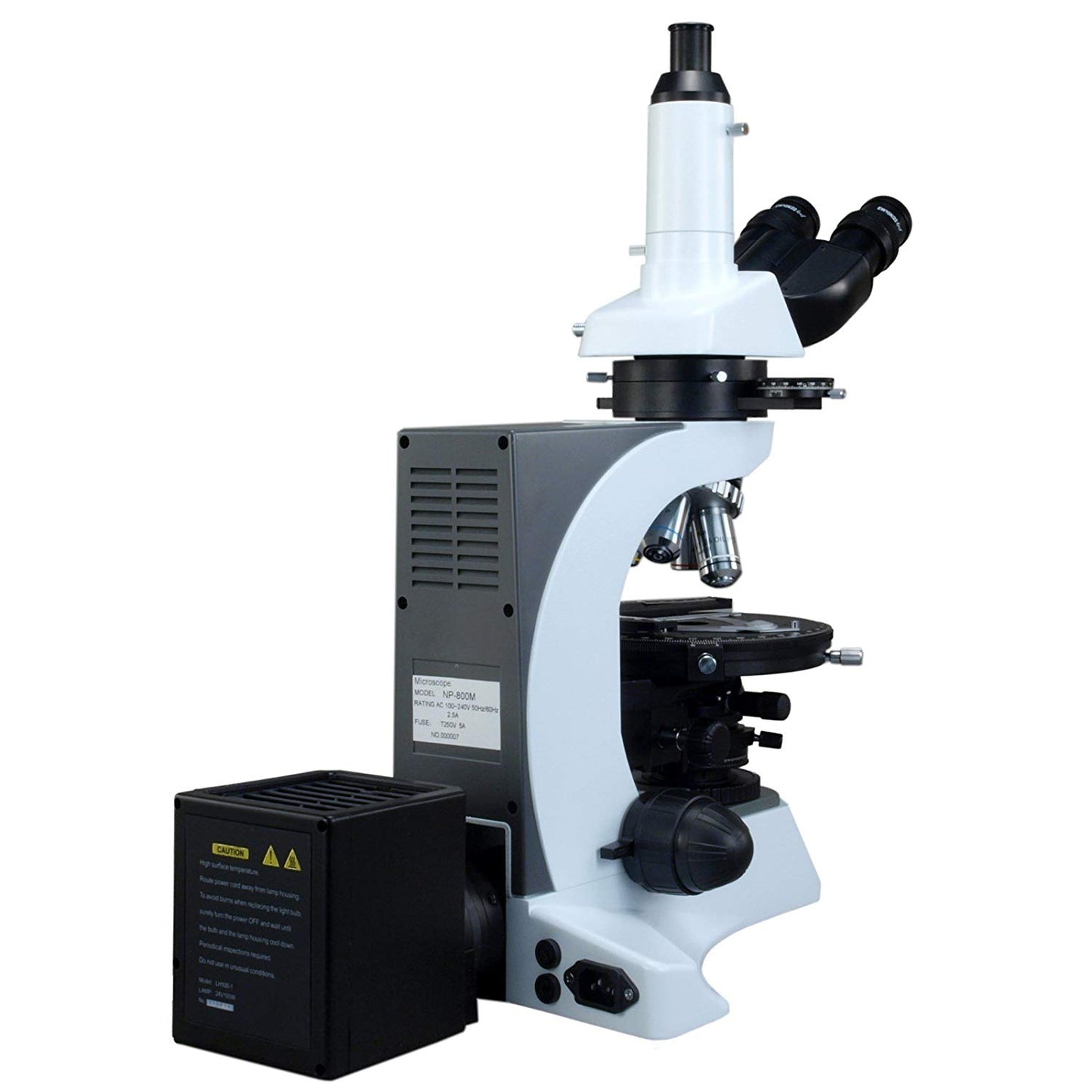

OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera

Recently viewed

OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera
OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera
OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera
OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera

OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera

  • SKU: M838PL-C10
$4,794.99
Request Quote

This trinocular polarizing microscope is outfitted with high quality strain-free infinity plan objectives, extreme widefield eyepieces, and a powerful 24V/100W transmitted halogen lamp. This kit also includes a 1.3MP microscope camera for providing computer preview and capture functions. The polarizing microscope includes many other features, such as a EW10X/22 eyepieces (one pair standard, three single eyepieces with special reticles), quintuple nosepiece with centerable objective mounts, five objectives (4X, 10X, 20X, 40X(S), 100X(S,Oil)), centerable bertrand lens, polarizer/analyzer, three compensators (tint plate, quarter-wave plate, and quartz wedge), centerable and rotatable stage, mechanical stage attachment, NA0.9/0.25 flip-top condenser, and a 24V/100W transmitted kohler illuminator.
The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows, Mac OS X, and Linux (see below for version information). The 0.37X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously.
This microscope is a powerful instrument polarized light applications such as mineralogical thinsections or toxicology samples.

Specifications:

  • Model: M838PL-C10
  • Total magnifications: 40X, 100X, 200X, 400X, 1000X
  • Eyepieces: 5 EW10X/22 (high eyepoint, Φ22mm wide field of view), 3 of them with reticles (1 with crossline, 1 with scale crossline and 1 with grid)
  • Objectives: strain free plan infinity achromatic
    - 4X/0.1/∞/-, working distance 17.3mm
    - 10X/0.25/∞/0.17, working distance 10.0mm
    - 20X/0.40/∞/0.17, working distance 5.10mm
    - 40X/0.65/∞/0.17, working distance 0.54mm (spring)
    - 100X/1.25/∞/0.17, working distance 0.13mm (spring, oil)
  • Head: Siedentopf trinocular, 30° inclined 360° swiveling head, interpupillary distance 48-75mm adjustable, diopter ring on left eyepiece tube
  • Nosepiece: revolving, quintuple, reversed, objective center adjustable
  • Condenser: strain free Abbe condenser with swing-out top lens and iris aperture diaphragm, center adjustable NA0.9/0.25
  • Stage: rotary stage, diameter Φ170mm, center adjustable, with click-stop mechanism and a mechanical stage (removable, range 30mm x 40mm)
  • Polarizer: built-in, 0°- 360° rotatable, minimum graduation 2°
  • Analyzer: slide in and out of the light path, 0°- 360° rotatable, minimum graduation 1° (0.1° when using vernier)
  • Bertrand Lens: in the intermediate attachment, switch in and out of the light path, capable of focusing and centering
  • Compensators: quarter-wave plate (1/4λ plate), tint plate (1λ plate), and quartz wedge (Q plate)
  • Focusing: coaxial coarse and fine focus knobs on both sides, tension adjustable
  • Illumination: Kohler transmitted, intensity adjustable, with iris field diaphragm, 24V/100W Halogen lamp
  • Color filters: blue
  • Power supply: AC 100-240V, 50Hz/60Hz, 2.5A
  • Dimension: 22 in x 21-1/4 in x 23-1/2 in (56 x 28 x 60 cm)
  • Net weight: 27 lb (12.4 kg)
  • Cross weight: 34 lb 12 oz (15.8 kg)

Digital Camera:

  • Resolution: true color 1280x1024 pixels
  • 0.37X reduction lens to get larger field of view
  • 0.01 mm calibration slide: 1mm/100 division
  • Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256
  • Software compatible with Windows, Mac OS X and Linux operating systems
  • Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
  • USB 2.0 cable included



Software:

software specification

Please check the chart below for computer operating system compatibility

Compatible Table



Packing List:

  • Trinocular microscope head
  • Microscope frame and base
  • Condenser assembly
  • Rotary stage
  • Intermediate attachment
  • Light housing
  • 5 EW10X/22 eyepieces
  • 5 objectives: 4X, 10X, 20X, 40X, 100X
  • Analyzer
  • Substitute of analyzer
  • 1/4λ plate
  • 1λ plate
  • Quartz wedge plate
  • Substitute of compensator
  • Photo tube
  • Blue color filter
  • A bottle of immersion oil
  • 4 Allen keys
  • Wrench for focusing tension adjustment
  • Extra halogen bulb
  • Extra fuse
  • Power cord
  • Dust cover
  • Digital camera, including
    - 1.3MP digital camera
    - 0.37X reduction lens
    - 1 CD including driver, software and user's instruction
    - 0.01mm calibration slide (stage micrometer)
    - USB cable



Optional Parts and Accessories (sold separately):

  • Other USB digital cameras
  • Prepared slides
  • Blank slides
  • Spare bulbs
