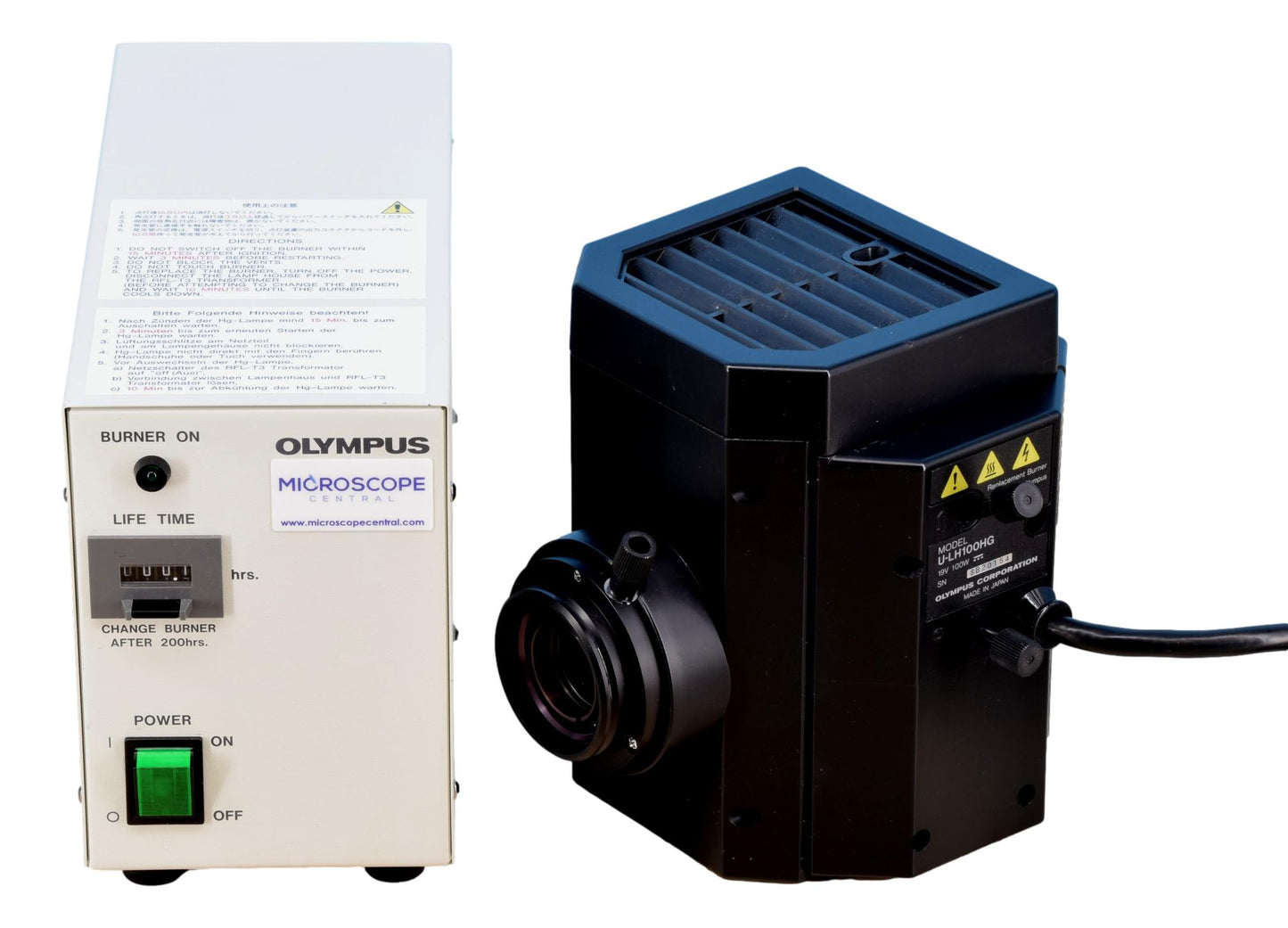

Olympus U-LH100HG Fluorescence Light Source and Power Supply

Recently viewed

Olympus U-LH100HG Fluorescence Light Source and Power Supply
Olympus U-LH100HG Fluorescence Light Source and Power Supply
Olympus U-LH100HG Fluorescence Light Source and Power Supply
Olympus U-LH100HG Fluorescence Light Source and Power Supply
Olympus U-LH100HG Fluorescence Light Source and Power Supply

Olympus U-LH100HG Fluorescence Light Source and Power Supply

  • SKU: U-LH100HG
$1,500.00
Request Quote

The Olympus Mercury light source is a cost-effective and powerful entry-level 100 W fluorescence light source. The broad emission spectrum enables a range of fluorescence imaging experiments to be conducted using all common fluorophores. This includes the light Source, power supply and power cord.



Specifications:
Lamp: 100 W Mercury discharge burner
Lamp Life Time: Approx. 200 h
Lamp Centration: Up/down, left/right, manual centering
Lamp Focusing: Moving burner or collector lens
Power Supply: External
Dimensions: 185 (W) x 180 (D) x 190 (H) mm
Weight: Approx. 3 kg
Operating Environment: Indoor use
Ambient temperature: 5 º to 40 ºC (41 º to 104 ºF)
Maximum relative humidity: 80 % for temperatures up to 31 º C (88 ºF), decreasing linearly through 70 % at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50 % relative humidity at 40 ºC (104 ºF)
Supply voltage fluctuations: Not to exceed ±10 % of the normal voltage

The Olympus Mercury light source is a cost-effective and powerful entry-level 100 W fluorescence light source. The broad emission spectrum enables a range of fluorescence imaging experiments to be conducted using all common fluorophores. This includes the light Source, power supply and power cord.



Specifications:
Lamp: 100 W Mercury discharge burner
Lamp Life Time: Approx. 200 h
Lamp Centration: Up/down, left/right, manual centering
Lamp Focusing: Moving burner or collector lens
Power Supply: External
Dimensions: 185 (W) x 180 (D) x 190 (H) mm
Weight: Approx. 3 kg
Operating Environment: Indoor use
Ambient temperature: 5 º to 40 ºC (41 º to 104 ºF)
Maximum relative humidity: 80 % for temperatures up to 31 º C (88 ºF), decreasing linearly through 70 % at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50 % relative humidity at 40 ºC (104 ºF)
Supply voltage fluctuations: Not to exceed ±10 % of the normal voltage
