Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x

Recently viewed

Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x
Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x
Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x
Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x
Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x

Olympus SZ-61TR 4K Digital Stereo Microscope 6.7x - 45x

  • SKU: SZ64TR-PS-4K
$4,089.00
  • Choose With or Without Screen
  • 6.7z - 45x Zoom Range
  • Multi-Output 4K Resolution Camera
  • Choose Your Stand
  • 5 Year Mechanical Warranty
Stand
Screen
Request Quote

The Olympus SZ61 Digital HD stereo microscope offers a zoom range 6.7x - 45x with the included 10x eyepieces. This digital stereo microscope package includes a 8.0 M.P. 4K multi-output digital microscope camera. The optional11.6" retina display screen allows you to see a live image directly above your eyepieces. The camera comes with a mouse which plugs into the camera which allows you to control the on-board software. Without the use of a computer you can capture images/videos to the removable SD card or USB stick, do a side by side comparison of a live image vs captured image, take measurements, add annotations and more! Additionally, you can output the camera VIA HDMI to a larger monitor or USB to your computer. This allows you to take advantage of the Nikon SMZ-745T digital stereo microscope and its full software that offers annotations, measurements, stacking, extended depth of focus, etc. We now offer this with or without the 11.6" screen pictured on the scopes. Without the screen you will output HDMI to your own monitor, USB to a computer, or WiFi to a phone/tablet/device. We offer this on a stand of your choice, not all stands have the microscope pictured with them.

***Microscope is not pictured on every stand, some options only show the stand, but you will receive the stand, microscope, eyepieces, and camera of choice. Some options only show the scope with screen.***



Olympus SZ61TR Microscope Specifications:
Head: Trinocular 45 degree
Zoom Range: 0.67x - 4.5x
Eyepieces: 10x/22mm FOV
Overall Mag: 6.7x - 45x
Working Distance: 110mm
Stand:

Plain Stand

LED Transmitted & Reflected

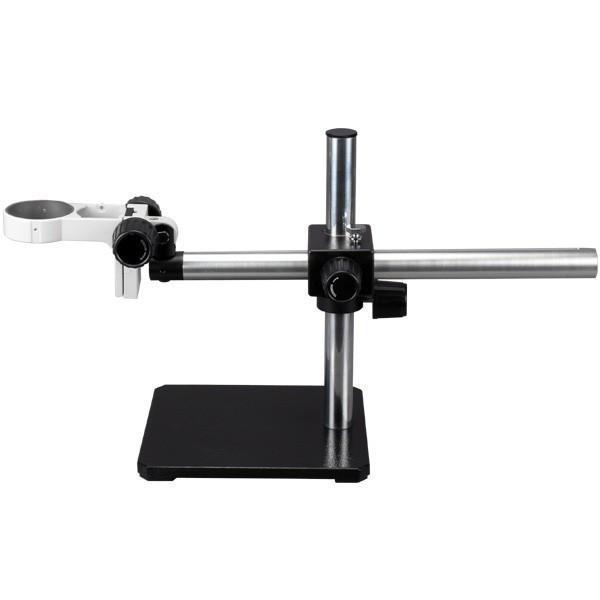

Boom Stand

Ball Bearing Boom Stand

(Other Options Available Please Contact Us)

Warranty: 5 Year Mechanical



Camera Specifications:

Screen: With or Without 11.6" Retina Display Screen
Resolution (Live): 4K (3840 x 2160)
Mega Pixels: 8.0 M.P.
Sensor: 1/1.8" Sony IMX334 - CMOS
Pixel Size: 2.0 x 2.0μ
Sensitivity: 505mV @ 1/30s (f5.6)
Shutter: Rolling
Frame Rate:

HDMI 60 FPS @ (3840 x 2160)

HDMI 60 FPS @ (1920 x 1080)

WiFi, GE 30 FPS @ (3840 x 2160)

Image & Video Capture:

HDMI - Capture to removable SD card

PC - Capture w/ software

WiFi - Capture w/ APP

Exposure Time: 0.001 sec - 10.0 sec
Output Modes: HDMI, WiFi, USB, LAN (Network)
HDMI Compatibility: Any HDMI input monitor, projector, TV (4K Not Required)

Computer

Compatibility:

Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
MAC via WiFi

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed

PC Software:

Windows:

Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping

Mac:

Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Warranty: 1 year
