Olympus MX40 Inspection Microscope
- SKU: MX-40
$14,500.00
- Fully Customizable
- Add A Camera
- Can Change The Stand, Head, Objectives
- Serviced By Experienced Techs
- With Warranty

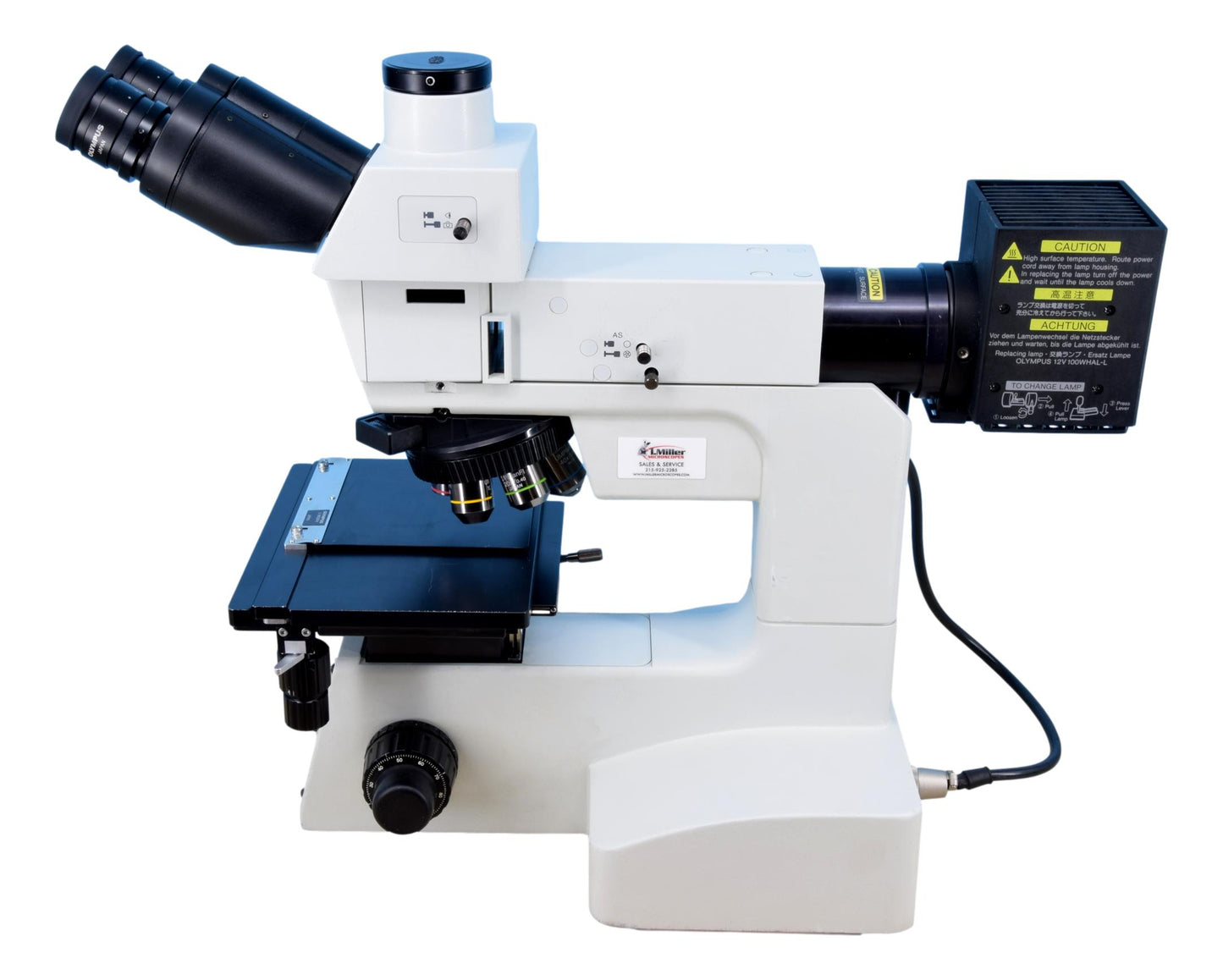

The Olympus MX40 microscope is a reflected light metallurgical materials microscope with a large throat depth to accommodate large samples like semiconductors and electrical components. The microscope comes with a trinocular erect image viewing head which allows you to add a camera for documentation purposes. The 10x eyepieces provide a large 26.5mm field of view. The microscope comes with a 6 position nosepiece with the following objective lenses - Plan 4x, UMPlanFl 10x, LMPlanFL 20x, UMPlanFL 40x, and UMPlanFL 100x. We can fully customize this microscope for you. This used microscope comes fully serviced with a warranty
| Olympus MX40 Specifications | |
|---|---|
| Viewing Head: | Trinocular Erect Image Head (U-ETR-4) |
| Eyepieces: | 10x/26.5mm eyepieces |
| Reflected Light: | Reflected Light Illuminator w/ Halogen Lamphouse |
| Nosepiece: | 6 Position Nosepiece |
| Objectives: | Plan 4x, UMPlanFl 10x, LMPlanFl 20x, UMPlanFl 40x, UMPlanFl 100x |
| Stage: | 4" Mechanical XY Stage |
| Warranty: | 1 Year |
The Olympus MX40 microscope is a reflected light metallurgical materials microscope with a large throat depth to accommodate large samples like semiconductors and electrical components. The microscope comes with a trinocular erect image viewing head which allows you to add a camera for documentation purposes. The 10x eyepieces provide a large 26.5mm field of view. The microscope comes with a 6 position nosepiece with the following objective lenses - Plan 4x, UMPlanFl 10x, LMPlanFL 20x, UMPlanFL 40x, and UMPlanFL 100x. We can fully customize this microscope for you. This used microscope comes fully serviced with a warranty
| Olympus MX40 Specifications | |
|---|---|
| Viewing Head: | Trinocular Erect Image Head (U-ETR-4) |
| Eyepieces: | 10x/26.5mm eyepieces |
| Reflected Light: | Reflected Light Illuminator w/ Halogen Lamphouse |
| Nosepiece: | 6 Position Nosepiece |
| Objectives: | Plan 4x, UMPlanFl 10x, LMPlanFl 20x, UMPlanFl 40x, UMPlanFl 100x |
| Stage: | 4" Mechanical XY Stage |
| Warranty: | 1 Year |
