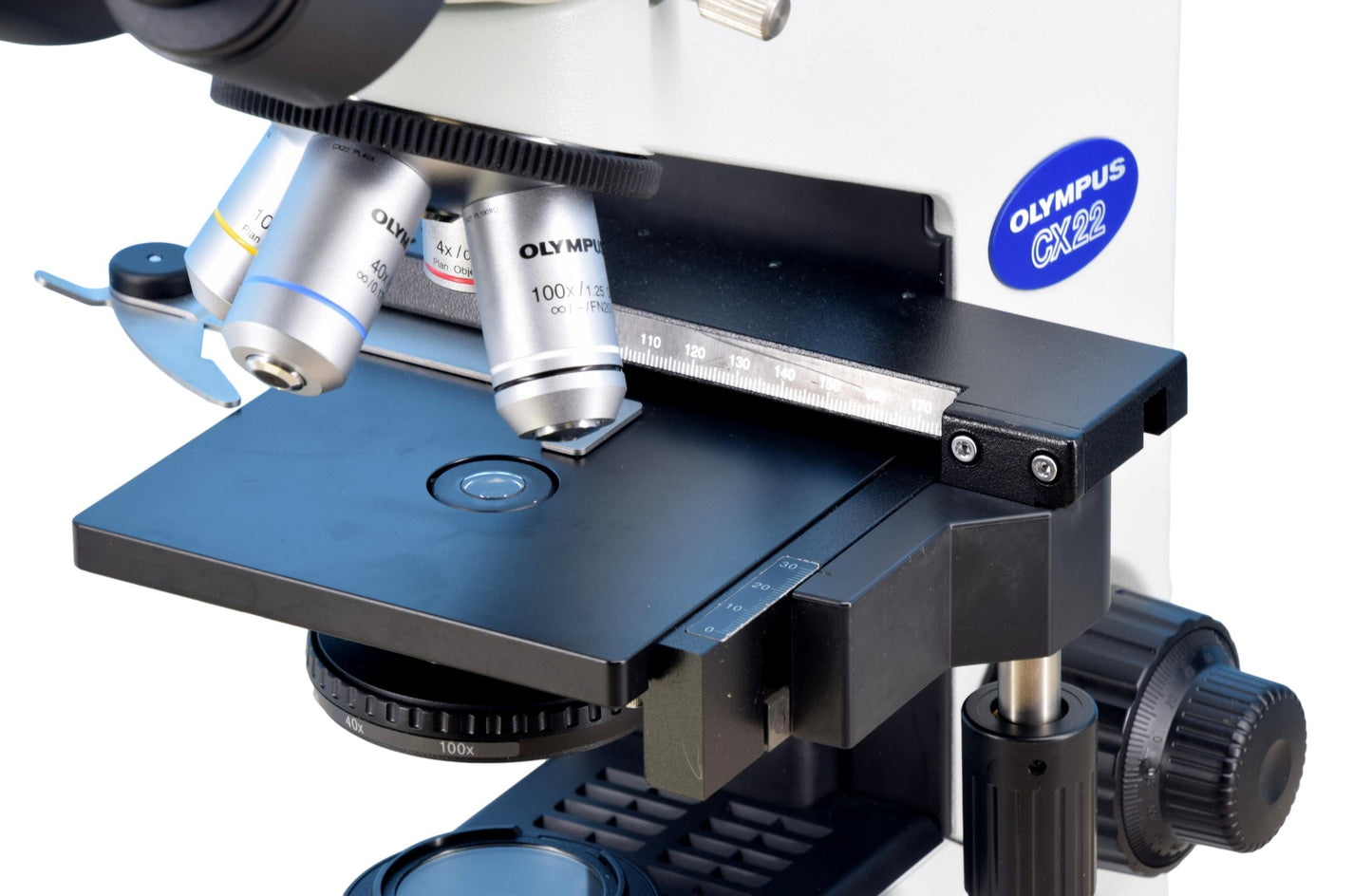

Olympus CX22 Microscope Series
- SKU: CX22LFSI
- Order within
The CX22LED and CX22 are the latest additions to the CX2 series educational and medical microscopes. Featuring LED illumination for exceptional energy savings and a lifespan of over 10 years*, the CX22LED continues the renowned Olympus pedigree of these popular microscopes. The Olympus CX22 utilizes a built-in halogen bulb for bright illumination. An improved Seidentopf binocular tube provides a wider height adjustment of 378mm to 428mm, from tabletop to eye pieces. An increased F.N. to 20 offers a larger observation area. Contact your sales representative or download a brochure for more information.
Model: | CX22LED | |
Optical System: | Infinity optical system | |
Illumination System: | Built-in transmitted illumination system, 0.5W LED | |
Focusing: |
Stage height movement (coarse movement stroke: 20mm) Fine focus graduation: 2.5µm |
|
Revolving Nosepiece: | Fixed quadruple nosepiece | |
Stage: |
Wire movement mechanical fixed stage: 120mm x 132mm Traveling range: 76mm(X) x 30mm(Y) Single specimen holder |
|
Observation Tube: |
30º inclined binocular tube Interpupillary distance adjustment range: 48 – 75 mm Eyepoint adjustment: 377.8 – 427.7 mm |
|
Condenser: | Abbe type with aperture iris diaphragm NA: 1.25 | |
Objectives: |
Plan Achromatic objectives (anti-fungus) 4x NA: 0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.: 8.0 mm 40x NA: 0.65 W.D.: 0.6mm 100xOil NA: 1.25 W.D.: 0.13mm |
|
Eyepiece (10x): | Field Number (F.N.): 20 (anti-fungus) |
