Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope

Recently viewed

Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope
Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope
Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope
Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope

Olympus BX50 Polarizing Light DIC Hoffman Modulation Microscope

  • SKU: BX50-POL-HOFF
$16,500.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote

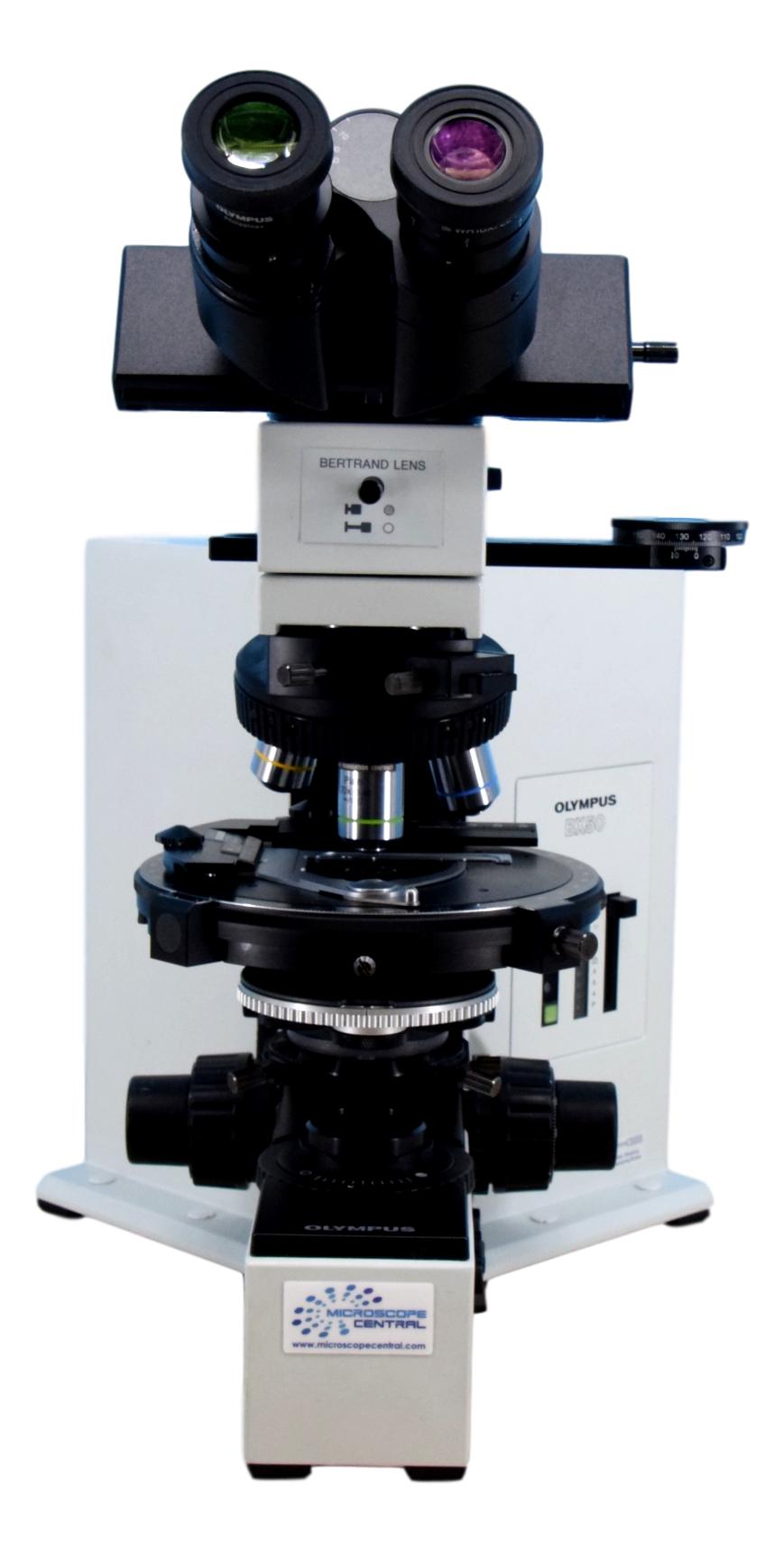

This Olympus BX50 Polarizing Light Microscope can be customized to meet your specific needs. As is this comes with a trinocular head with 10x eyepieces, one contains a cross-line reticle. The bertand lens module comes with a 360 degree rotating U-AN360P analyzer. A 530nm retardation plate is included which inserts into the path in the nosepiece. The microscope comes with 10x, 20x, and 40x Hoffman Modulation Contrast / DIC objectives with a corresponding Hoffman Modulation Contrast condenser. An XY mechanical stage is included for easy specimen movement.

Specifications
Style: Trinocular
Eyepiece: 10x 1 w/ Cross-Line Reticle
Polarizing Components:

Bertrand Lens Module

Rotatable Polarizer & Analyzer

530nm Plate

Nosepiece Quadruple
Objectives: Hoffman Modulation Contrast 10x, 20x, 40x
Stage: Rotating Stage w/ Mechanical Stage
Condenser: Hoffman Modulation Condenser
Light Source: 12v 100w Light Source
Warranty: 2 Years
