Olympus BX50 DIC Microscope

Olympus BX50 DIC Microscope

  • SKU: BX50-DIC
$19,000.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Quote Request

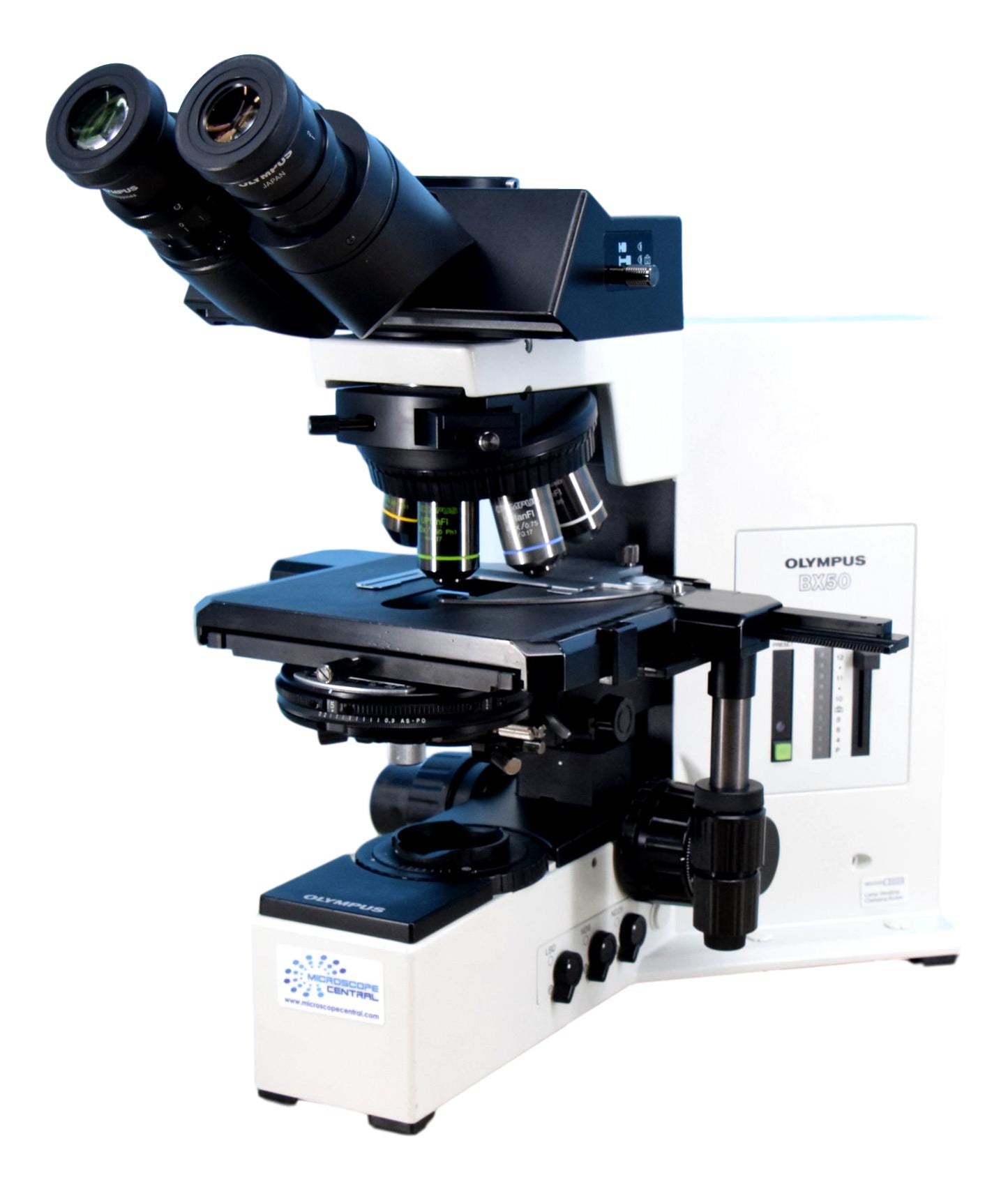

This Olympus BX50 microscope is configured for DIC, phase contrast, and brightfield applications. It comes with a trinocular viewing head so you can add a camera to this system at anytime.  This will come with the U-DICT prism with U-ANT analyzer. The condenser is the BH2-UCD condenser wtih 40x and 100x DIC prisms installed it also has 10x and 20x phase positions. This will give DIC on the 40x and 100x objectives and phase on 10x and 20x objectives.  we can add additional DIC prisms for DIC on other objectives if needed. This will come with UPlanFL PH 10x, 20x UPlanFL, 40x, and UPlanFL N 100x oil objectives. This microscope can be customized to further meet your specific needs and comes serviced with a warranty.

Specifications
Head: Trinocular
Eyepieces: 10x Eyepieces
Nosepiece 6 Position
DIC Slider: U-DICT & U-ANT
Objectives: UPlanFL PH10x, 20x, UPlanFL 40x UPlanFL N 100x oil
Stage: Mechanical XY
Condenser:

BH2-UCD flip top DIC condenser w/ 40x & 100x DIC prisms, phase positions for 10x & 20x objectives

Built in rotatable polarizer

Focusing Coarse & Fine
Light Source: Halogen
Warranty: One Year Mechanical
