Olympus BX41-P Polarizing Light Microscope

Recently viewed

Olympus BX41-P Polarizing Light Microscope
Olympus BX41-P Polarizing Light Microscope
Olympus BX41-P Polarizing Light Microscope
Olympus BX41-P Polarizing Light Microscope

Olympus BX41-P Polarizing Light Microscope

  • SKU: BX41-P-ACH
$9,000.00
  • Trinocular Viewing Head
  • Easily Add A Camera
  • Ach or UPlanFL Strain Free Objectives
  • Fully Serviced With Warranty
Objectives
Quote Request

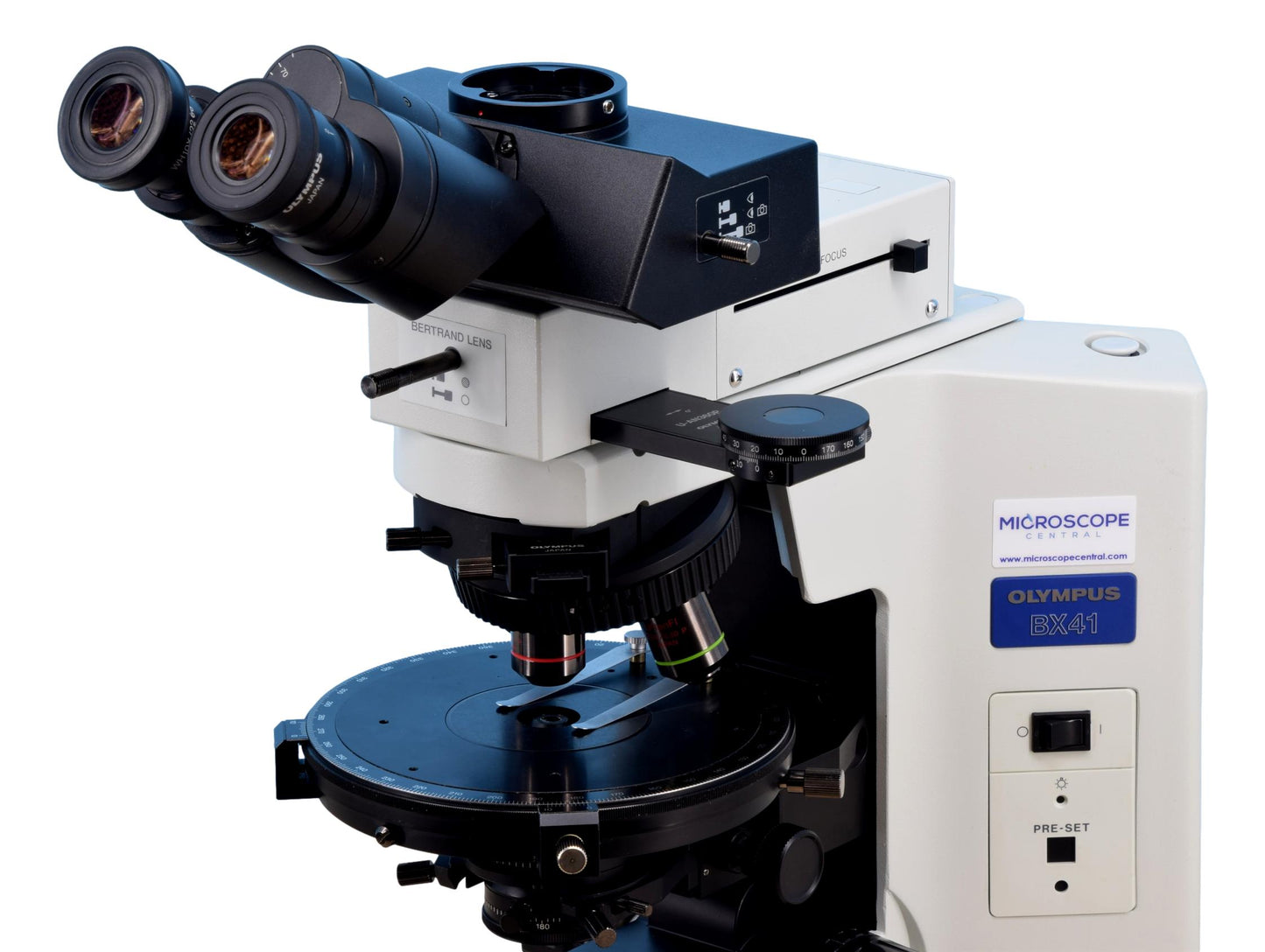

This Olympus BX41-P microscope is configured for transmitted light Polarized Light Microscopy. The trinocular viewing head allows you to easily add a camera system to this microscope. A pair of 10x eyepieces is provided, one with crossline reticle. The U-CPA POL attachment contains the  focusing bertand lens and 360 degree rotatable analyzer. This has a 4 position centerable nosepiece with a slot holding the U-TP530 530nm wave plate. This microscope comes with either strain free Ach or UPlanFl 4x, 10x, 20x, and 40x objectives. The 360 degree rotating stage comes with a pair of stage clips, or you purchase the mechanical XY U-FMP stage. The polarizer is an over the lamphouse rotating polarizer.

This used microscope can be fully customized - we can add a camera, add reflected light, change objectives, and configure with many other parts / accessories. This used microscope comes fully serviced with a warranty. A custom easy to follow assembly video is provided.



SPECIFICATIONS
Head: Trinocular - 3 Position
Eyepiece: 10X/22 w crosshair reticle
Bertrand Lens Module: U-CPA Focusing Bertand Lens
Analyzer: U-AN360P 360 Degree Rotating Analyzer
Wave Plate: U-TAD & U-TP530nm Wave Plate
Nosepiece: Quadruple Centerable w/ Slot
Objectives:

Strain Free Ach Pol 4x, 10x, 20x, 40x

Or

Strain Free UPlanFL Pol 4x, 10x, 20x, 40x

Stage: 360 Degree Rotating w/ Stage Clips
Condenser: 1.1 N.A.
Polarizer: U-POT Rotatable Polarizer
Light Source: Halogen
Warranty: 2 Years Mechanical, 6 Month Electrical

This Olympus BX41-P microscope is configured for transmitted light Polarized Light Microscopy. The trinocular viewing head allows you to easily add a camera system to this microscope. A pair of 10x eyepieces is provided, one with crossline reticle. The U-CPA POL attachment contains the  focusing bertand lens and 360 degree rotatable analyzer. This has a 4 position centerable nosepiece with a slot holding the U-TP530 530nm wave plate. This microscope comes with either strain free Ach or UPlanFl 4x, 10x, 20x, and 40x objectives. The 360 degree rotating stage comes with a pair of stage clips, or you purchase the mechanical XY U-FMP stage. The polarizer is an over the lamphouse rotating polarizer.

This used microscope can be fully customized - we can add a camera, add reflected light, change objectives, and configure with many other parts / accessories. This used microscope comes fully serviced with a warranty. A custom easy to follow assembly video is provided.



SPECIFICATIONS
Head: Trinocular - 3 Position
Eyepiece: 10X/22 w crosshair reticle
Bertrand Lens Module: U-CPA Focusing Bertand Lens
Analyzer: U-AN360P 360 Degree Rotating Analyzer
Wave Plate: U-TAD & U-TP530nm Wave Plate
Nosepiece: Quadruple Centerable w/ Slot
Objectives:

Strain Free Ach Pol 4x, 10x, 20x, 40x

Or

Strain Free UPlanFL Pol 4x, 10x, 20x, 40x

Stage: 360 Degree Rotating w/ Stage Clips
Condenser: 1.1 N.A.
Polarizer: U-POT Rotatable Polarizer
Light Source: Halogen
Warranty: 2 Years Mechanical, 6 Month Electrical
