Okolab Universal Glass Heating Table

Recently viewed

Okolab Universal Glass Heating Table
Okolab Universal Glass Heating Table
Okolab Universal Glass Heating Table

Okolab Universal Glass Heating Table

  • SKU: H401-GLASS-H401-T
$2,928.00
Quote Request

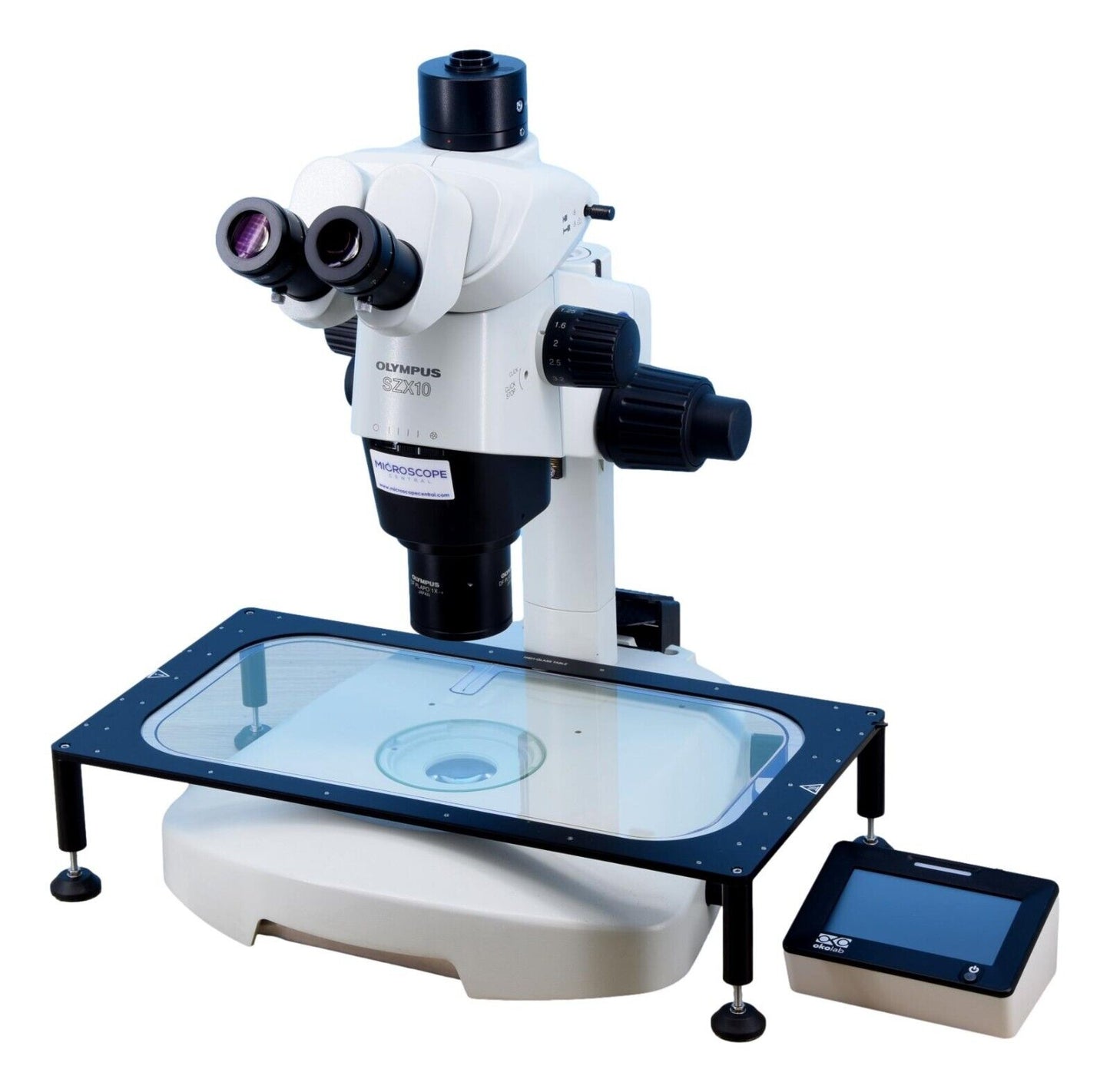

This universal heating table is designed to be adjusted so that it can be used with various microscope stands. This includes the H401T controller.

Table Features:

  • T range: ambient to 60°C
  • T sensor accuracy: ±0.1°C
  • T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C
  • 4.3'' touch screen interface
  • On-board data logging and download routines to USB drive
  • Plate calibration can be performed in the lab by the operator
  • Glass thickness: 2 mm
  • Adjustable height:
    • from 31 to 37 mm
    • from 75 to 105 mm

H401 Controller Features:

  • 2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
  • External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
  • On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
  • The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
This universal heating table is designed to be adjusted so that it can be used with various microscope stands. This includes the H401T controller.

Table Features:

  • T range: ambient to 60°C
  • T sensor accuracy: ±0.1°C
  • T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C
  • 4.3'' touch screen interface
  • On-board data logging and download routines to USB drive
  • Plate calibration can be performed in the lab by the operator
  • Glass thickness: 2 mm
  • Adjustable height:
    • from 31 to 37 mm
    • from 75 to 105 mm

H401 Controller Features:

  • 2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
  • External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
  • On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
  • The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
