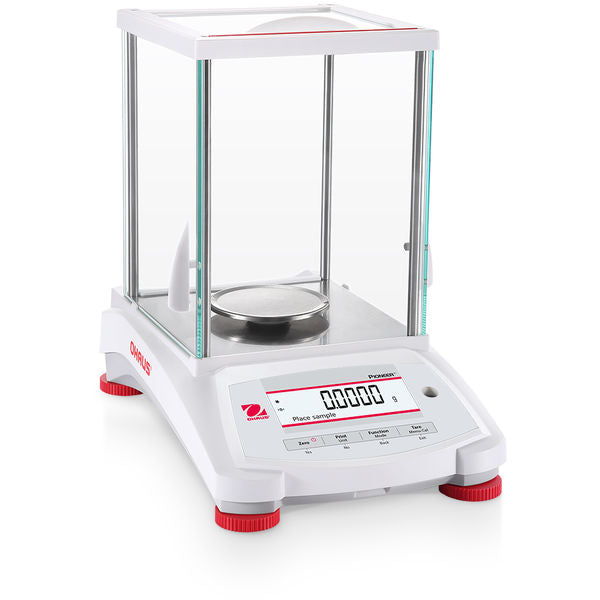

Ohaus PX124 Pioneer Analytical Balance

Recently viewed

Ohaus PX124 Pioneer Analytical Balance

Ohaus PX124 Pioneer Analytical Balance

  • SKU: 30429838
$1,874.00 $2,205.00
Request Quote

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
AC adapter (included)
Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
SPECIFICATIONS
Maximum Capacity 120 g
Readability 0.0001 g
Pan Size 90 mm
Internal Calibration InCal™ - Semi Automatic
Draftshield Included
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232;  USB
Dimensions 309 mm x 321 mm x 209 mm (HxLxW)
Display 2-Line LCD with Backlight
Inuse cover Included
Legal for Trade No
Linearity ± 0.0002 g
Minimum Weight (USP, 0.1%, typical) 200 mg
Net Weight 10 lb (4.5 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.0001 g
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Carat;  Custom;  Grain;  Gram;  Hong Kong Tael;  Kilogram;  Mesghal;  Milligram;  Momme;  Newton;  Ounce;  Ounce Troy;  Pennyweight;  Pound;  Singapore Tael;  Taiwan Tael;  Tical;  Tola
Working Environment 50°F – 86°F, 80%RH, non-condensing;  operability guaranteed between 41°F and 104°F (10°C – 30°C, 80%RH, non-condensing;  operability guaranteed between 5°C and 40°C)

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination Display Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix) Operation AC adapter (included) Communication RS232 and USB device (included); GLP/GMP data output with real-time clock Construction Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover Design Features User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages SPECIFICATIONS
Maximum Capacity 120 g
Readability 0.0001 g
Pan Size 90 mm
Internal Calibration InCal™ - Semi Automatic
Draftshield Included
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232;  USB
Dimensions 309 mm x 321 mm x 209 mm (HxLxW)
Display 2-Line LCD with Backlight
Inuse cover Included
Legal for Trade No
Linearity ± 0.0002 g
Minimum Weight (USP, 0.1%, typical) 200 mg
Net Weight 10 lb (4.5 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.0001 g
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Carat;  Custom;  Grain;  Gram;  Hong Kong Tael;  Kilogram;  Mesghal;  Milligram;  Momme;  Newton;  Ounce;  Ounce Troy;  Pennyweight;  Pound;  Singapore Tael;  Taiwan Tael;  Tical;  Tola
Working Environment 50°F – 86°F, 80%RH, non-condensing;  operability guaranteed between 41°F and 104°F (10°C – 30°C, 80%RH, non-condensing;  operability guaranteed between 5°C and 40°C)
