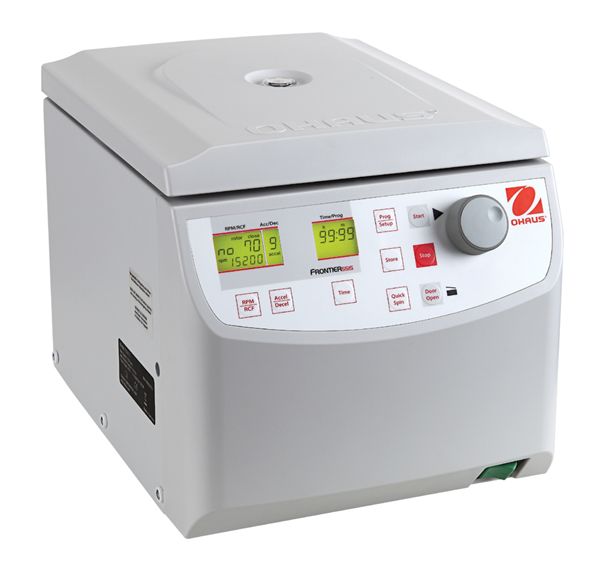

Ohaus FC5515 120V Frontier 5000 Series Micro Centrifuge
- SKU: 30130867
Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.
Speed Range | 200 rpm – 15,200 rpm |
Maximum Relative Centrifuge Force (x g) | 21,953 g |
Maximum Capacity (Rotor) | 44 x 1.5 / 2.0ml; 12 x 5 ml |
Program memories | 99 |
Rotor In Package | Not applicable |
Acceleration Gear | 10 |
Deceleration Gear | 10 |
Dimensions | 11.5 in x 15.5 in x 11.3 in (292 mm x 393 mm x 287 mm) (HxLxW) |
Display | LCD with backlight |
Lid lock | Motor driven |
Net Weight | 38 lb (17 kg) |
Noise Level | ≤60±2 dB(A) |
Power | AC Power (Included) |
Power Consumption | 280 W |
Pre-cool time | Not applicable |
Rotor Compatibility | Angle 24 x 1.5 ml / 2.0 ml; Angle 24 x 1.5 ml / 2.0 ml Sealable; Angle 12 x 5 ml Sealable; Angle 44 x 1.5 ml / 2.0 ml; Angle 4 x 8 place PCR Strips; Angle 30 x 1.5 ml / 2.0 ml Sealable; Hematocrit rotor, 24 × Capillaries |
Rotor Recognition Method | Manual |
Running Time | 10 sec to 99 h 59 min 59 sec; Continuous |
Safety Certification | CE; FCC |
Working Environment | 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.
Applications Centrifugation Display LCD, Backlight, 2 lines Operation AC Power (Included) Communication N/A Construction Brushless quiet motor, small footprint Design Features High sample throughout, multi-safety control, personal program function SPECIFICATIONSSpeed Range | 200 rpm – 15,200 rpm |
Maximum Relative Centrifuge Force (x g) | 21,953 g |
Maximum Capacity (Rotor) | 44 x 1.5 / 2.0ml; 12 x 5 ml |
Program memories | 99 |
Rotor In Package | Not applicable |
Acceleration Gear | 10 |
Deceleration Gear | 10 |
Dimensions | 11.5 in x 15.5 in x 11.3 in (292 mm x 393 mm x 287 mm) (HxLxW) |
Display | LCD with backlight |
Lid lock | Motor driven |
Net Weight | 38 lb (17 kg) |
Noise Level | ≤60±2 dB(A) |
Power | AC Power (Included) |
Power Consumption | 280 W |
Pre-cool time | Not applicable |
Rotor Compatibility | Angle 24 x 1.5 ml / 2.0 ml; Angle 24 x 1.5 ml / 2.0 ml Sealable; Angle 12 x 5 ml Sealable; Angle 44 x 1.5 ml / 2.0 ml; Angle 4 x 8 place PCR Strips; Angle 30 x 1.5 ml / 2.0 ml Sealable; Hematocrit rotor, 24 × Capillaries |
Rotor Recognition Method | Manual |
Running Time | 10 sec to 99 h 59 min 59 sec; Continuous |
Safety Certification | CE; FCC |
Working Environment | 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
