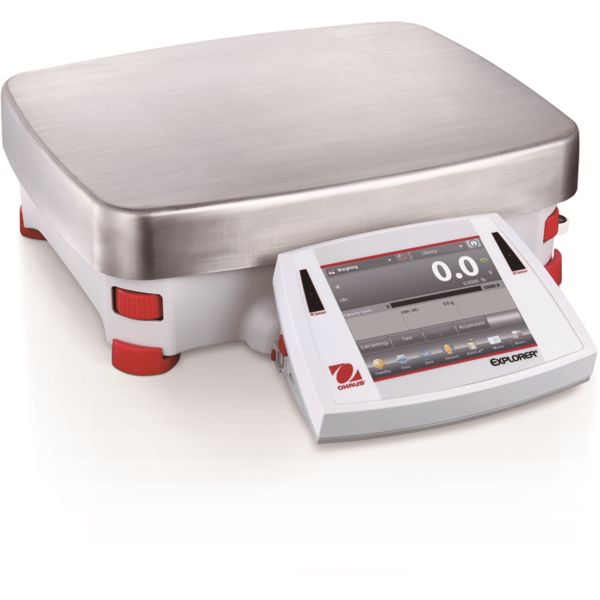

Ohaus EX12001 Explorer Precision High Capacity

Ohaus EX12001 Explorer Precision High Capacity

  • SKU: 30057099
$4,272.10 $5,026.00
Quote Request

OHAUS Explorer High Capacity balances provide unmatched functionality in a line of high-performance, high-capacity balances unlike any other on the market! This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements.

Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan
SPECIFICATIONS
Maximum Capacity 12,000 g
Readability 0.1 g
Pan Size 14.8 in x 12.2 in (377 mm x 311 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield
Auxiliary Display Model Available as an Accessory
Battery Life 10 Hours with Rechargeable Battery
Communication Ethernet (Available as an Accessory);  RS232 (Included);  USB (Included)
Dimensions 4.7 in x 17.44 in x 14.9 in (120 mm x 443 mm x 377 mm) (HxLxW)
Display Full-color 5.7 in VGA, touch screen
In-use cover Included
Legal for Trade Not Applicable
Linearity ± 0.2 g
Minimum Weight (USP, 0.1%, typical) 210 g
Net Weight 22 lb (10 kg)
Pan Construction Stainless Steel
Power AC Power (Included);  Rechargeable Battery (Not Included)
Repeatability, typical 0.1 g
Stabilization Time 1 s
Tare Range To capacity by subtraction
Units of Measurement Gram;  Milligram;  Kilogram;  Carat;  Ounce;  Ounce Troy;  Pound;  Pennyweight;  Grain;  Newton;  Momme;  Mesghal;  Hong Kong Tael;  Singapore Tael;  Taiwan Tael;  Tical;  Tola;  Baht;  Custom
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
