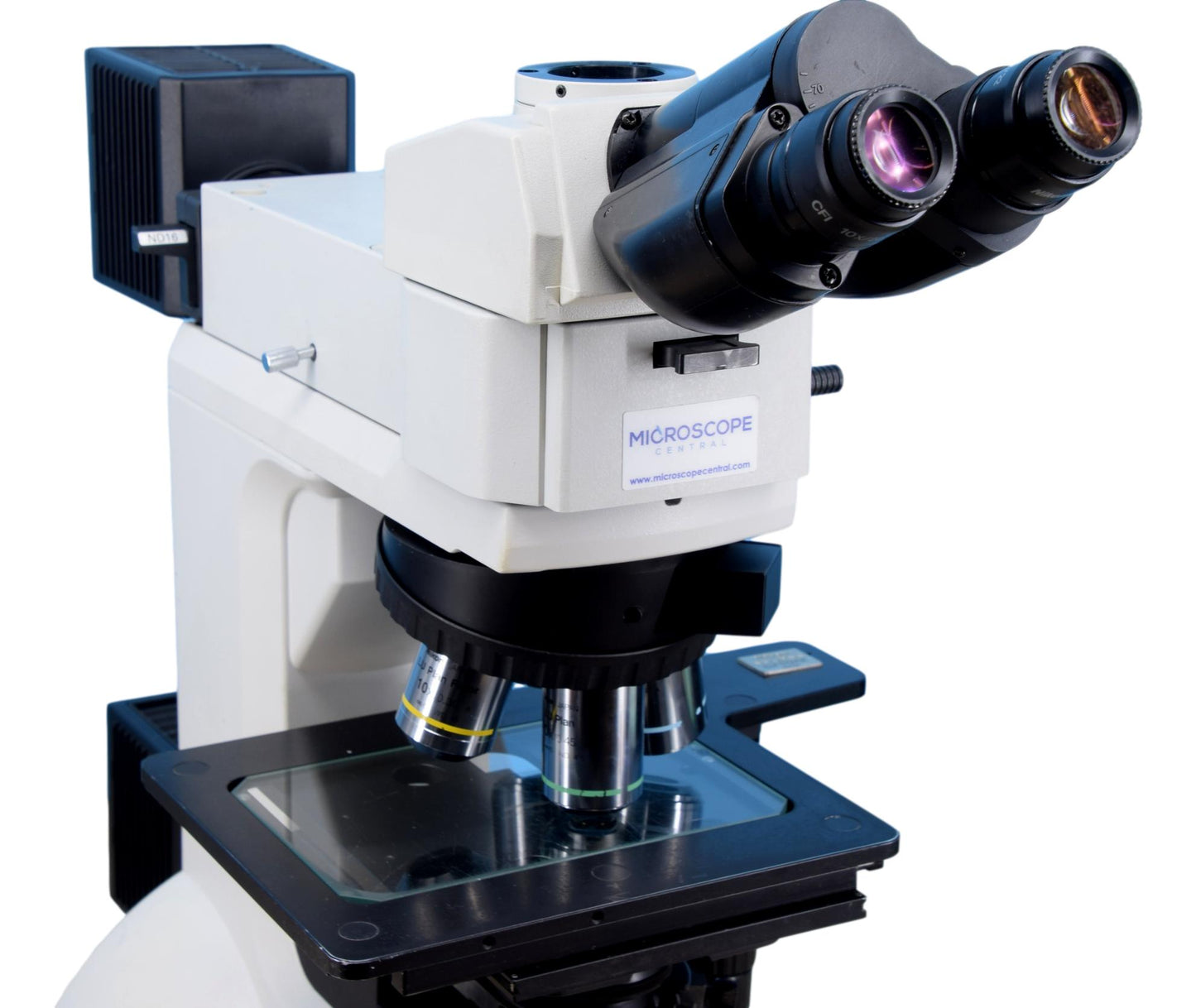

Nikon LV100 Brightfield & Darkfield Transmitted & Reflected Light Microscope

Recently viewed

Nikon LV100 Brightfield & Darkfield Transmitted & Reflected Light Microscope
Nikon LV100 Brightfield & Darkfield Transmitted & Reflected Light Microscope

Nikon LV100 Brightfield & Darkfield Transmitted & Reflected Light Microscope

  • SKU: LV100-BF/DF
$11,295.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote

The Nikon LV100 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield & darkfield capabilities. The trinocular head allows for the addition of a camera. The 10x  eyepieces have a 22mm field of view. This comes with NCB11, ND4, and ND16 filters. The reflected light illuminator provides brightfield or darkfield illumination. The 5 position B.F. / D.F. nosepiece has 10x, 20x, & 50x objectives - we can customize this as needed The large 6 x 4 stage has a glass stage plate and below is the LWD 0.65 N.A. condenser. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.

Nikon LV100 Specifications
Head: Trinocular
Eyepieces: 10x/22mm FOV
Reflected Light: Reflected light module w/ NCB11, ND4, ND16
Nosepiece Quintuple
Objectives: Lu Plan Fluor 10x BD, LU Plan 20x BD, LU Plan Fuor 50x BD
Stage: 6 x 4 Stage
Condenser: LWD 0.65 N.A. Condenser
Light Source: Halogen Reflected & Transmitted
Warranty: Two Year Mechanical

The Nikon LV100 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield & darkfield capabilities. The trinocular head allows for the addition of a camera. The 10x  eyepieces have a 22mm field of view. This comes with NCB11, ND4, and ND16 filters. The reflected light illuminator provides brightfield or darkfield illumination. The 5 position B.F. / D.F. nosepiece has 10x, 20x, & 50x objectives - we can customize this as needed The large 6 x 4 stage has a glass stage plate and below is the LWD 0.65 N.A. condenser. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.

Nikon LV100 Specifications
Head: Trinocular
Eyepieces: 10x/22mm FOV
Reflected Light: Reflected light module w/ NCB11, ND4, ND16
Nosepiece Quintuple
Objectives: Lu Plan Fluor 10x BD, LU Plan 20x BD, LU Plan Fuor 50x BD
Stage: 6 x 4 Stage
Condenser: LWD 0.65 N.A. Condenser
Light Source: Halogen Reflected & Transmitted
Warranty: Two Year Mechanical
