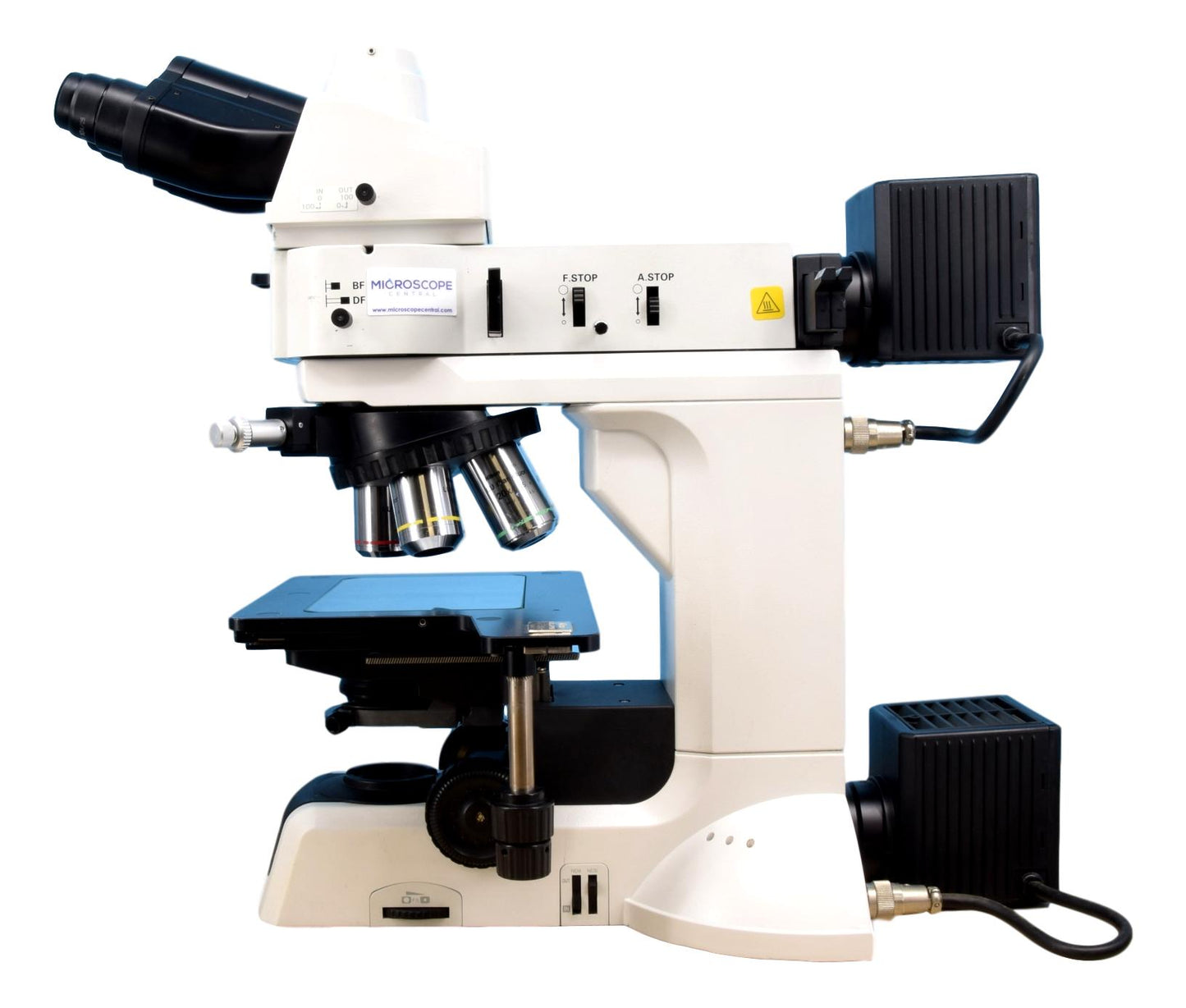

Nikon LV100 Brightfield, Darkfield, DIC Transmitted & Reflected Light Microscope

Recently viewed

Nikon LV100 Brightfield, Darkfield, DIC Transmitted & Reflected Light Microscope
Nikon LV100 Brightfield, Darkfield, DIC Transmitted & Reflected Light Microscope

Nikon LV100 Brightfield, Darkfield, DIC Transmitted & Reflected Light Microscope

  • SKU: LV100-BF-DF-DIC
$99,999.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote
  • Order within

The Nikon LV100 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield, darkfield, and DIC capabilities. The trinocular head allows for the addition of a camera. The 10x CFUW ultra-widefield eyepieces have a 25mm field of view. This comes with NCB11, ND4, and L2-PO filters. The nosepiece has an insertable L-DIC prism for achieving differential interference contrast. The 5 position B.F. / D.F. nosepiece has L Plan Brightfield 2.5 and Lu Plan Fluor Brightfield / Darkfield 5x, 10x, 20x, and 100x objectives. The large 6 x 4 stage has a glass stage plate and below is the LWD 0.65 N.A. condenser. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.

Nikon LV100 Specifications
Head: Trinocular
Eyepieces: CFUW 10x/25mm FOV
Reflected Light: Reflected light module w/ NCB11, ND4, LD-PO
DIC: L-DIC Prism, Polarizer/Analyzer For DIC
Nosepiece Quintuple
Objectives:

L Plan Brightfield 2.5x

Lu Plan Fluor Brightfield / Darkfield 5x, 10x, 20x, 100x

Stage: 6 x 4 Stage
Condenser: LWD 0.65 N.A. Condenser
Light Source: Halogen Reflected & Transmitted
Warranty: Two Year Mechanical

The Nikon LV100 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield, darkfield, and DIC capabilities. The trinocular head allows for the addition of a camera. The 10x CFUW ultra-widefield eyepieces have a 25mm field of view. This comes with NCB11, ND4, and L2-PO filters. The nosepiece has an insertable L-DIC prism for achieving differential interference contrast. The 5 position B.F. / D.F. nosepiece has L Plan Brightfield 2.5 and Lu Plan Fluor Brightfield / Darkfield 5x, 10x, 20x, and 100x objectives. The large 6 x 4 stage has a glass stage plate and below is the LWD 0.65 N.A. condenser. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.

Nikon LV100 Specifications
Head: Trinocular
Eyepieces: CFUW 10x/25mm FOV
Reflected Light: Reflected light module w/ NCB11, ND4, LD-PO
DIC: L-DIC Prism, Polarizer/Analyzer For DIC
Nosepiece Quintuple
Objectives:

L Plan Brightfield 2.5x

Lu Plan Fluor Brightfield / Darkfield 5x, 10x, 20x, 100x

Stage: 6 x 4 Stage
Condenser: LWD 0.65 N.A. Condenser
Light Source: Halogen Reflected & Transmitted
Warranty: Two Year Mechanical
