Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC

Recently viewed

Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC
Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC
Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC
Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC

Nikon L200N Semiconductor Microscope - Brightfield, Darkfield, DIC

  • SKU: N-L200N
$42,995.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Quote Request

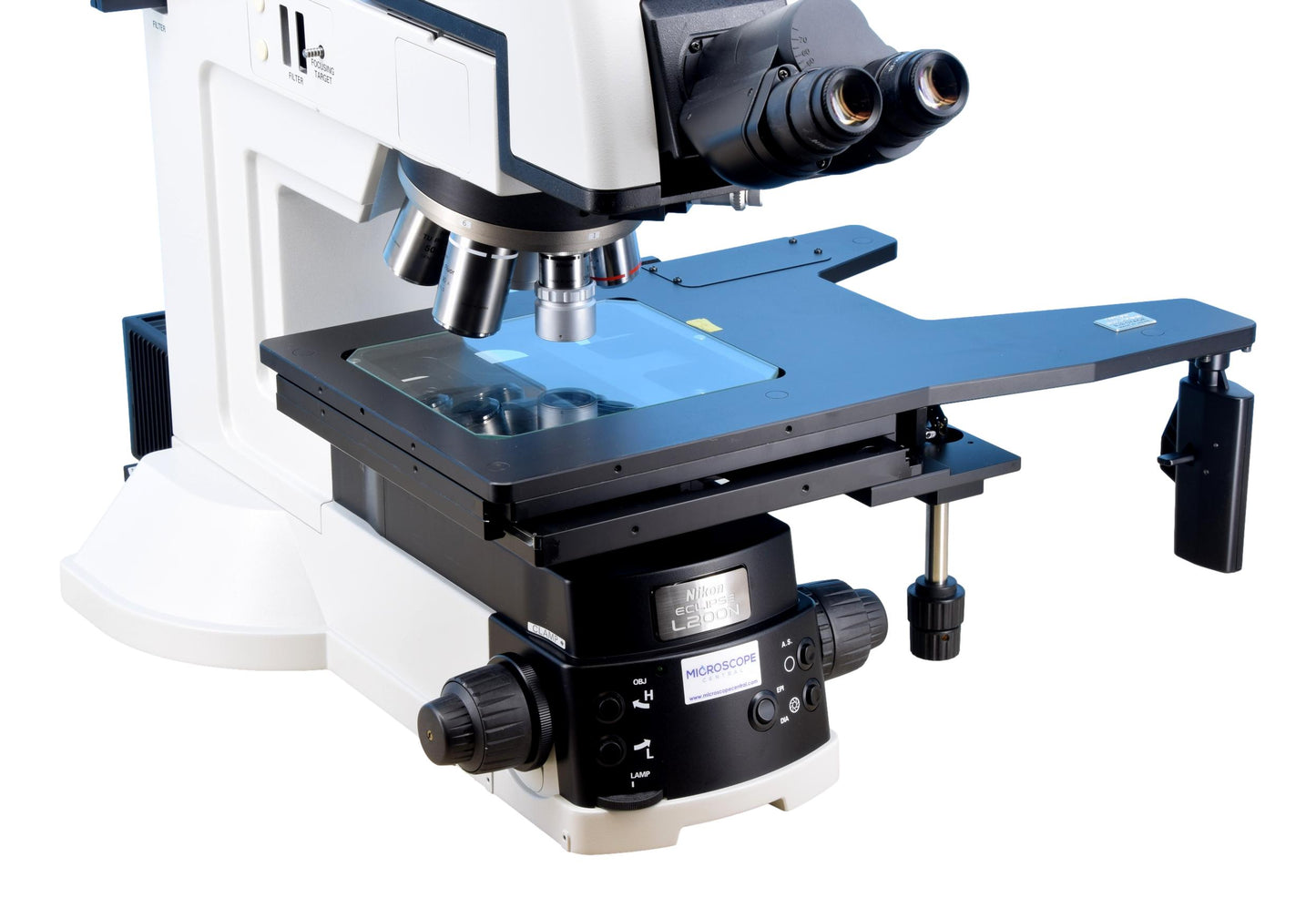

This Nikon L200N is configured for brightfield, darkfield, and DIC observation and has transmitted and reflected light. It comes with an ergonomic tilting trinocular tube with 0.55x c-mount and DS-Fi3 camera. The Ultra-Wide field eyepieces provide a 25mm field of view. The 6 position motorized nosepiece comes with T Plan EPI 1x, Lu Plan Fluor BD 5x, and TU Plan Fluor 10x, 20x, 50x, 100x objectives. For polarization and DIC the scopes comes with the Nikon L2AN Analyzer, L2-RPO polarizer, and L-DICH prism. The large 8 x 8 stage has XY and clutch control. This used microscope is in excellent like new condition. The camera has been tested and working, but does not come with any software.

Specifications
Head: L2-TT2A Trinocular Tilting Tube F/L200N
Eyepieces: CFI 10x UW Ultra-Wide Eyepiece, F.O.V. 25mm
Nosepiece Motorized 6 Position
DIC:

L-DIHC DIC Prism HC

L2-RPO Rotatable Polarizer for L200/L300

L2AN Analyzer

Objectives:

T Plan EPI 1x

Lu Plan Fluor BD 5x

TU Plan Fluor BD 10x, 20x, 50x, 100x

Stage: L2-S8A, 8X8 Stage For L200N
Light Source:

LV-LH50PC Precentered Lamphouse

100 Watt Halogen - Reflected & Transmitted x 2

Warranty: 1 Year Mechanical, 6 Month Electrical



This Nikon L200N is configured for brightfield, darkfield, and DIC observation and has transmitted and reflected light. It comes with an ergonomic tilting trinocular tube with 0.55x c-mount and DS-Fi3 camera. The Ultra-Wide field eyepieces provide a 25mm field of view. The 6 position motorized nosepiece comes with T Plan EPI 1x, Lu Plan Fluor BD 5x, and TU Plan Fluor 10x, 20x, 50x, 100x objectives. For polarization and DIC the scopes comes with the Nikon L2AN Analyzer, L2-RPO polarizer, and L-DICH prism. The large 8 x 8 stage has XY and clutch control. This used microscope is in excellent like new condition. The camera has been tested and working, but does not come with any software.

Specifications
Head: L2-TT2A Trinocular Tilting Tube F/L200N
Eyepieces: CFI 10x UW Ultra-Wide Eyepiece, F.O.V. 25mm
Nosepiece Motorized 6 Position
DIC:

L-DIHC DIC Prism HC

L2-RPO Rotatable Polarizer for L200/L300

L2AN Analyzer

Objectives:

T Plan EPI 1x

Lu Plan Fluor BD 5x

TU Plan Fluor BD 10x, 20x, 50x, 100x

Stage: L2-S8A, 8X8 Stage For L200N
Light Source:

LV-LH50PC Precentered Lamphouse

100 Watt Halogen - Reflected & Transmitted x 2

Warranty: 1 Year Mechanical, 6 Month Electrical
