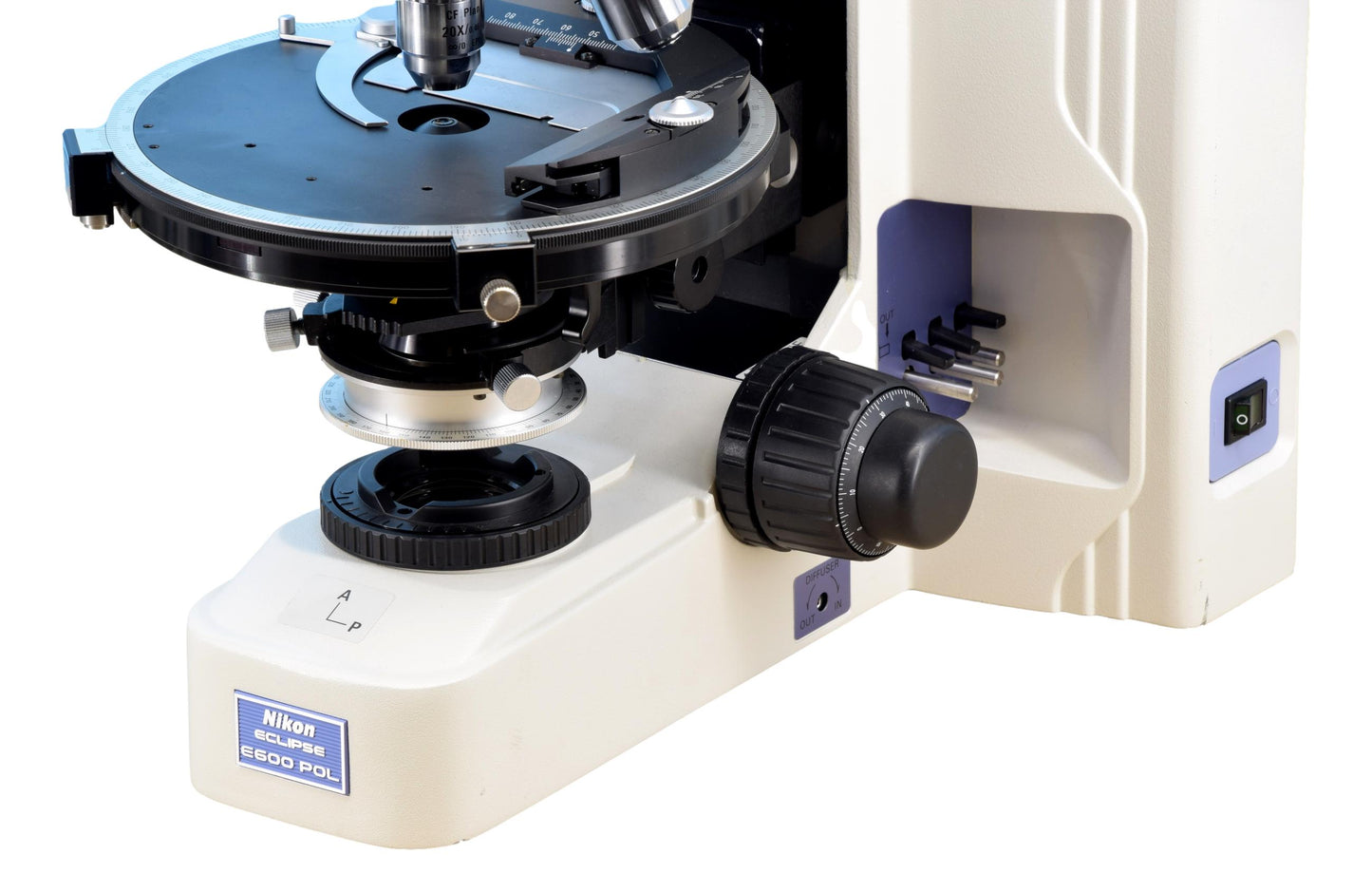

Nikon E600 POL Reflected & Transmitted Polarizing Light Microscope
- SKU: ME600-POL
This Nikon E600 POL microscope is configured for reflected and transmitted light. It comes with a three position trinocular head and CFI 10x/22mm FOV focusing eyepieces, one with a crossline reticle. The reflected light illuminator has a 12v 100w lamphouse. The P-I bertrand lens module features a focusable bertrand lens and has the Nikon P-CL which carries the quarter and full wave plates. The analyzer is fully rotatable. A 5 position nosepiece contains CFI Plan EPI 10x, 20x, 50x, and 100x objective lenses. The rotating stage comes with an XY mechanical slide holder. The flip out condenser has a rotatable polarizer.
This microscope can be fully customized to meet your needs. This used microscope comes fully serviced and cleaned. The rotating stage has some play - when rotating the stage the specimen can go off-center if you rotate fast / with force but it will re-center itself once released.
Nikon ME600 POLĀ Specifications | |
---|---|
Head: | Trinocular Head |
Eyepieces: | CFI 10x/20mm, 1 w/ cross-hair reticle |
Intermediate Module: |
Focusable Bertrand Lens 360 Degree Rotating Analyzer 1st Order Red & 1/4 Wave Plate |
Nosepiece | 5 Position |
Objectives: | CFI Plan EPI 10x, 20x, 50x, 100x Objectives |
Stage: | Circular 360 Degree Rotating w Mechanical Stage |
Condenser: | Strain Free Flip Out Condenser w/ Bottom Mounted Polarizer |
Light Source: | Reflected & Transmitted 12v 100w |
Warranty: | 1 Year Mechanical |
This Nikon E600 POL microscope is configured for reflected and transmitted light. It comes with a three position trinocular head and CFI 10x/22mm FOV focusing eyepieces, one with a crossline reticle. The reflected light illuminator has a 12v 100w lamphouse. The P-I bertrand lens module features a focusable bertrand lens and has the Nikon P-CL which carries the quarter and full wave plates. The analyzer is fully rotatable. A 5 position nosepiece contains CFI Plan EPI 10x, 20x, 50x, and 100x objective lenses. The rotating stage comes with an XY mechanical slide holder. The flip out condenser has a rotatable polarizer.
This microscope can be fully customized to meet your needs. This used microscope comes fully serviced and cleaned. The rotating stage has some play - when rotating the stage the specimen can go off-center if you rotate fast / with force but it will re-center itself once released.
