Nikon E200 POL Polarized Light Microscope

Recently viewed

Nikon E200 POL Polarized Light Microscope
Nikon E200 POL Polarized Light Microscope

Nikon E200 POL Polarized Light Microscope

  • SKU: E200-POL
$4,495.00
Request Quote

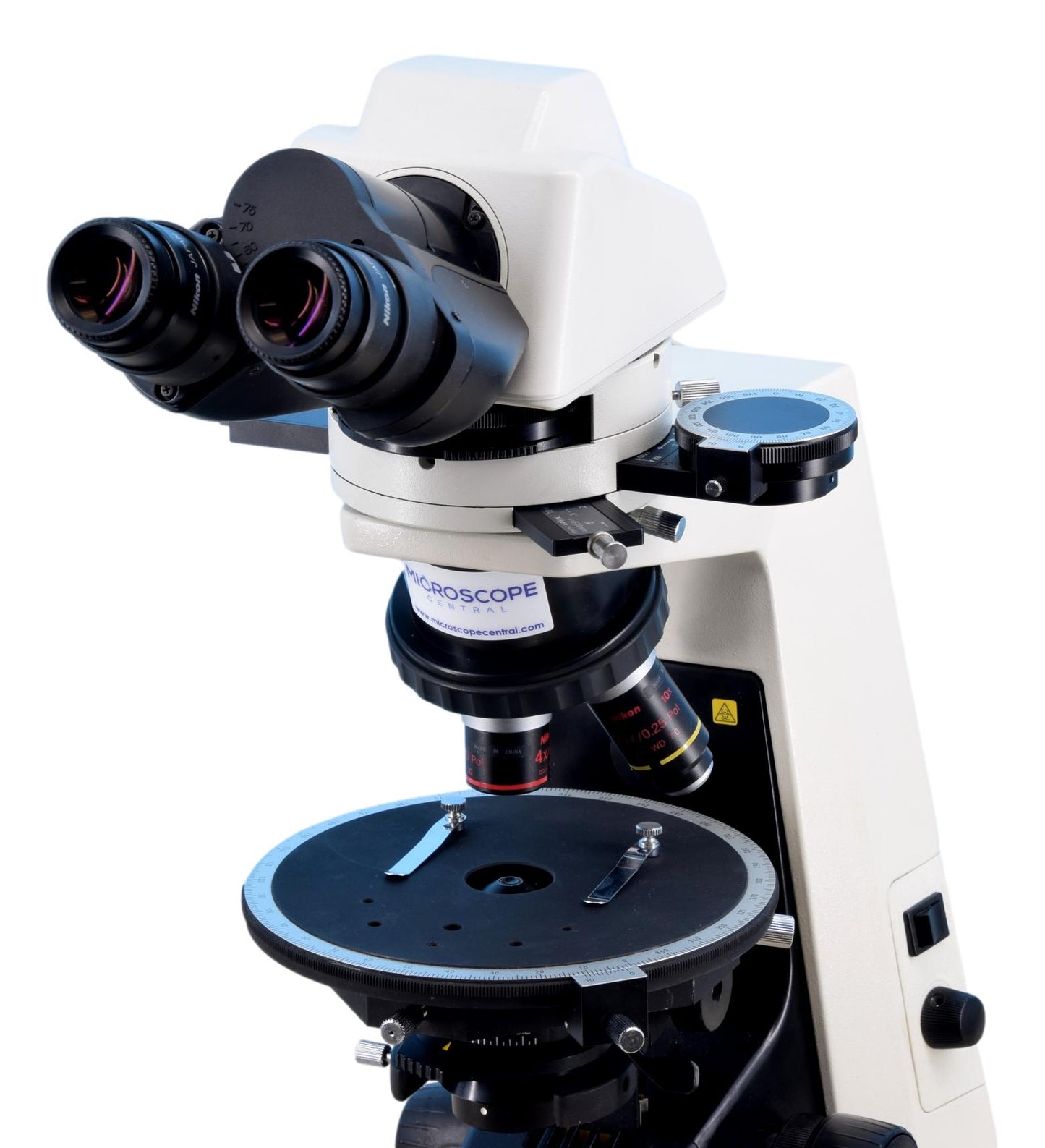

This Nikon E200 POL microscope is ready to examine your thin sections. The binocular head contains a pair of 10x eyepieces, one containing a cross-hair reticle. The intermediate tube contains the built-in focusable Bertrand lens, rotating analyzer, and slider with both first order and 1/4 wave plates. The four position nosepiece is fixed, and has 4x, 10x, and 40x strain free objective lenses. The 360 degree rotating stage comes with a pair of stage clips. The strain free flip out condenser comes with an attachable bottom mounted polarizer. This used microscope comes fully serviced and working like new with a warranty.

Nikon E200 POL Specifications
Head: Binocular Head
Eyepieces: CFI 10x/20mm, 1 w/ cross-hair reticle
Intermediate Module:

Focusable Bertrand Lens

360 Degree Rotating Analyzer

1st Order Red & 1/4 Wave Plate

Nosepiece Quadruple
Objectives: E Plan POL Strain Free 4x, 10x ,40x
Stage: Circular 360 Degree Rotating w/ Stage Clips
Condenser: Strain Free Flip Out Condenser w/ Bottom Mounted Polarizer
Light Source: Variable 6v 30w
Warranty: 1 Year Mechanical
