Nikon E200 HD Digital Microscope Package

Recently viewed

Nikon E200 HD Digital Microscope Package
Nikon E200 HD Digital Microscope Package

Nikon E200 HD Digital Microscope Package

  • SKU: MCA762JJ-HD
$4,000.00
Screen
Request Quote

The Nikon E200 Trinocular HD Digital Microscope Package is the perfect digital microscope set-up for both laboratory or teaching applications. The multi-output HD camera allows for both USB output and HDMI output to a HD monitor. You have the option of purchasing the set-up with an 11.6" retina display screen which attaches to the camera for an all in one streamlined solution. Purchase the Nikon digital microscope without screen and you can output USB to computer or HDMI to your own HD monitor or projector.

On board software allows for great control of the camera without the use of a computer via HDMI output. The Nikon E200 trinocular microscope includes a mouse which allows you to capture images/videos to a removable SD card as well as recall and play these image/videos back. Additionally, this Nikon digital microscope also allows side-by-side image comparison of a capture vs live image, on screen cross hair, and more.

Using USB output the camera will connect to a PC where you can take advantage of the free software which allows for image/video capture, image/video playback, annotation, measurement, stacking, stitching, and more.

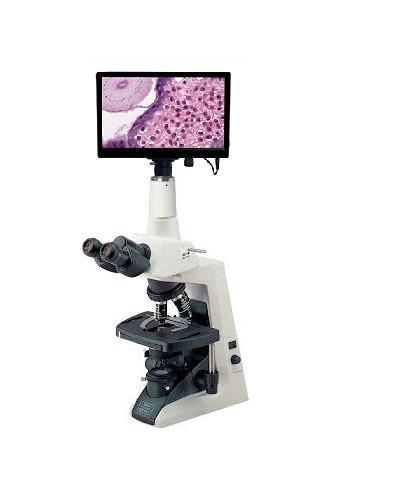

***Select "With Screen" any your system will come with the 11.6" retina display screen as pictured***

Nikon Digital Microscope Specifications:

Head: Trinocular 30 degree inclined w/ photo tube & c-mount
Eyepieces: CFI E 10x (20mm)
Objectives: CFI E Plan Achromat 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder
Condenser: E2 Abbe Condenser N.A. 1.25, Aperture diaphragm with position guide markings for respective CFI E Plan objectives
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination
Misc: Dust Cover, Power Cord, Manual
Warranty: 5 Year Mechanical 1 Year Electrical



Camera Specifications:
Screen (OPTIONAL)
Mountable 11.6" retina display screen (hardware included)
Resolution (Live): 1920X1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
