Nikon 80i Nomarski DIC Fluorescence Microscope

Recently viewed

Nikon 80i Nomarski DIC Fluorescence Microscope
Nikon 80i Nomarski DIC Fluorescence Microscope

Nikon 80i Nomarski DIC Fluorescence Microscope

  • SKU: 80i-DIC-FL
$15,500.00
  • Fully Customizable
  • Add A Camera
  • Can Change The Stand, Head, Objectives
  • Serviced By Experienced Techs
  • With Warranty
Request Quote

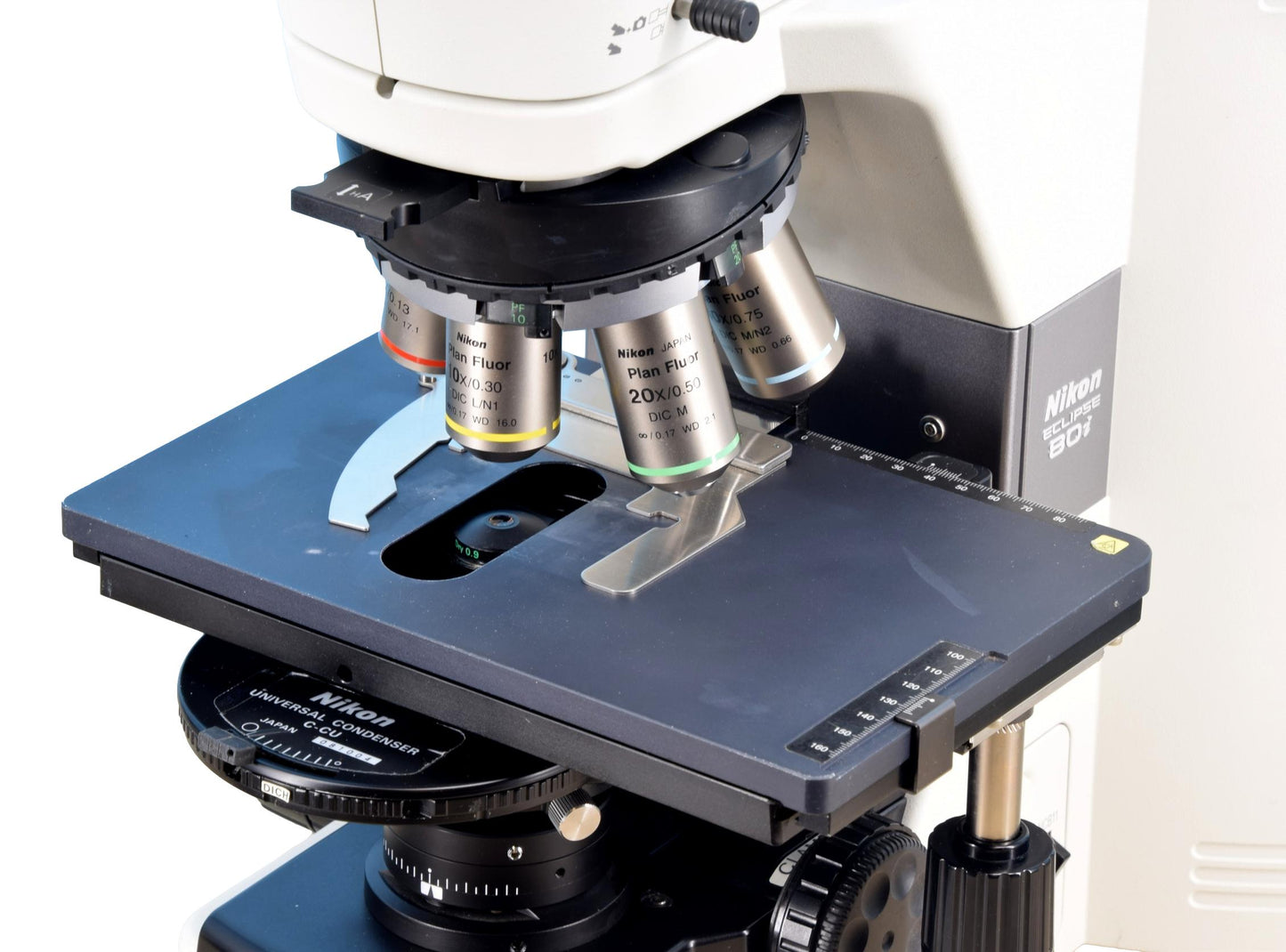

This Nikon 80i microscope is configured for brightfield, fluorescence, and DIC applications. It comes with an ergonomic tilting head that has a photo port in the rear for adding a c-mount and camera and comes with a pair of 10x/22mm FOV eyepieces. The fixed analyzer goes into the nosepiece slot on the DIC nosepiece. The microscope comes with Plan Fluor 4x, 10x, 20x, 40x, and 100x oil objectives. It has the DIC nosepiece prisms for the 10x, 20x, 40x, and 100x objectives. The C-CU universal condenser has a flip top head with a 0.9 N.A. condenser top lens with a brightfield setting and has DIC L, M, and H prisms installed. The polarizer secures over the lamphouse and contains the lambda plate. The 6 position fluorescence turret does not come with any filters, we can added them as required for an additional cost. It will come with the 6 position turret, mercury lamphouse, and power supply. This microscope comes fully serviced with a warranty.



Head Type
Ergonomic Tilting Telescoping w/ Photo Port
Eyepieces: 10x/22
Fluorescence: 6 Position Fluorescence Module w/ Mercury Lamphouse & Power Supply
Nosepiece: DIC Nosepiece w/ Analyzer w/ DIC Prisms For 10x, 20x, 40x, 100x Objectives
Objectives: Plan Fluor 4x, 10x, 20x, 40x, 100x Oil
Stage: Mechanical XY w/ Slide Holder
Condenser: C-CU Universal Condenser w/ DIC L, M, H Prisms
Polarizer: Polarizer w/ Lambda Plate
Light Source: Halogen Illumination - Transmitted

This Nikon 80i microscope is configured for brightfield, fluorescence, and DIC applications. It comes with an ergonomic tilting head that has a photo port in the rear for adding a c-mount and camera and comes with a pair of 10x/22mm FOV eyepieces. The fixed analyzer goes into the nosepiece slot on the DIC nosepiece. The microscope comes with Plan Fluor 4x, 10x, 20x, 40x, and 100x oil objectives. It has the DIC nosepiece prisms for the 10x, 20x, 40x, and 100x objectives. The C-CU universal condenser has a flip top head with a 0.9 N.A. condenser top lens with a brightfield setting and has DIC L, M, and H prisms installed. The polarizer secures over the lamphouse and contains the lambda plate. The 6 position fluorescence turret does not come with any filters, we can added them as required for an additional cost. It will come with the 6 position turret, mercury lamphouse, and power supply. This microscope comes fully serviced with a warranty.



Head Type
Ergonomic Tilting Telescoping w/ Photo Port
Eyepieces: 10x/22
Fluorescence: 6 Position Fluorescence Module w/ Mercury Lamphouse & Power Supply
Nosepiece: DIC Nosepiece w/ Analyzer w/ DIC Prisms For 10x, 20x, 40x, 100x Objectives
Objectives: Plan Fluor 4x, 10x, 20x, 40x, 100x Oil
Stage: Mechanical XY w/ Slide Holder
Condenser: C-CU Universal Condenser w/ DIC L, M, H Prisms
Polarizer: Polarizer w/ Lambda Plate
Light Source: Halogen Illumination - Transmitted
