National DCX5-214-RLED Digital WiFi Microscope

Recently viewed

National DCX5-214-RLED Digital WiFi Microscope

National DCX5-214-RLED Digital WiFi Microscope

  • SKU: DCX5-214-RLED
$806.00 $949.00
Quote Request

National is proud to introduce the first WiFi digital microscope series. The DCX5-214LED represents the latest in educational technology. With included Moticam X5, this WiFi digital microscope transmits its live image to iOS and Android devices.

The DCX5-214LED features high-speed, full resolution imaging technology built into one of our most popular microscopes. Use it as a conventional microscope or share live images with your class using WiFi tablets or wireless laptops. High-speed, high-resolution to fit any budget.

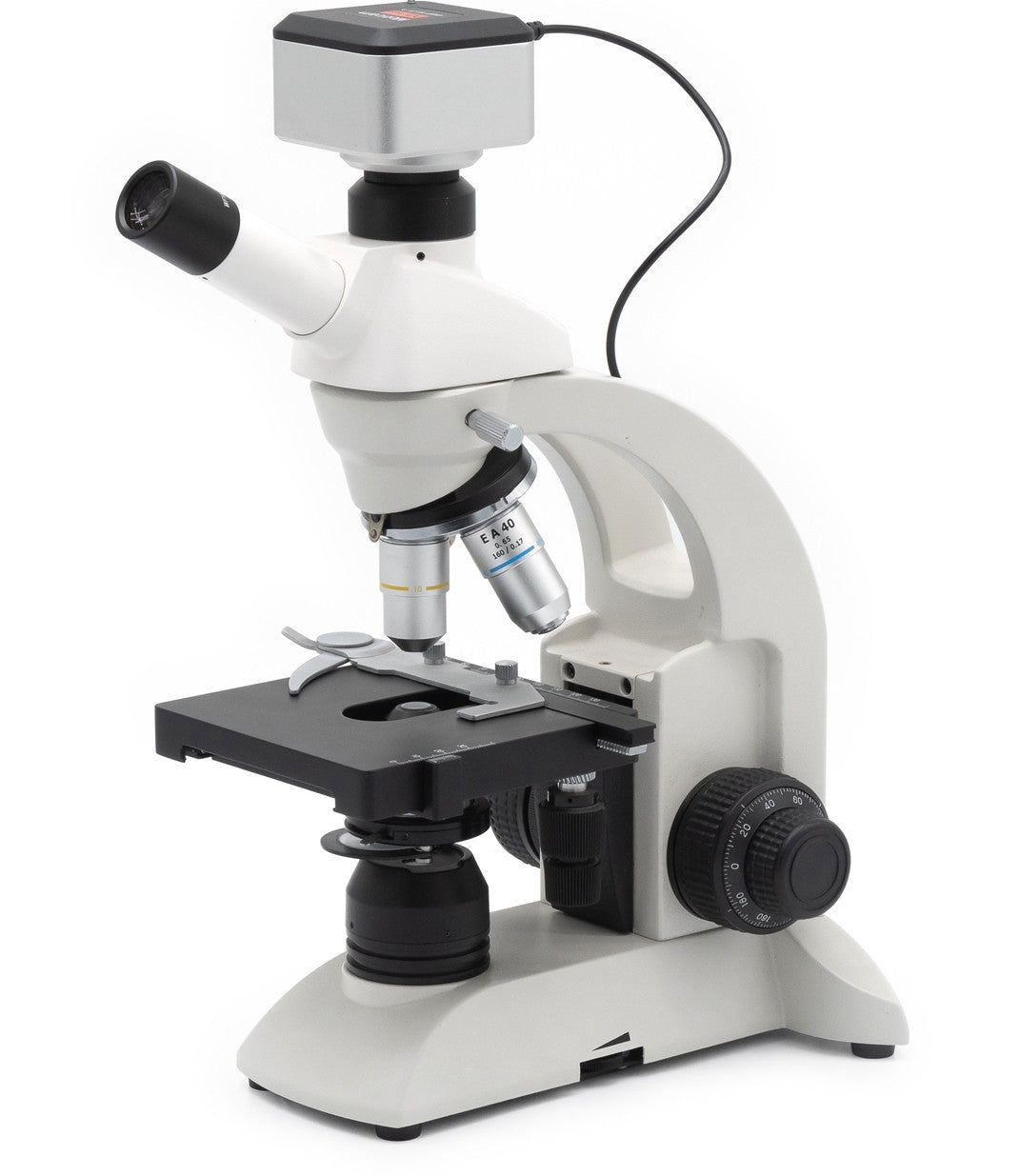

Please note: Pictured is a DCX5-213-RLED.

OPTICAL SYSTEM

  • Widefield 10x eyepiece with pointer. Accepts optional #965-160 eyepiece reticle.
  • 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100x (1.25 N.A.) objectives. All are achromatic, parfocalled, parcentered and color-coded.
  • DIN standard 100x (1.25 N.A.) available on DCX5-214-RLED model only
  • 4-hole objective turret, reverse position, ball-bearing mounted for smooth, precise changes in magnification.

ILLUMINATION

  • LED light rated up to 50,000 hours life, illumination equal to a 20 watt tungsten bulb.
  • Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged - no danger of overcharging batteries and shortening battery life. No expensive recharger station needed. Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
  • Single 8 hour charge allows up to 50 hours of use.
  • Rheostat intensity control

FOCUSING

  • Coaxial focusing controls.
  • Stage moves up or down, eyepiece and body remain fixed.
  • Slip clutch prevents damage to focusing system.
  • Tension adjustment eliminates stage drift.
  • Safety rack stop prevents damage to slides and objective lenses.

STAGE

  • Large 135mm x 135mm (5 1/4 in. x 5 1/4 in.) stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.
  • 1.25 N.A. Abbe condenser with spiral focusing mount, iris diaphragm, swing-out filter holder, blue filter supplied.

FRAME

  • Rugged cast metal, gray enamel finish.
  • Base dimensions:
  • Height: 380mm (15 in.)
  • Net wt. 4.6 kgs (10 lbs).

CAMERA SPECIFICATIONS

  • Sensor type: CMOS
  • Resolution: 4.0 MP
  • WiFi Resolution: 1280 x 1024 pixels
  • Chip Size: 1/3 in.
  • Focusable Lens: 12 mm

REQUIRED SPECIFICATIONS

  • Processor: 2 Ghz or above
  • RAM: 1GB
  • Hard Disk: 500MB (Free Space)
  • Video Card: 128 MB
  • WiFi Adapter

SOFTWARE

  • Motic software operates on Windows 7 or above & MAC OSX

MICROSCOPE WARRANTY
