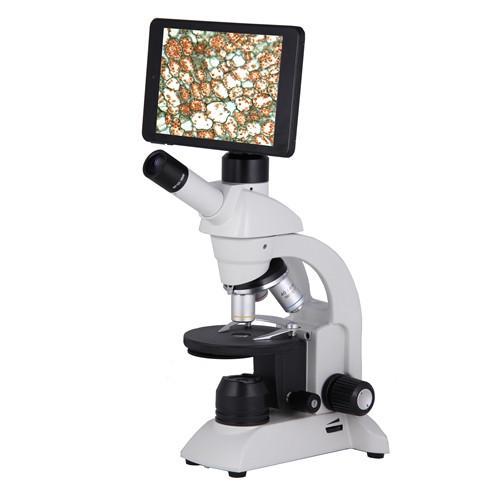

National DCS-205-RLED Digital Tablet WiFi Microscope
National is proud to introduce our first digital tablet microscopes. The DCS-205-RLED represents the latest in educational technology. Like the Moticam X, this WiFi digital tablet transmits live images to iOS or Android devices.
The DCS-205-RLED features high-speed, full resolution imaging technology built into one of our most popular microscopes. Use it as a conventional microscope or share live images with your class using WiFi tablets, wireless laptops, and HD-ready LCD monitors/projectors through HDMI.
OPTICAL SYSTEM
-
Widefield 10x /18mm eyepiece
-
30° inclined forward-facing monocular head
-
4X, 10X and 40X Achromatic objectives
ILLUMINATION
-
70mW/3.5v rechargeable LED illumination with intensity control
FOCUSING
-
Seperate coarse and fine focus
STAGE
-
Floating and rotating stage with unique one-touch stage clips
FRAME
-
Rugged cast aluminum, gray enamel finish.
-
Base dimensions:
-
Height: 13.5 in.
-
Net wt.
PACKING
-
Individual: Coming Soon
-
Master carton pack: Coming Soon
CAMERA SPECIFICATIONS
-
Resolution: 5.0 MP (2592 x 1944 pixels)
-
Sensor Type: CMOS
-
Chip Size: 1/2.5"
TABLET SPECIFICATIONS
-
Screen Size: 7 in.
-
Screen Resolution: 800 x 1280 pixels
-
WiFi: 802.11b/g/n
-
Ports: DC 5V Power Input, Mini HDMI, Micro SD Card Slot, 3.5mm Audio
-
HDMI Output: 1080
-
Battery: Rechargeable 3.7V/3000mAh
REQUIRED SPECIFICATIONS
-
Android or iOS Ready Device
-
WiFi Adapter (PC and MAC only)
SOFTWARE
-
Built-in MotiConnect T App
-
Free MotiConnect app available from App Store or Google Play Store
-
Optional downloadable Motic software operates on Windows XP or above & MAC OSX (with registration on National Optical website)
MICROSCOPE WARRANTY
-
1 year limited tablet warranty
