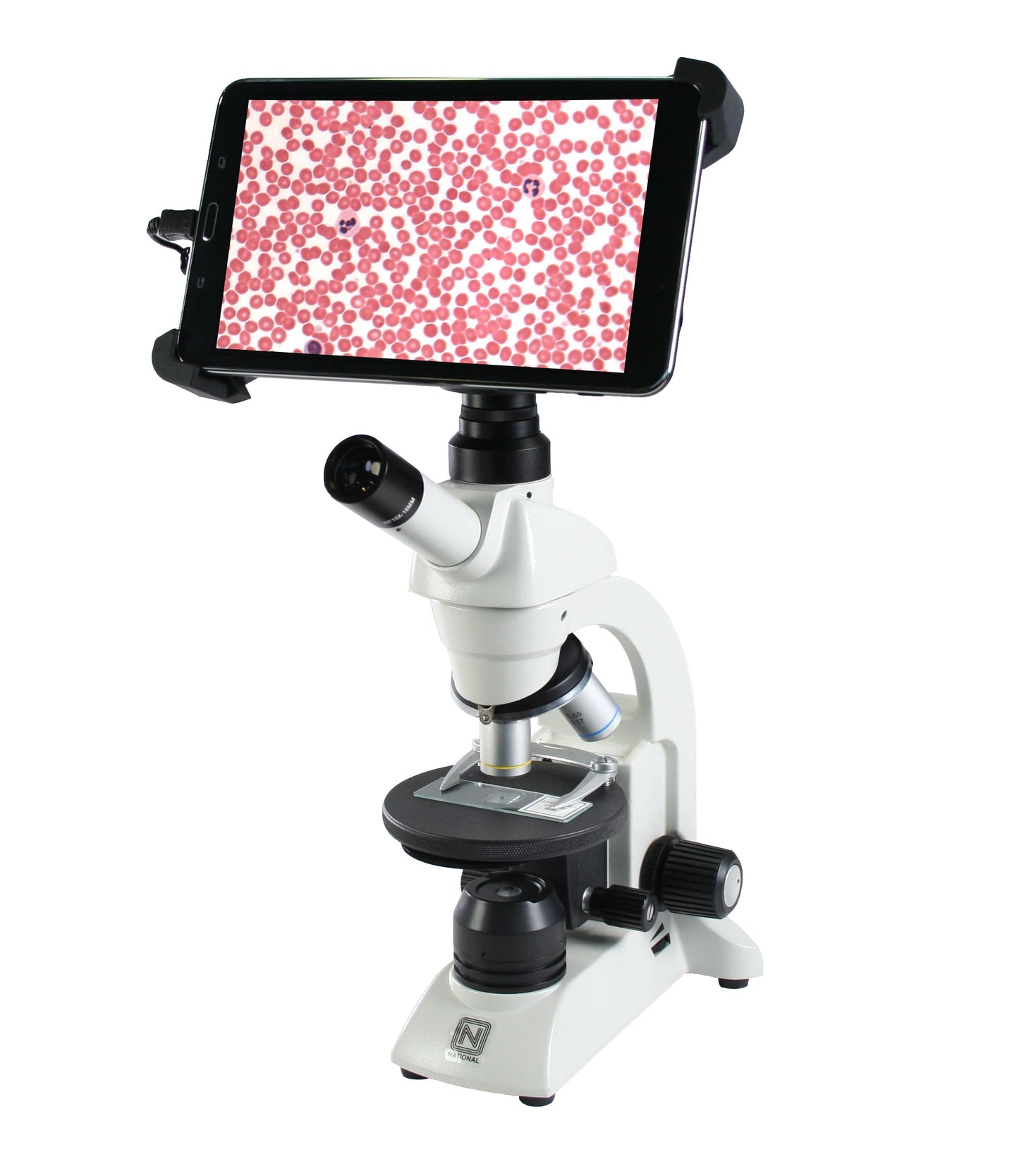

National BTW1-205-RLED - LED Microscope with Detachable Tablet

National BTW1-205-RLED - LED Microscope with Detachable Tablet

  • SKU: BTW1-205-RLED
$707.00 $832.00
Request Quote

Introducing National Optical & Scientific Instruments' new line of digital compound microscopes with detachable 8" LCD tablet! The BTW1-205-LED features high speed, full-resolution imaging technology built into some of our most popular microscopes.

This WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and wireless devices. Tablet includes preloaded Motic apps

Connect, view, and share images easily and affordably with the BTW1-205-RLED.


OPTICAL SYSTEM

  • Widefield 10x /18mm eyepiece
  • 30° inclined forward-facing monocular head
  • 4X, 10X and 40X Achromatic objectives

ILLUMINATION

  • 70mW/3.5v rechargeable LED illumination with intensity control

FOCUSING

  • Seperate coarse and fine focus

STAGE

  • Floating and rotating stage with unique one-touch stage clips

FRAME

  • Rugged cast aluminum, gray enamel finish

PACKING

  • Molded styrofoam container
  • Tablet shipped in same box with microscope
  • Individual: Ship wt. 8.2 kgs (18 lbs), Dimensions 28x23x64cm (11x9x25 in.)
  • Master carton pack 1 each: Ship wt. 8.2 kgs (18 lbs), Dimensions 28x23x64cm (11x9x25 in.)

    TABLET SPECIFICATIONS

    • 8" LCD Android tablet with 1280x800 screen resolution
    • Connection: WiFi; micro SD card
    • WiFi Resolution 1920x1080 / 1280x720
    • 4.0MP capture resolution
    • WiFi (2.4 or 5GHz) and Ethernet (RJ45)
    • MotiConnect App
    • Connect 5 WiFi devices at one time
    • Connect office/clinic/business network through RJ45 port connection


      MICROSCOPE WARRANTY
