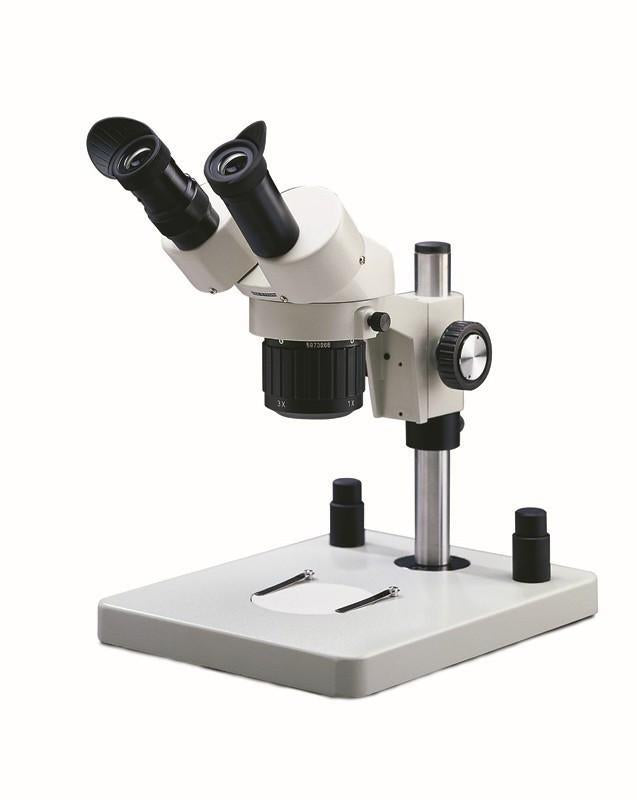

National 410-1107-10 Stereo Microscope On Post Stand

National

$382.00  $425.00

Request Quote

Precise optical alignment assures a three-dimensional, upright, unreversed image that is unsurpassed for everything from dissecting work to examining circuit boards. This model is a real workhorse for education or industry. Platform stand has a large work space and provides greater stability, which are important particularly for photographic or video applications.



MAGNIFICATION

  • 2x & 4x

OPTICAL SYSTEM

  • Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm. Accepts optional #965-400-05 or #965-400-10 eyepiece reticle.
  • Viewing head rotates 360°, locks in place by tightening set screw.
  • Paired objectives are parfocalled, parcentered, and achromatic.
  • Magnification changed by rotating objective turret 90° to positive click stops.



ILLUMINATION

  • No built-in illumination is included with this model.



FOCUSING

  • Rack and pinion focusing with slip clutch to prevent damage to mechanism.
  • Tension adjustment eliminates focus “drift”.



STAND

  • Professional, all-metal stand.
  • 82mm reversible black/white plastic contrast stage plate.
  • Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects.
  • Total stand height: 246mm (9.8 in.). Net weight: 2.8 kgs (6.1 lbs).
  • Base width: 220mm (8.7 in.). Base depth: 280mm (11 in.)
  • Vertical post length: 220mm (8.8 in.). (O.D. 25mm)



PACKING

  • Head, focusing block and platform stand are in separate molded styrofoam containers with vinyl dustcover and eyeshields.
  • Master carton pack 1 each: Ship wt. 7.7 kgs (17lbs), Dimensions 500x375x375mm (22x15x15 in.)
