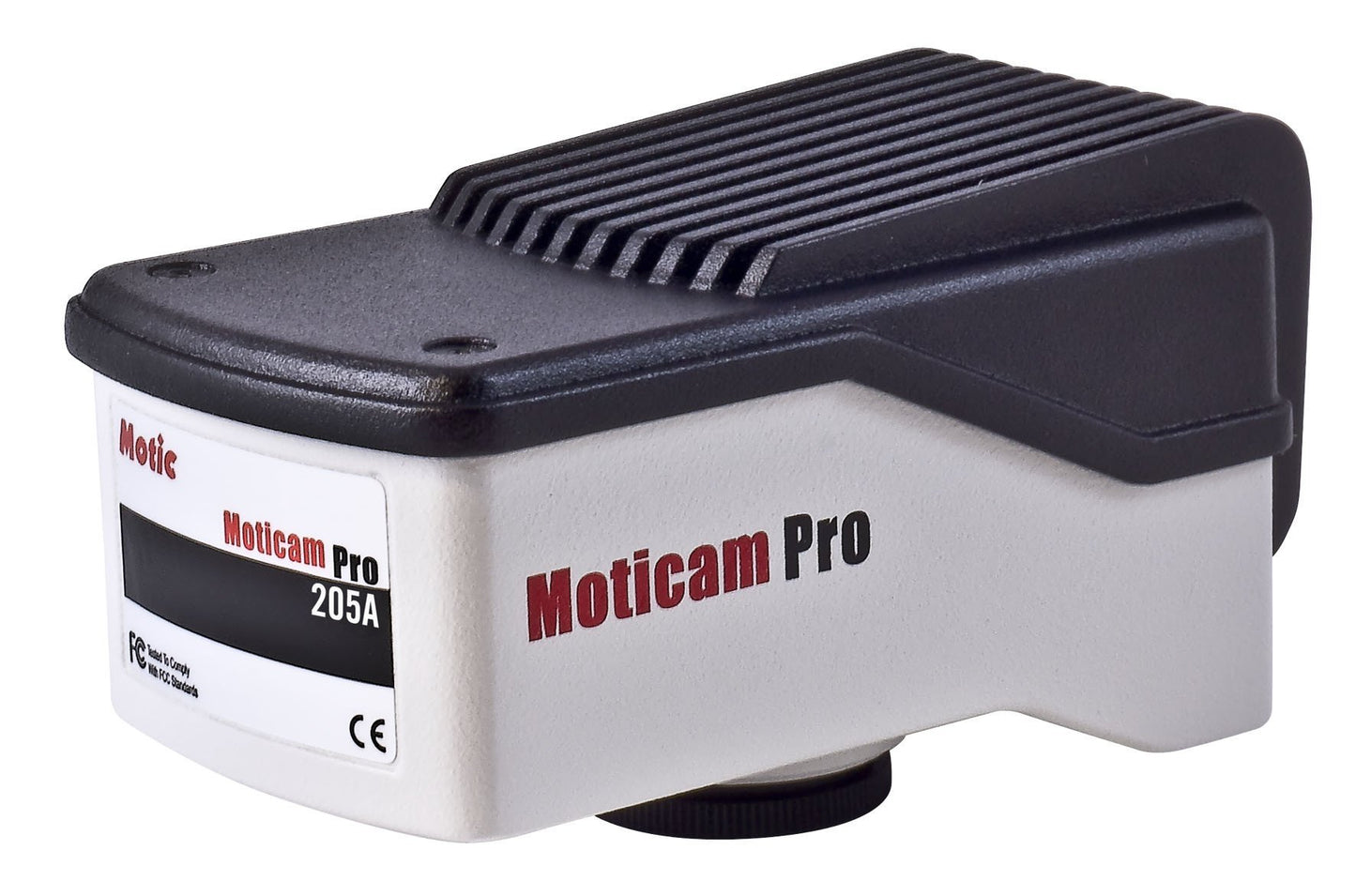

Moticam Pro 205A Microscope Camera
- SKU: 1100600120341
$2,400.00
$2,678.00
For many years, our unique "From Box to Pics" approach has given a wide range of markets unprecedented access to affordable Digital Microscopy. Our new Moticam Pro series take this approach to the CCD scientific level by offering as much as possible in a single box making this series our most powerful and flexible camera series yet.
- C/CS mount scientific camera
- ICX252AQ 1/1,8” CCD Color
- 3.2MP - 2080x1542 pixels with USB2.0 output
- On-board 4-frame image buffer
- TTL port
- Pixel size 3,45 x 3,45
- Moticam Pro software CD (Motic Images Plus 2.0, TWAIN, SDK)
- Motic USB2 driver
- Motic Images Advanced 3.2 with dongle and calibration slide
| Sensor | |
| Sensor Type | CCD |
| Sensor Size | 1/1.8 Inch |
| Sensor Details | Sony ICX252AQ |
| Color/Monochrome | Color |
| Pixel Pitch | 3.45 µm |
| Scan Mode | Interleave |
| Peltier Cooling | Yes |
| Cooling System | Peltier Cooling -10°C temperature below ambient |
| Shutter | Electronic, Global Shutter, Supports External Trigger |
| Camera | |
| Camera Mount | C-Mount |
| Resolution | 3 Megapixel, 2080x1542 pixels |
| Camera Interface | USB 2.0 |
| White Balance | Area-of-Interest, Automatic, Manual, Spot |
| Black Balance | Manual, Spot |
| Software Included | Motic Images Advanced 3.2, Includes SDK |
| Driver API Compatibility | DirectX, TWAIN |
| Camera Power Source | External Power Supply |
| Exposure Control | Area-of-Interest, Automatic, Manual, Spot, Vignetting Correction |
| Supported Operating Systems | Macintosh OSX 10.4+, Windows XP, Windows Vista, Windows 7 |
| System Requirements | 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port |
For many years, our unique "From Box to Pics" approach has given a wide range of markets unprecedented access to affordable Digital Microscopy. Our new Moticam Pro series take this approach to the CCD scientific level by offering as much as possible in a single box making this series our most powerful and flexible camera series yet.
- C/CS mount scientific camera
- ICX252AQ 1/1,8” CCD Color
- 3.2MP - 2080x1542 pixels with USB2.0 output
- On-board 4-frame image buffer
- TTL port
- Pixel size 3,45 x 3,45
- Moticam Pro software CD (Motic Images Plus 2.0, TWAIN, SDK)
- Motic USB2 driver
- Motic Images Advanced 3.2 with dongle and calibration slide
| Sensor | |
| Sensor Type | CCD |
| Sensor Size | 1/1.8 Inch |
| Sensor Details | Sony ICX252AQ |
| Color/Monochrome | Color |
| Pixel Pitch | 3.45 µm |
| Scan Mode | Interleave |
| Peltier Cooling | Yes |
| Cooling System | Peltier Cooling -10°C temperature below ambient |
| Shutter | Electronic, Global Shutter, Supports External Trigger |
| Camera | |
| Camera Mount | C-Mount |
| Resolution | 3 Megapixel, 2080x1542 pixels |
| Camera Interface | USB 2.0 |
| White Balance | Area-of-Interest, Automatic, Manual, Spot |
| Black Balance | Manual, Spot |
| Software Included | Motic Images Advanced 3.2, Includes SDK |
| Driver API Compatibility | DirectX, TWAIN |
| Camera Power Source | External Power Supply |
| Exposure Control | Area-of-Interest, Automatic, Manual, Spot, Vignetting Correction |
| Supported Operating Systems | Macintosh OSX 10.4+, Windows XP, Windows Vista, Windows 7 |
| System Requirements | 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port |
