Moticam 5+ Digital Microscope Camera
Moticam 5+ Digital Microscope Camera

Moticam 5+ Digital Microscope Camera

  • SKU: D-MOTICAM5+
$764.00 $899.00
Request Quote

The Moticam 5+ digital microscope camera outputs via USB 3.0 cable to your computer of choice - Windows or MAC. This 5 mega pixel camera comes with Motic Images Plus which allows you to view, capture, enhance, annotate, measure, and much more.

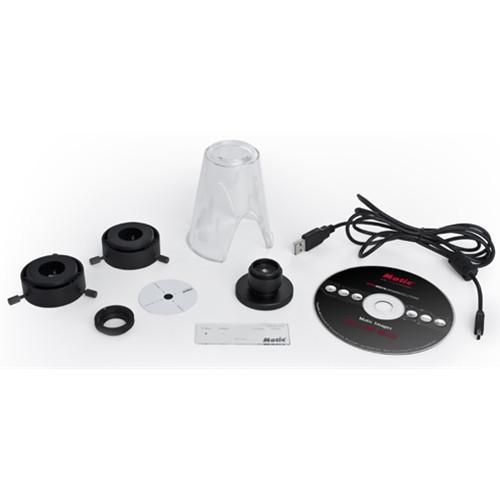

Included Accessories:

  • Focusable Lens
  • CS Ring Adapter
  • Motic 4-dot Calibration Slide
  • USB 3.0 Cable
  • Two Eyepieces adaptors to fit eyepiece O.D.’s of 30mm - 38mm.
  • Macro Tube
  • Motic Image Plus 3.0 for PC and MAC
  • TWAIN and Direct Show Compatible
Specifications:
Sensor Type: CMOS
Sensor Size: 1/2.5"
Resolution: 5 MP
Live Display Mode (through USB): 2592 x 1944 @ 14 FPS   -  1296 x 972 @ 30 FPS  -  648 x 486 @ 50 FPS
Pixel Size: 2.2μm x 2.2μm
Scan Mode: Progressive
Data Transfer: USB3.0
Max. Signal to Noise Ratio: 38.1dB
Dynamic Range: 70.1dB
Sensitivity: 1,4V/Lux-sec (550nm)
Slot: SD Card (max 32Gb)
Support Device: Twain, SDK and Direct Show Driver
Supported OS: Microsoft Windows XP/Vista/7/8 and MAC OSX
Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB
Lens Mount: C-Mount
Focusable Lens: 12mm
Package Includes: CS Ring Adaptor, Focusable Lens, 30mm and 38mm Eyepiece Adapters, USB 3.0 Cable, Calibration Slide, Macro Tube, Universal Power Supply, Motic Images Plus 3.0 for PC and OSX

The Moticam 5+ digital microscope camera outputs via USB 3.0 cable to your computer of choice - Windows or MAC. This 5 mega pixel camera comes with Motic Images Plus which allows you to view, capture, enhance, annotate, measure, and much more.

Included Accessories:

  • Focusable Lens
  • CS Ring Adapter
  • Motic 4-dot Calibration Slide
  • USB 3.0 Cable
  • Two Eyepieces adaptors to fit eyepiece O.D.’s of 30mm - 38mm.
  • Macro Tube
  • Motic Image Plus 3.0 for PC and MAC
  • TWAIN and Direct Show Compatible
Specifications:
Sensor Type: CMOS
Sensor Size: 1/2.5"
Resolution: 5 MP
Live Display Mode (through USB): 2592 x 1944 @ 14 FPS   -  1296 x 972 @ 30 FPS  -  648 x 486 @ 50 FPS
Pixel Size: 2.2μm x 2.2μm
Scan Mode: Progressive
Data Transfer: USB3.0
Max. Signal to Noise Ratio: 38.1dB
Dynamic Range: 70.1dB
Sensitivity: 1,4V/Lux-sec (550nm)
Slot: SD Card (max 32Gb)
Support Device: Twain, SDK and Direct Show Driver
Supported OS: Microsoft Windows XP/Vista/7/8 and MAC OSX
Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB
Lens Mount: C-Mount
Focusable Lens: 12mm
Package Includes: CS Ring Adaptor, Focusable Lens, 30mm and 38mm Eyepiece Adapters, USB 3.0 Cable, Calibration Slide, Macro Tube, Universal Power Supply, Motic Images Plus 3.0 for PC and OSX

Moticam 5+ Manual
